CAB CONTROL SYSTEM DISCS® 2.0
Overview

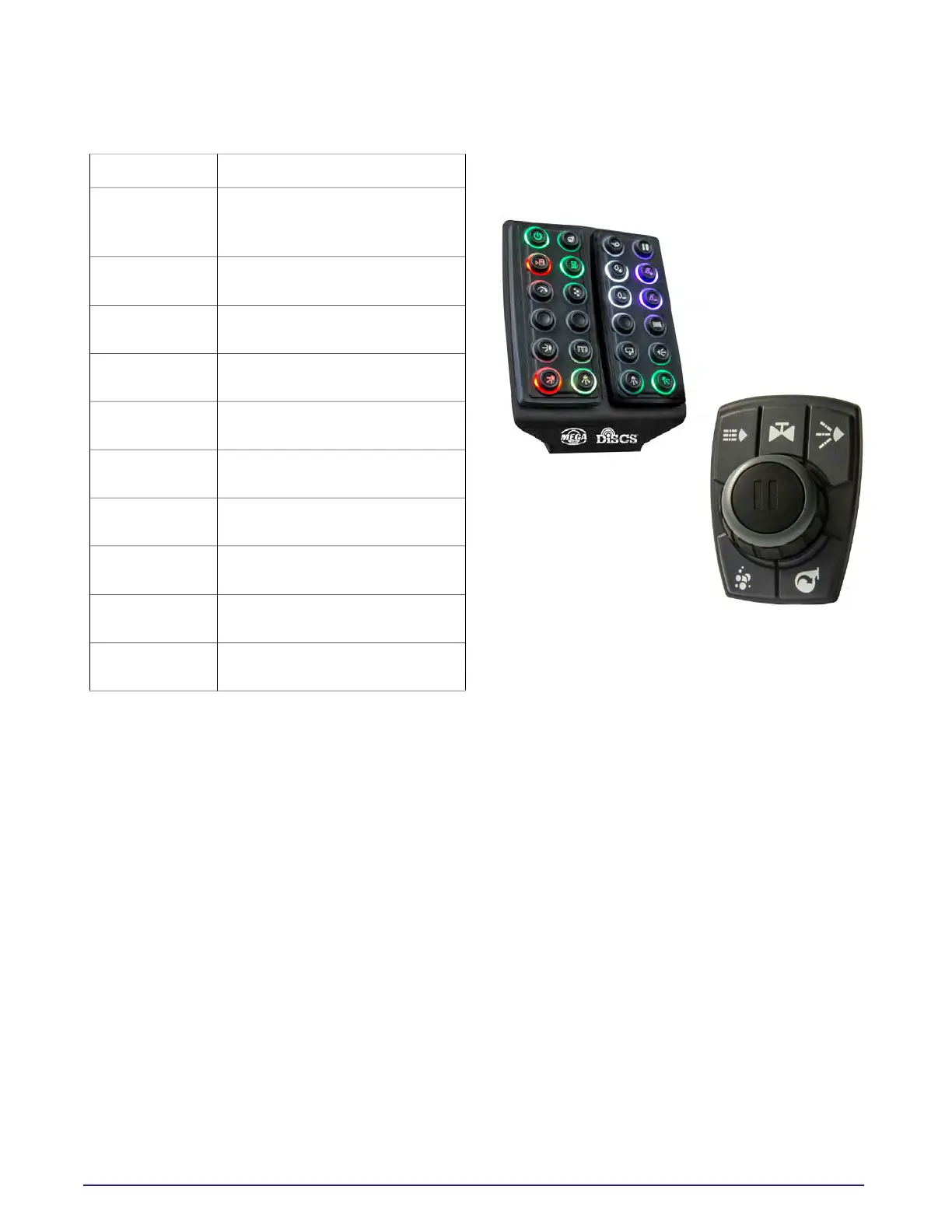

The DiSCS® compact switch pad is based on CAN
Bus* protocol and is water and dust resistant.
Switch pad LEDs light up in RGB colors which
indicate different watering patterns and controls.
• Simple and rugged construction for heavy-
duty operations
• Adjustable switch pad brightness
• Fully adjustable RAM® mount (where
applicable)
• In-cab water level indicating system
• Total system pause function
• Work light and auxiliary controls
LT BUMPER Opens
or closes left front bumper spray
head.
LT VSS Opens or closes left vertical side
spray head.
LT REAR Opens or closes left rear spray
head.
LT CENTER Opens or closes left center rear
spray head.
RT CENTER Opens or closes right center rear
spray head.
RT REAR Opens or closes right center rear
spray head.
RT VSS Opens or closes right vertical
side spray head.
RT BUMPER Opens or closes right front
bumper spray head.
AUX 1 Reserved for specialized
functions.
AUX 2 Reserved for specialized
functions.
Control Function
