MAC/MTT-OPS-1
26 FEB 2019
SECTION 2
System Description
2-6

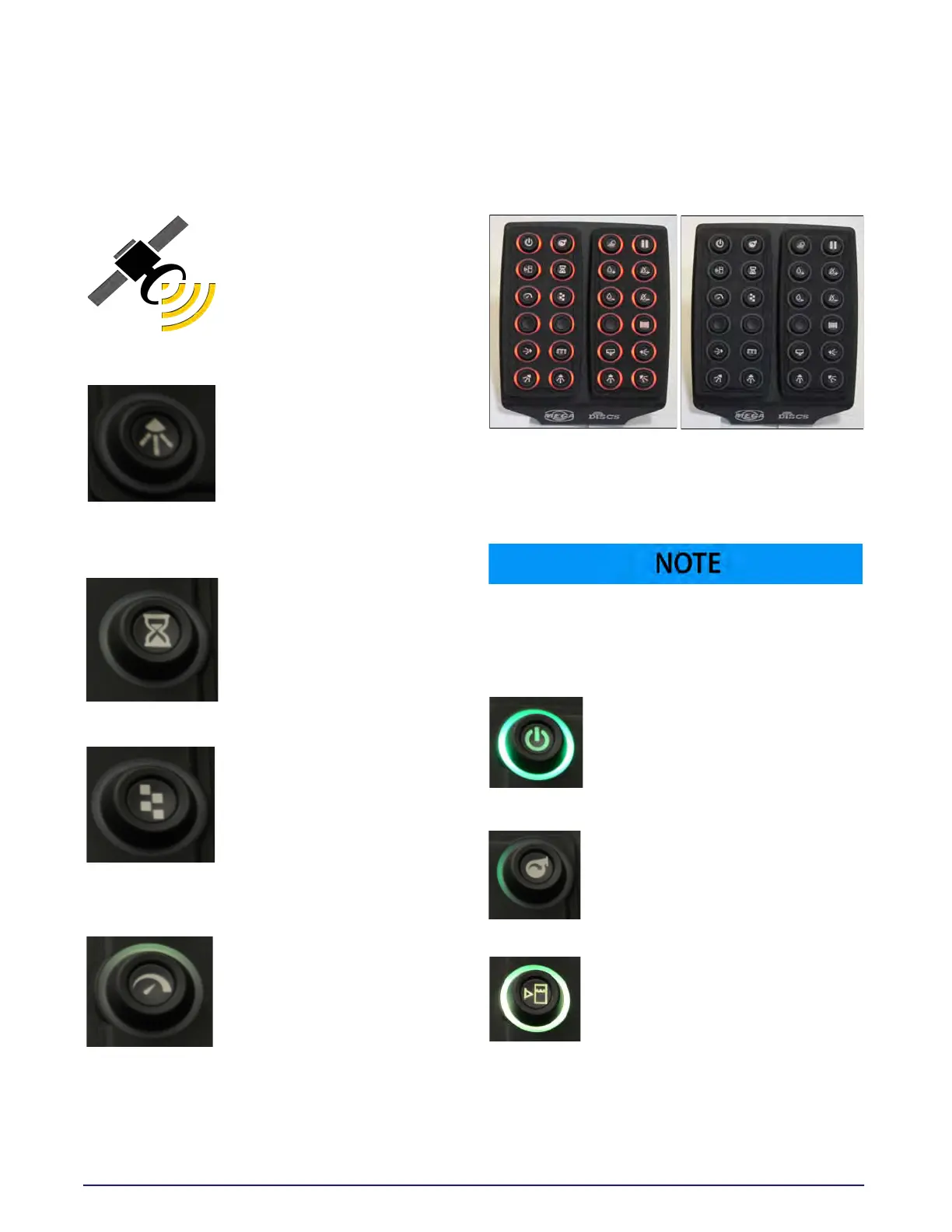

Features
GPS
Distance and speed based
operation modes utilize a GPS
based speed signal to
automatically stop/start water
flow as the vehicle moves.
Manual Spraying
With manual spraying the
operator can select each spray
head independently and can
be used without GPS
connection.
Time Based Spraying (Banding)
Operator can cycle on/off
periods of spray using selected
time intervals.
Distance Based Spraying (Checkerboard)
Alternating intermittent
watering patterns reduces
water consumption and
ensures one steering tire and
one drive tire remain on a dry
surface.
Speed Based Spraying (Continuous Rate)
Sequence-based intermittent
spray system operation uses
PWM (Pulse Width Modulation)
to vary the amount of water
flow while maintaining a
continuous rate of water
application, dependent on speed of travel.
Operation
Start-Up
When the prime mover has the key switch first
turned ON, the system performs a self test and will
flash all of the switch pad lights RED four (4) times
and turn OFF.
If the switch pads have any buttons that do not
light or the flash sequence is different, contact
your service department for repair.
Button Identification
System Power
Turns system power ON/OFF
•Standby mode - Light OFF
•System ON - Green Light
Water Pump
Turns water pump ON/OFF
•Standby mode - Light OFF
•Pump ON - Green Light
•Fault - Flash Red/Yellow
Water Level
Indicates tank water level
•Greater than 90% - Flash Green
•90% to 50% - Steady Green
•50% to 25% - Steady Yellow
•25% to 5% - Steady Red
•Less than 5% - Flash Red
•Fault - Flash Red/Yellow
