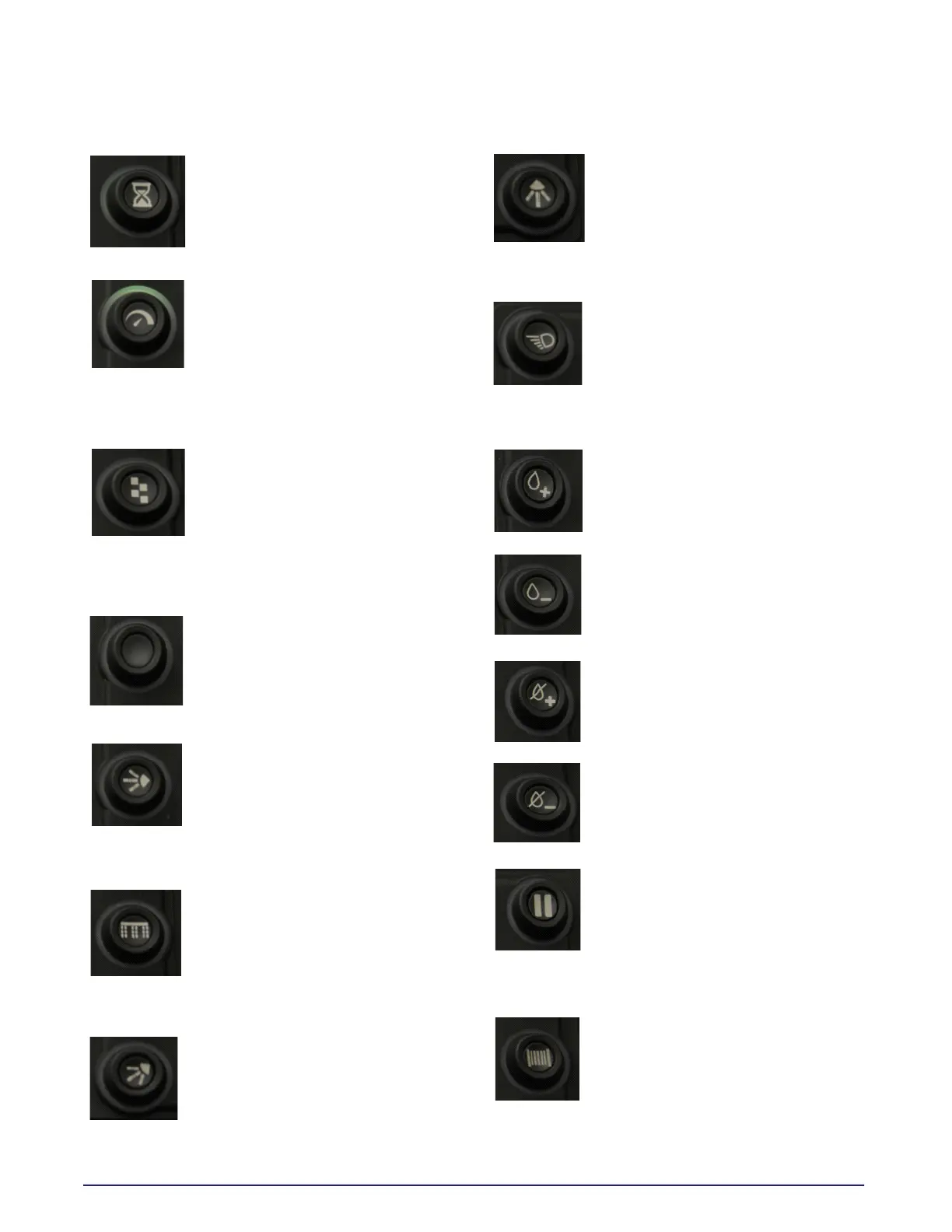

Time Based Programming
Activate the time based program
mode
•Standby mode - Light OFF
•Timer Active - Green Light
Speed Based Programming
Activates speed based program
mode
•Standby mode - Light OFF
•Programming ON - Green Light
• No GPS lock - Alternate Red/Green
•Error - Alternate Yellow/Blue
Distance Based Programming
Activates distance based program
mode
•Standby mode - Light OFF
•Program ON - Green Light
•No GPS lock - Alternate Red/Green
•Error - Alternate Yellow/Blue
Auxiliary Function
Reserved for optional equipment
•Standby mode - Light OFF
•Function ON - Green Light
Left Vertical Spray Head (LT VSS)
Turns left vertical spray head ON/
OFF
•Standby mode - Light OFF
•Open - Green Light
Dump Bar
Turns dump bar ON/OFF
•Standby mode - Light OFF
•Valve open - Green Light
•Valve closed during time based
program - Blue Light
Left Rear Spray Head (LT R)
Turns left rear spray head ON/OFF
•Standby mode - Light OFF
•Valve open - Green Light
•Valve closed during time based
program - Blue Light
Left Center Spray Head (LT RC)
Turns left center spray head ON/OFF
•Standby mode - Light OFF
•Valve open - Green Light
•Valve closed during time based
program - Blue Light
Rear Facing Work Lights
Turns the MEGA supplied work lights
ON/OFF and changes the switch light
brightness
•Standby mode - Light OFF
•Light ON - Green Light
WET +
Adjusts spray head Time, Speed, and
Distance based programming
•Standby mode - Light OFF
WET -
Adjusts spray head Time, Speed, and
Distance based programming
•Standby mode - Light OFF
DRY +
Adjusts spray head Time, Speed, and
Distance based programming
•Standby mode - Light OFF
DRY -
Adjusts spray head Time, Speed, and
Distance based programming
Standby mode - Light OFF
Pause
Pauses all active spray functions
•Standby mode - Light OFF
•All pause - Flashing Yellow Light
•All active functions will pause (CLOSE)
and switch lights will turn Steady Yellow
Hose Reel
Allows continuous use of hose reel
•Standby mode - Light OFF
•Function active - Flashing Yellow Light
•All other active functions will pause
(CLOSE) and switch lights turn Yellow
•Overrides the timeout function
