Mega MAC - Page 19

MAC/MTT-OPS-1
26 FEB 2019
SECTION 2
System Description
2-8

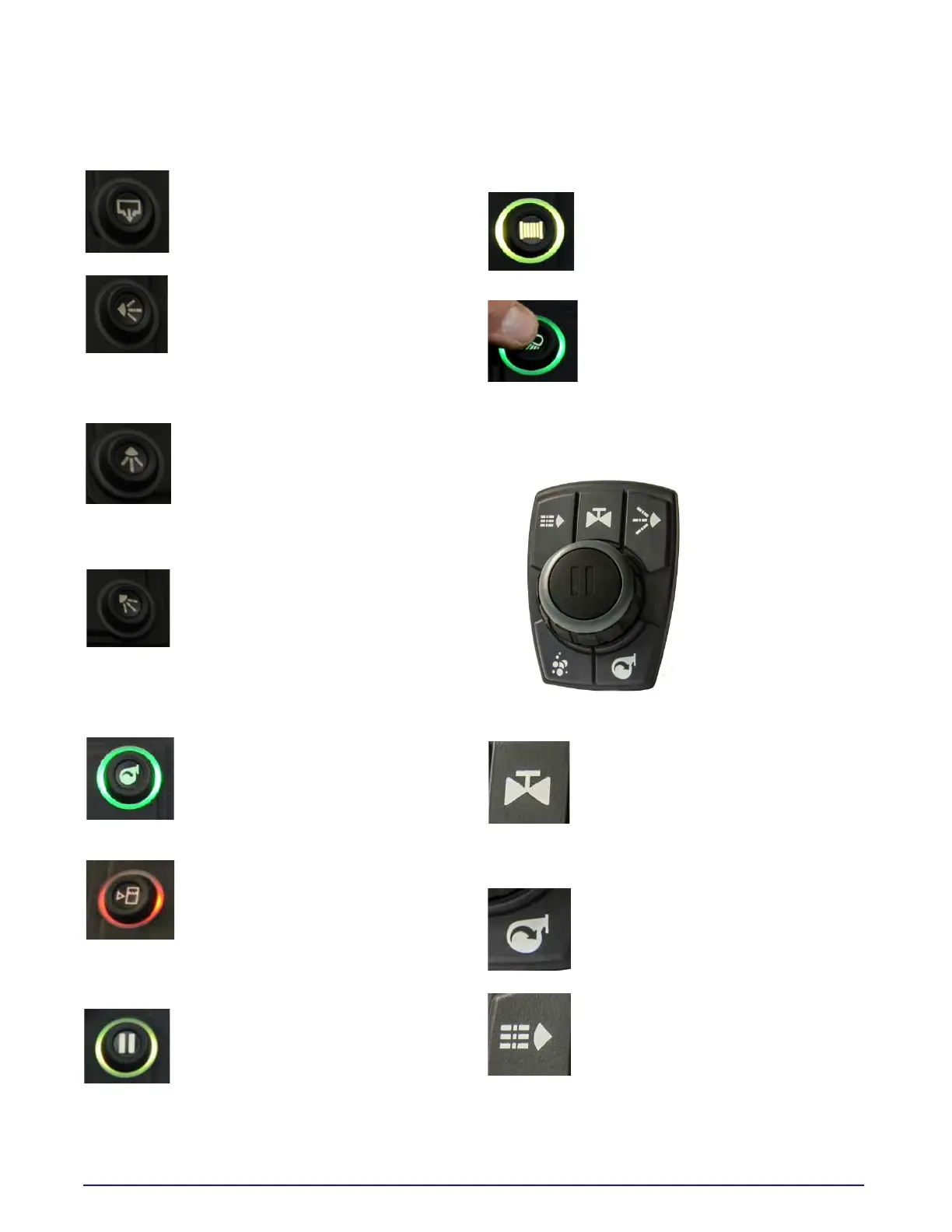

Quick Drain
Turns quick drain ON/OFF
•Standby mode - Light OFF
•Open - Green Light
Right Vertical Side Spray Head (RT
VSS)
Turns right vertical spray head ON/
OFF
•Standby mode - Light OFF
• Open - Green Light
Right Center Spray Head (RT RC)
Turns right center spray head ON/OFF
•Standby mode - Light OFF
•Valve open - Green Light
•Valve closed during time based
program -Blue Light
Right Rear Spray Head (RT R)
Turns right rear spray head ON/OFF
•Standby mode - Light OFF
•Valve open - Green Light
•Valve closed during time based
program -Blue Light
Water Pump Time Out Function
After 100 seconds of NO-FLOW
conditions (no active discharge
function) the water pump will
automatically turn OFF (Time out).
Pump Protection Feature
If water level sensor reads water level
below 5% for more than 5 seconds,
water level button light will flash Red
and automatically shut off water
pump.
Pause Fault Indication
Pressing any function while pause is
active will result in a Fault, indicated
by Pause and Function buttons
flashing Blue/Yellow three (3) times.
Hose Reel Fault Indication
Pressing any function while pause is
active will result in a Fault, indicated
by Pause and Function buttons
flashing Blue/Yellow three (3) times.
Control Pad Switch Brightness
Press and hold Work Light button for
two (2) seconds (work lights will turn
off ). The brightness level will cycle
down in 25% intervals for every two
(2) seconds the button is held. 100%
>75% > 50% > 25% > 100%
Water Cannon Joystick
The water cannon
joystick gives the
operator complete
control of the
water cannon
system. The water
cannon system has
options of FAN/
FOG adjustable
nozzles, as well as
fire suppressing
foam eduction.
Water Cannon Butterfly Valve
Turns butterfly valve ON/OFF. Press
ON, light under joystick will
illuminate at 100% brightness. Press
OFF light under joystick will reduce to
20% brightness.
Water Pump
Turns water pump ON/OFF
Press ON/OFF
Adjustable Nozzle Stream
Moves nozzle to STREAM position
Press and hold to adjust nozzle
