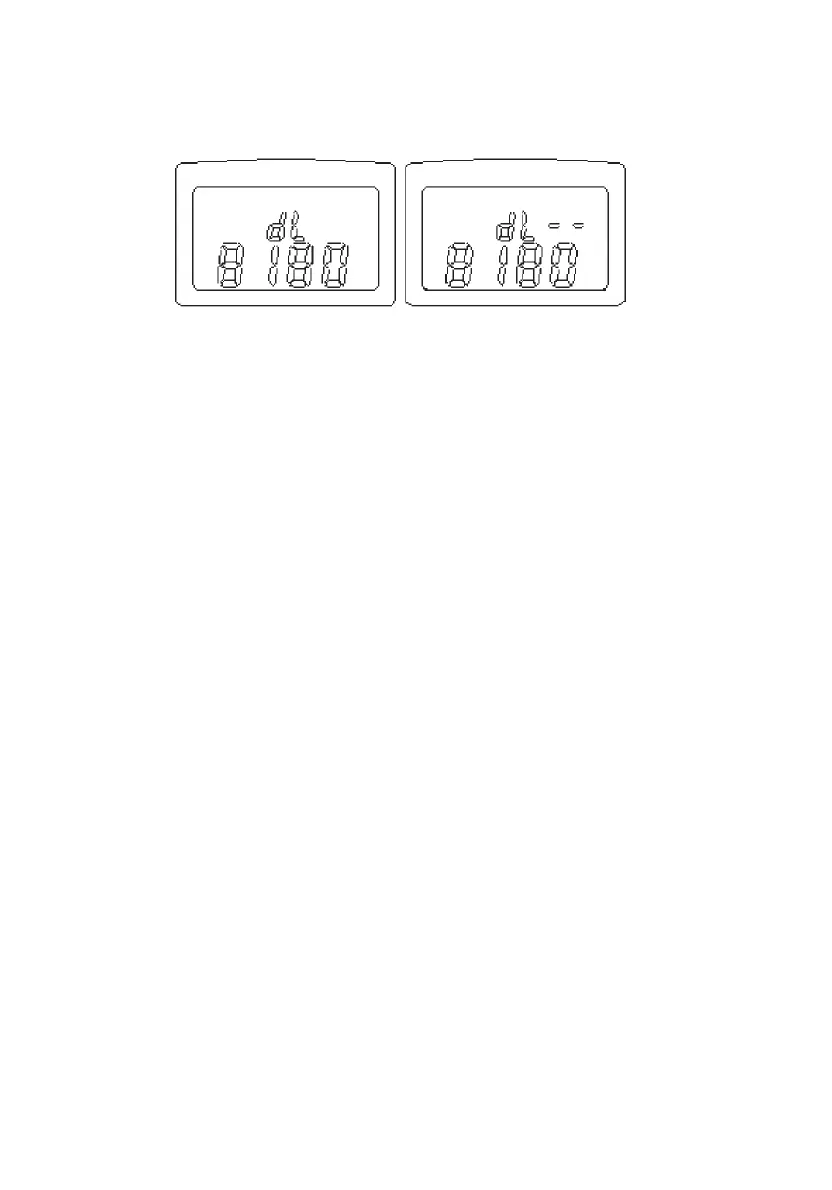

6. To exit this function, press the FUNC button several times until the upper row LCD shows no
symbols.
NOTE: The unit first sends the sampling time, then the rest of the data stored in memory is sent to
the PC.
Format of Down Loaded Data (DET20C only)
The data is down loaded to the PC in ASCII format. In addition to data readings information includes
status of jaws open, noise, HI alarm, LO alarm, and low battery. Below is a list of abbreviations for
each condition and an example of data down loaded to the PC:
List of abbreviations:
Abbreviation Abbreviation Abbreviation
OPEN Jaws open NS Noise HI Hi alarm
LO Low alarm HD Data Hold LB Battery low
Example of down loaded data:
0001 (sampling time)
10.00 ohm
10.02 ohm
5.200 ohm LO
1.000 ohm NS
1.500 mA
9.00 A
NOTE: Each record is ended by <CR> and <LF>. The corresponding ASCII codes for <CR> and <LF>
are 13 and 10.
Reading the Data Stored in Memory
This function allows users to read the data stored directly from the instrument display.
1. Press the FUNC button until the symbol "NO." is shown on the LCD. The current record number is
shown on the upper row of the LCD, the data is shown in the lower row of LCD.
2. Press the
▲ button to read the next data record.
3. Holding down the
▲ button accelerates the rate of increment. The record number will roll over to
1 when the last record is reached.
9
