Operating Procedure
AVTM24-1J REV A April 2006
25
3. Using Kelvin Clip leads.

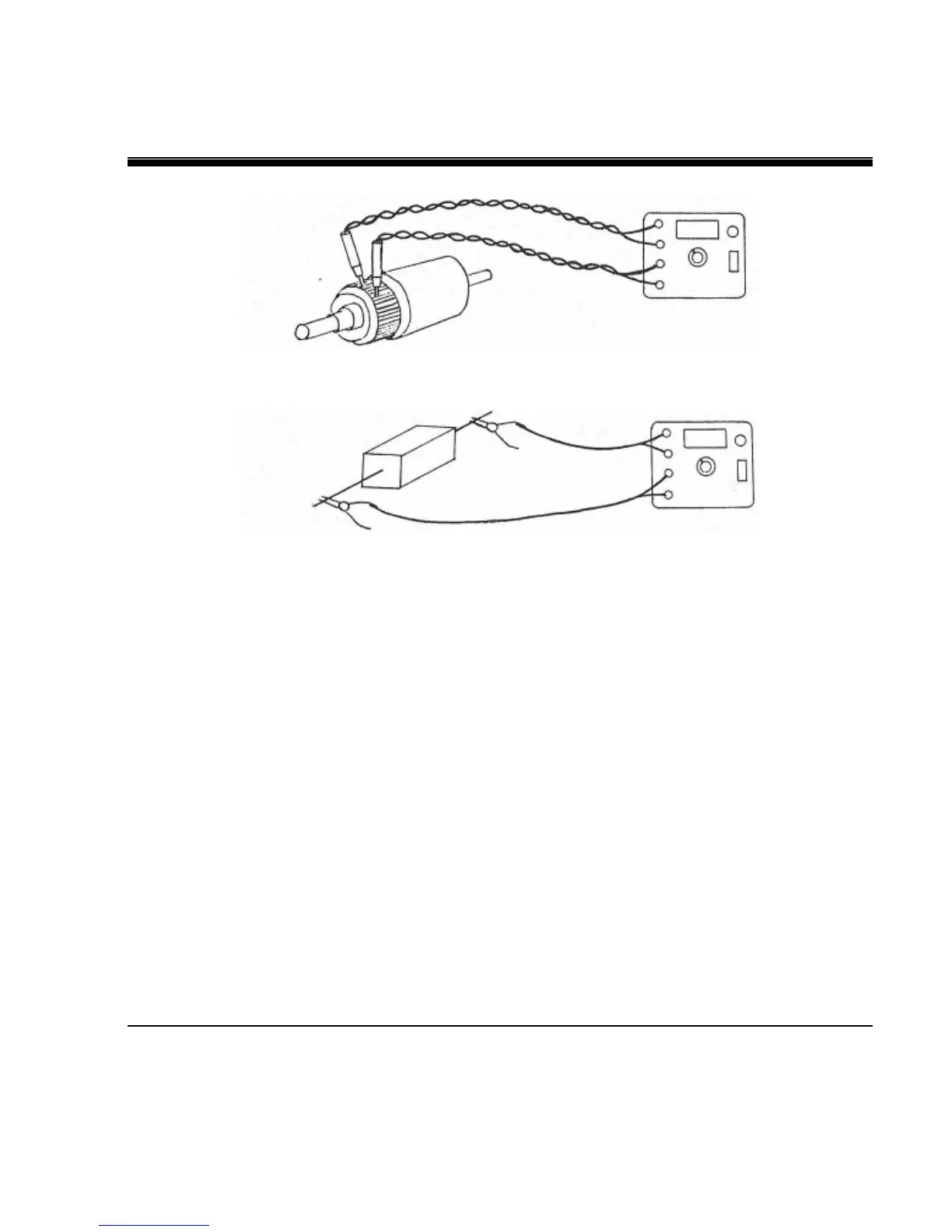

Figure 4: Typical Connections to a Test Sample.
4. Charging Batteries
To charge the batteries, remove the jumper plug from J2
and connect the output lead of the battery charger to J2. A
pilot light on the charger will indicate when it is connected
to an energized ac power line. Charging time for fully
discharged batteries is 14 hours or overnight. The
instrument may be used continuously (except on the 10A
range, where battery life limitations apply) while its
batteries are charging.
