Scroll down the PowerDB form until you see a table with cyan
filled headers. RIGHT CLICK once on one of the cyan
coloured areas to activate the MIT remote control application.
The cyan filled cells represent three phases A, B and C. Right
clicking on a phase will open up the appropriate application.
Import/Live Stream Control Application
When using a MIT the Import/Live Stream Control Application
will launch.
Import/Live Stream Control application enables capture of
live streaming data directly by activating the Start New Live
Streaming function. Results are recorded once a second for
the duration of the test .
Other functions include:
 Save Selected To Form – this soft key saves a
selected test result in top right hand menu to the
current form in PowerDB Lite. Typically three tables are
available in the PowerDB form representing three
phases named A, B and C. Tests listed in the
Import/Live Stream Control application listed under
Test Info can be saved in any form by exiting the
logger (Go Back To Form), right clicking the require
phase in the form and selecting to Save Selected To
Form from the logger
 Copy Results to Clipboard function facilitates a copy
of all data to Excel and other popular software
 Delete Selected Data – removes test data from the
Test Info section
 Start Importing Results – download results saved on
the instrument

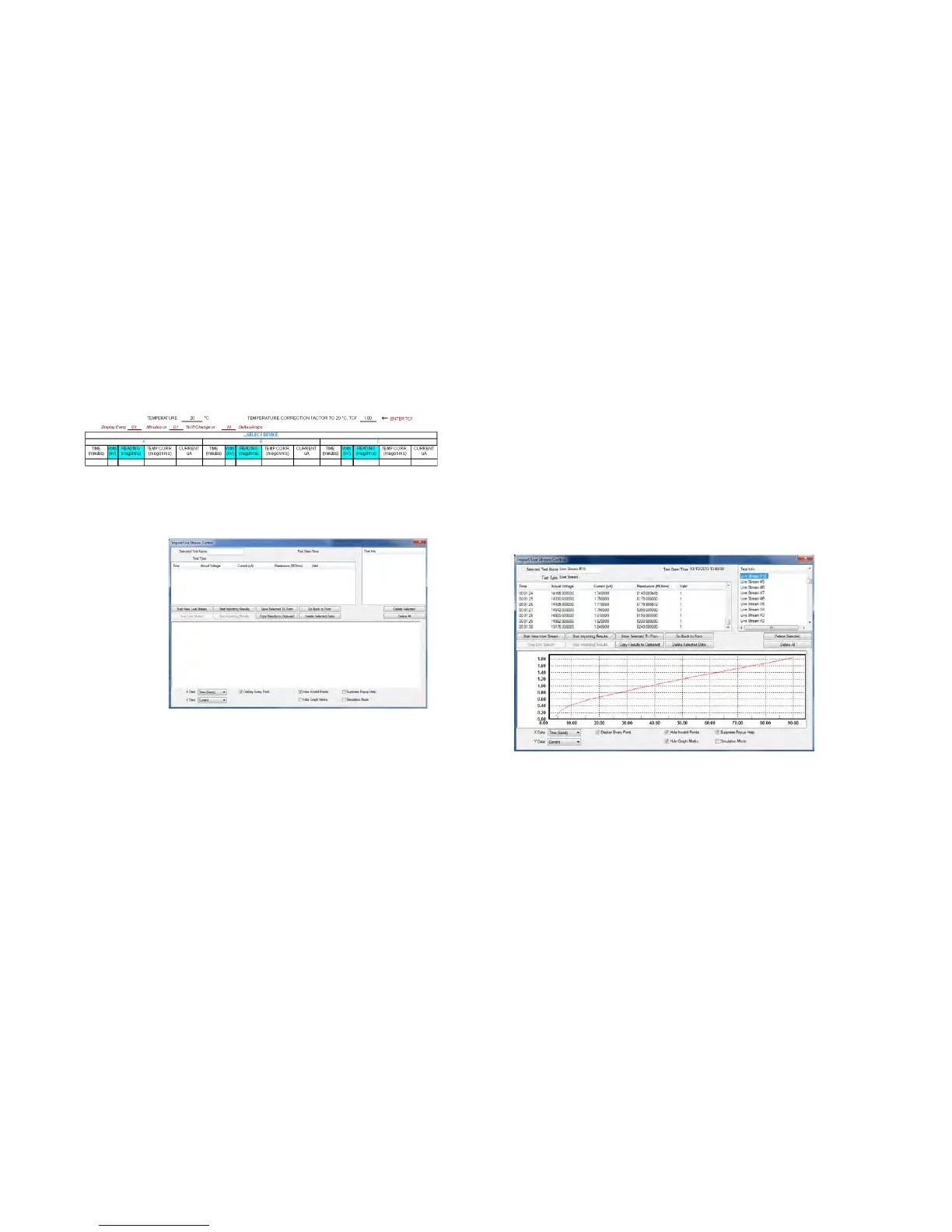

Sample Import/Live Stream Control application after a test.

Megger MIT1025 Specifications

General

Display	LCD
Safety Rating	CAT IV 600 V
Short Circuit Current	5 mA
Interface	USB
Operating Temperature	-20°C to +50°C
Storage Temperature	-25°C to +65°C
Test Voltage	50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V
Power Supply	Rechargeable battery
Accuracy	±5% up to 1 TΩ
Data Storage	1000 test results
Test Current	1 mA
Power Supply (Alternative)	Mains Power
