Fail Handling

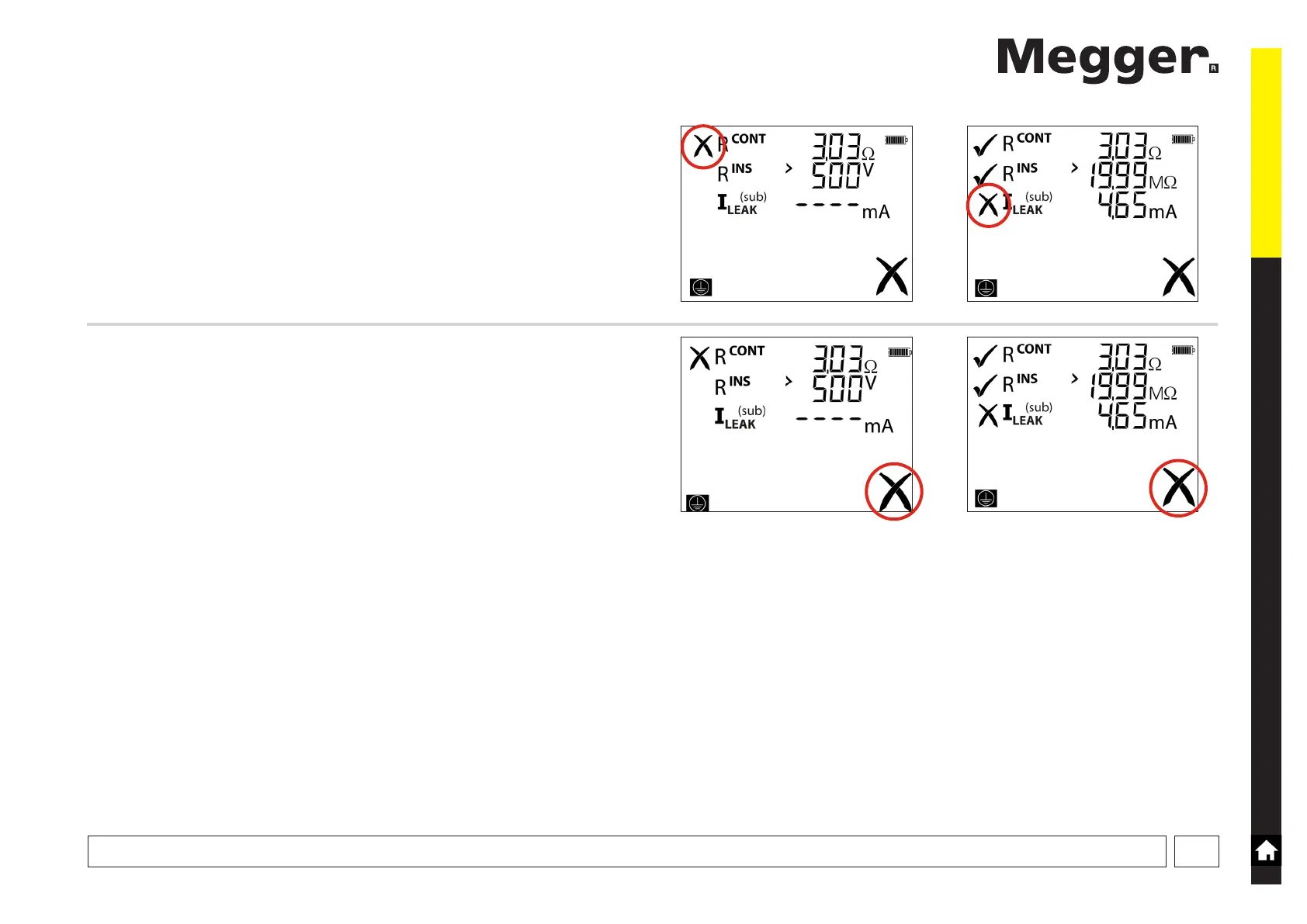

Individual test fail indicated by a small cross:

ii)

Overall FAIL indicated by a large cross:

NOTE : Once an appliance has failed a test, further testing of the test group sequence is prevented for safety reasons, except for the extension lead testing
