Megger PAT120 Series User Manual

www.megger.com
6

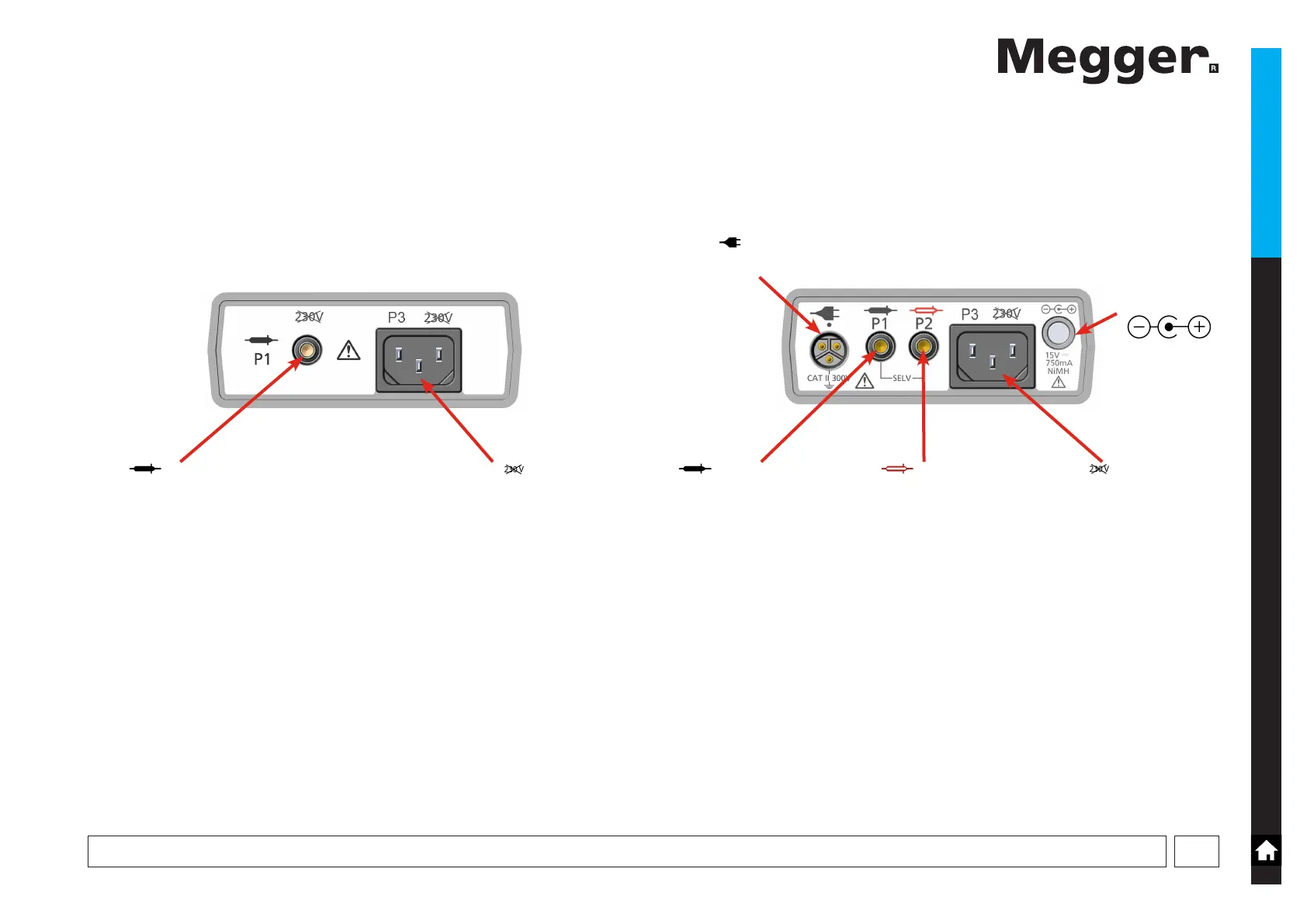

Symbols used on the connection panel
PAT120 connector panel PAT150 connector panel
G Do NOT connect P1 and P3 sockets to hazardous live voltages
P1
Continuity (Bond),
Insulation and Touch
leakage probe
connection
P3
IEC power cord
and extension lead
adaptor socket.
Mains I/P
Used for testing
that require
mains power to
be applied to the
equipment under
test, such as:
- PRCD testing
- Mains powered
earth leakage
tests
P1
Continuity (Bond),
Insulation and Touch
leakage probe connection
P2
Used with P1 for testing
Separated Extra Low
Voltages and Mains
voltages
P3
IEC power cord and
extension lead adaptor
socket.
Do NOT connect to
230 Vac
Battery charging
socket
G Do NOT connect P1, P2 and P3 sockets to hazardous live voltages
