Megmeet MV600L Series User Manual

7

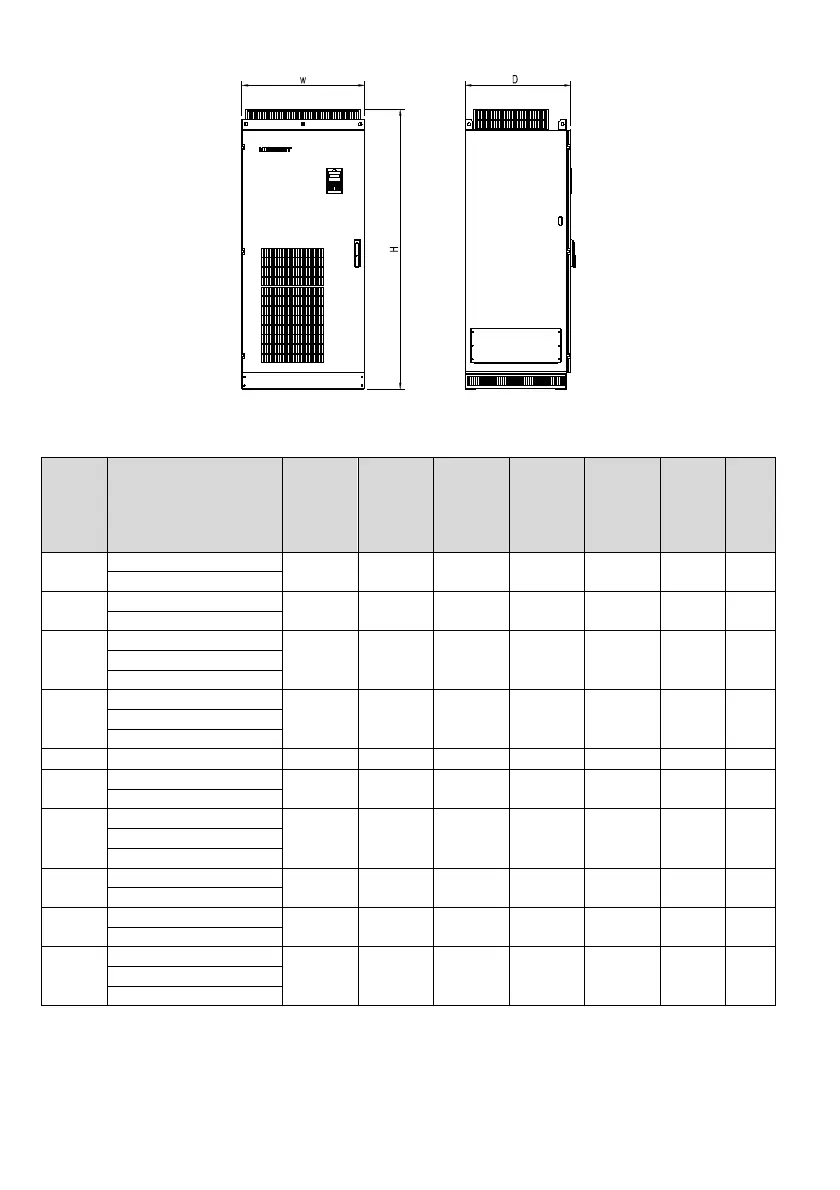

Fig. 1-2 Outline, mounting dimensions for products of 315kW-400kW
Table 1-3 Outline, mounting dimensions and gross weight
Enclosure
model
Drive model A(mm) B(mm) H(mm) W(mm) D(mm)
Diameter
of
mounting
aperture
(mm)
Gross
weight
±0.5
(kg)
R2
MV600L-4T2.2
115 218 229 126 174 5.5 4
MV600L-4T3.7
R3
MV600L-4T5.5
137 236 249 155 198 5.5 4
MV600L-4T7.5
R4
MV600L-4T11
186 314.5 330 209 206 6.5 9 MV600L-4T15
MV600L-4T18.5
R5
MV600L-4T22
220 437.5 451.5 284.5 213 6.5 19 MV600L-4T30
MV600L-4T37
R6 MV600L-4T45 270 549 570 335 267 7 41
R7
MV600L-4T55
270 579 600 335 292 7 49
MV600L-4T75
R8
MV600L-4T90
350 705 726.5 452 328.5 12 87 MV600L-4T110
MV600L-4T132
R9
MV600L-4T160
350 827.5 849.5 500 350 12 154
MV600L-4T200
R10
MV600L-4T220
500 932 956 700 361.5 14 216
MV600L-4T280
R11
MV600L-4T315
- - 1624 710 610 - 250 MV600L-4T355
MV600L-4T400
