Megmeet MV600L Series User Manual

8
Chapter 2 Wiring of Drive

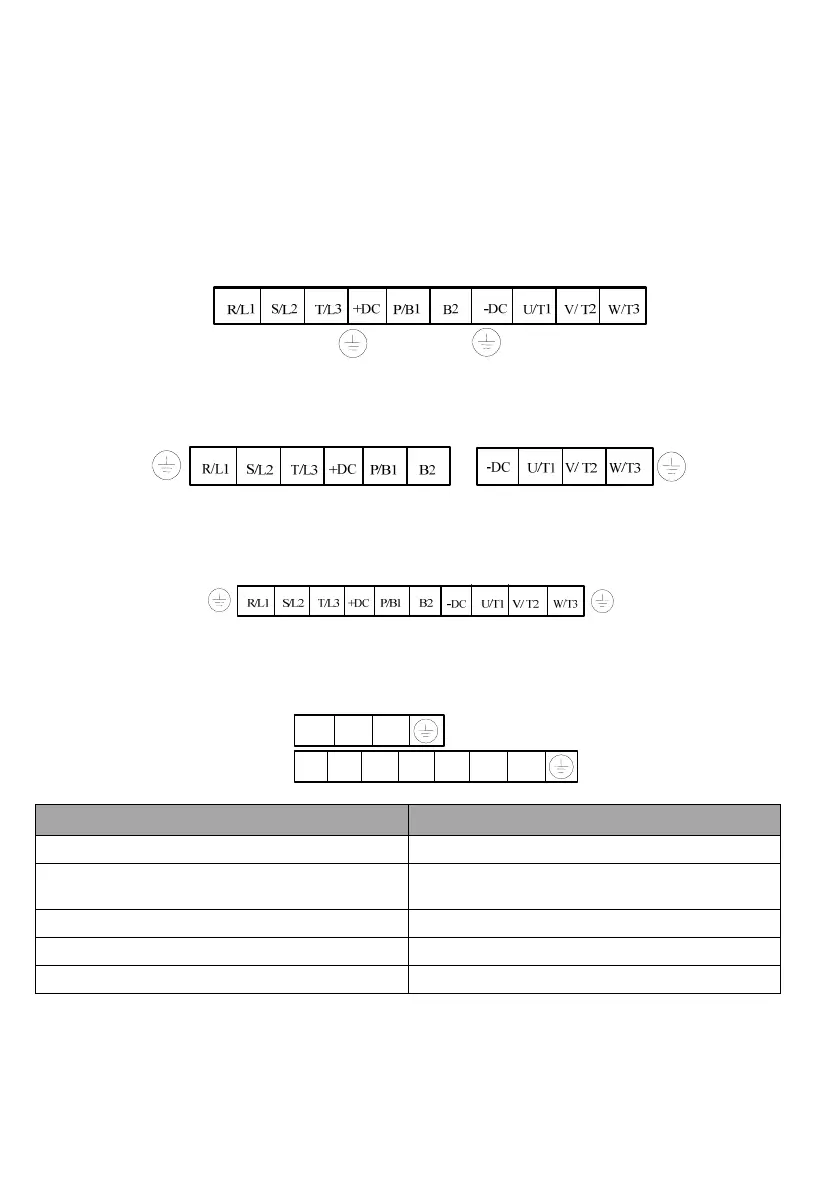

2.1 Wiring and configuration of main circuit terminals
Terminal type 1
Applicable models: MV600L-4T2.2~ MV600L-4T18.5
Terminal type 2
Applicable models: MV600L-4T22~ MV600L-4T37
Terminal type 3
Applicable models: MV600L-4T45
Terminal type 4
Applicable models: MV600L-4T55~ MV600L-4T75
R/L1 S/L2 T/L3
TOP
+DC W/T3P/B1 B2
-DC
U/T1 V/ T2
BOTTOM
Terminal (terminal type 1-4)
Function
R/L1, S/L2,T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1
Reserved for external DC reactor, connected with copper bus
upon delivery
P/B1, B2
Reserved for external braking resistor
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3
Three-phase AC output terminals
Terminal type 5
Applicable models: MV600L-4T90~ MV600L-4T280
