Megmeet MV600L Series User Manual

9

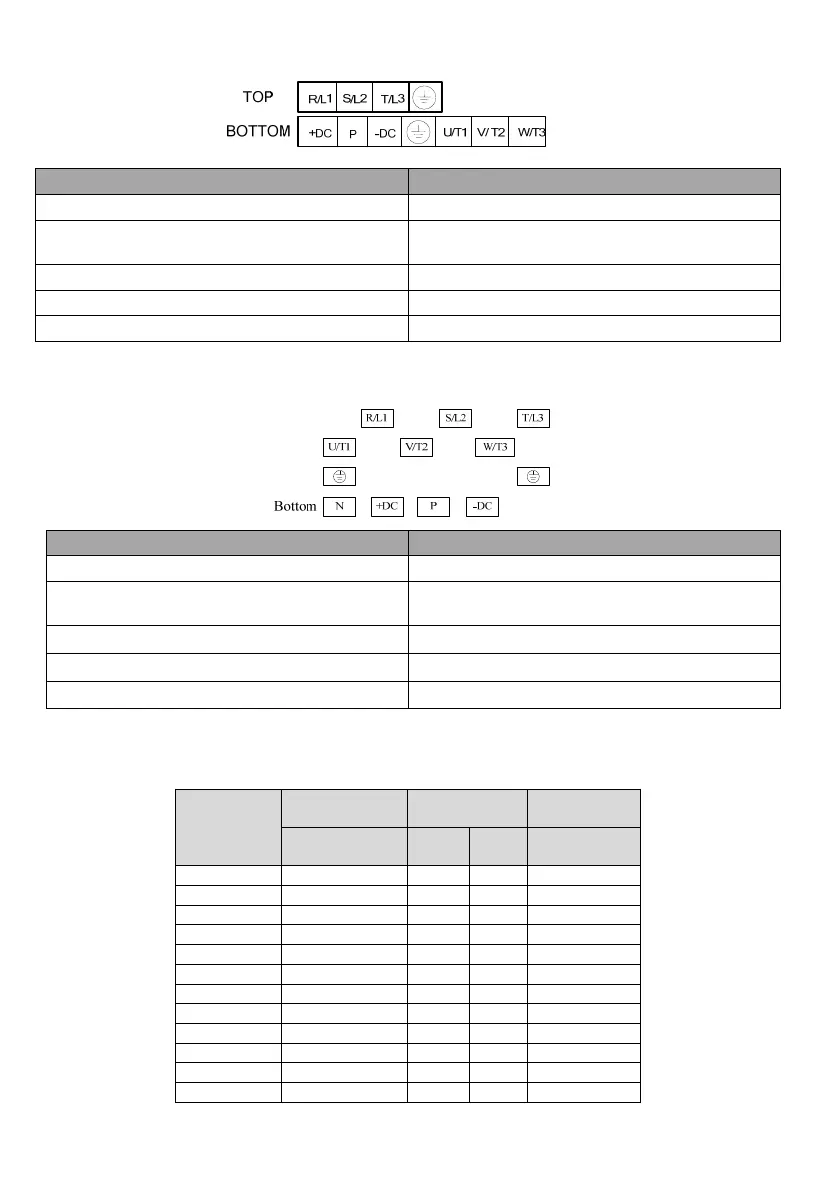

Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
P, + D C Reserved for external DC reactor, connected with copper bus
upon delivery
-DC DC negative bus output terminals
P, -DC Reserved for external braking unit
U/T1, V/T2, W/T3 Three-phase AC output terminals
Terminal type 6
Applicable models: MV600L-4T315 ~ MV600L-4T400
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
P, + D C
Reserved for external DC reactor, connected with copper bus
upon delivery
P, N
Reserved for external braking unit
-DC
DC negative bus output terminals
U/T1, V/T2, W/T3
Three-phase AC output terminals
2.1.1 Drive connection
Table 2-1 Recommended fuse capacity and cross section area of the copper-cored insulation wire
Model
Incoming line
protection
Main circuit
(mm
2
)
Control circuit
(mm
2
)
Fuse (A)
Input
wire
Output
wire
Control terminal
wire
MV600L-4T7.5 20 4 4 1
MV600L-4T11 32 6 6 1
MV600L-4T15 35 6 6 1
MV600L-4T18.5 50 6 6 1
MV600L-4T22 63 10 10 1
MV600L-4T30 80 16 16 1
MV600L-4T37 100 25 25 1
MV600L-4T45 125 25 25 1
MV600L-4T55 160 35 35 1
MV600L-4T75 200 70 70 1
MV600L-4T90 250 70 70 1
MV600L-4T110 315 95 95 1
