Megmeet MV600L Series - Basic Operation Wiring

10
MV600L-4T132 400 150 150 1
MV600L-4T160 450 185 185 1
MV600L-4T200 560 240 240 1
MV600L-4T220 630 150×2 150×2 1
MV600L-4T280 800 185×2 185×2 1
MV600L-4T315 800 150×2 150×2 1
MV600L-4T355 800 150×2 150×2 1
MV600L-4T400 1000 150×2 150×2 1
Note
: The parameters listed in this table are recommended values.
2.1.2 Wiring for basic operation
4V2~0

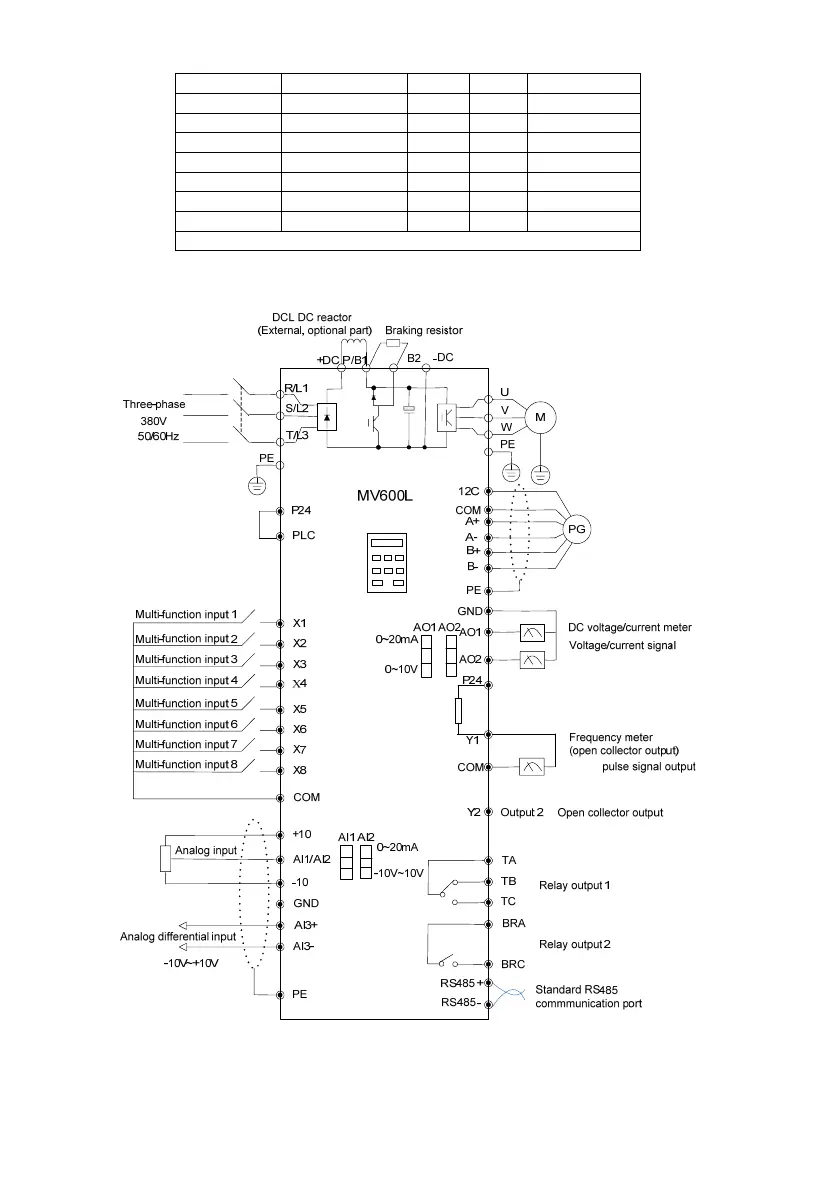

Fig. 2-1 Basic wiring diagram for products of 75kW and below
