Motor parameter called
Function code [P00.05] built-in classic parameters of mainstream motor of lifting
industry
A key recovery
When the user has set all function codes, you can store all the changes of
function codes, then use a key to recover all the changed function code.
Protection
function
Protection function of
general drive
Over-current ; over-voltage; short circuit; drive / motor overload; input / output
phase loss; overheating; encoder fault
Brake mechanism
failure
Er.bCF, Er.bSF, Er.FbL, Er.Fbr
Security protection
Speed deviation protection, overspeed protection, off load protection
Others
Cooling mode Forced cooling
Operating site
Indoor, away from direct sunlight, free from dust, corrosive gas, combustible
gas, oil mist, water vapor, water dripping or salt
Altitude
Used at the place lower than 1000m (derated at the place above 1000m, derated
1% for every increase of 100m)
Ambient temperature -10 ~+40 (derated when used in the ambient temperature of 40 ~50 )℃℃ ℃℃
Humidity 5%~95%RH, non-condensing
Vibration Less than 5.9m/s
2
(0.6g)
Storage temperature -40 ~+70℃℃
Efficiency ≥93% (7.5kW and below); ≥95% (45kW and below); ≥98% (55kW and above)
Installation method Wall-mounted
1.4 Outline, mounting dimensions and gross weight of drive
There are two types of outlines as shown in Fig. 1-1and Fig. 1-2. The outline, mounting dimensions and gross
weight are as shown in Table 1-3.
1. Enclosure R2~R10 (2.2kW-280 kW)

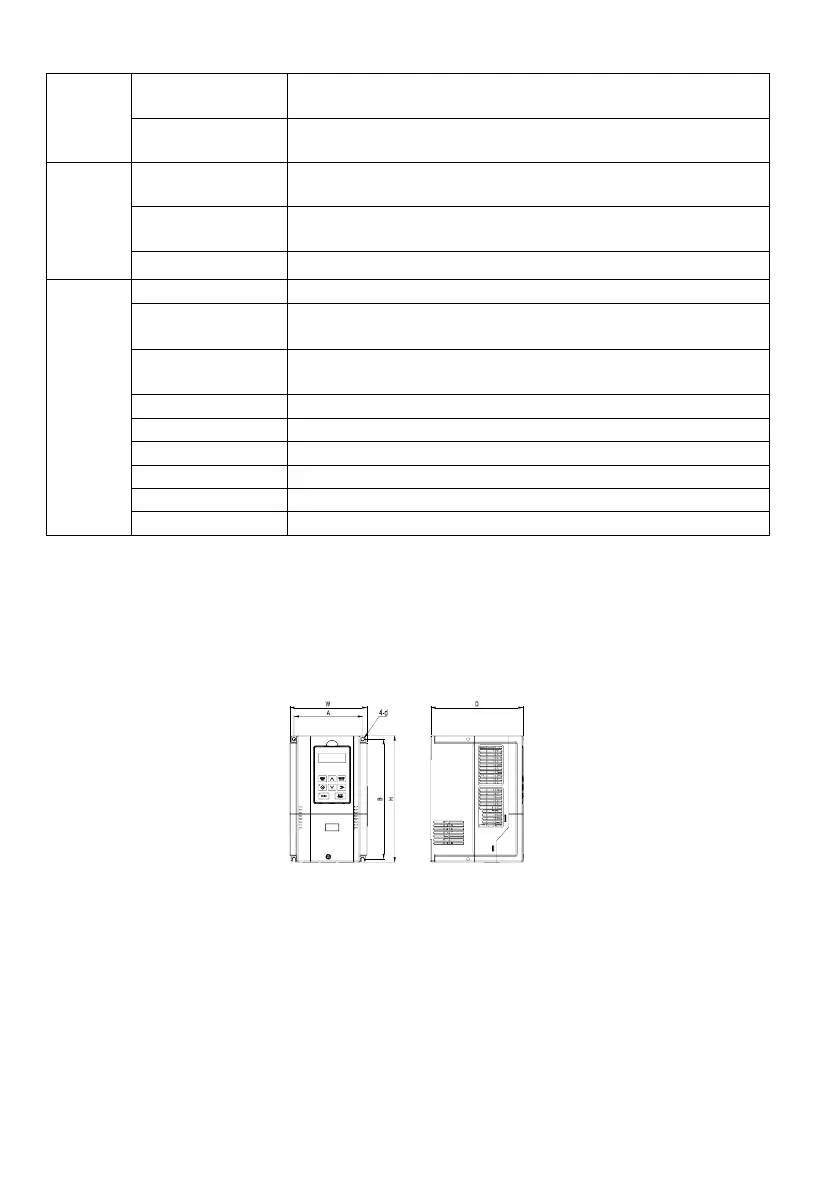

Fig. 1-1 Outline, mounting dimensions for products of 2.2kW-280kW
2. Enclosure R11 (315kW-400 kW)
