2.3. LOADER CASSETTE HANDLING, USING AND QUALITY OF
BANKNOTE
The following instructions explain how to fill the Loader Cassette with banknotes.
Banknotes that are placed in the Loader Cassette must meet the banknote criteria
detailed in Table 1.
To remove the Loader Cassette, you will need to release the Interlock
System with its key. The key of the Loader Cassette is required to open
and close it.

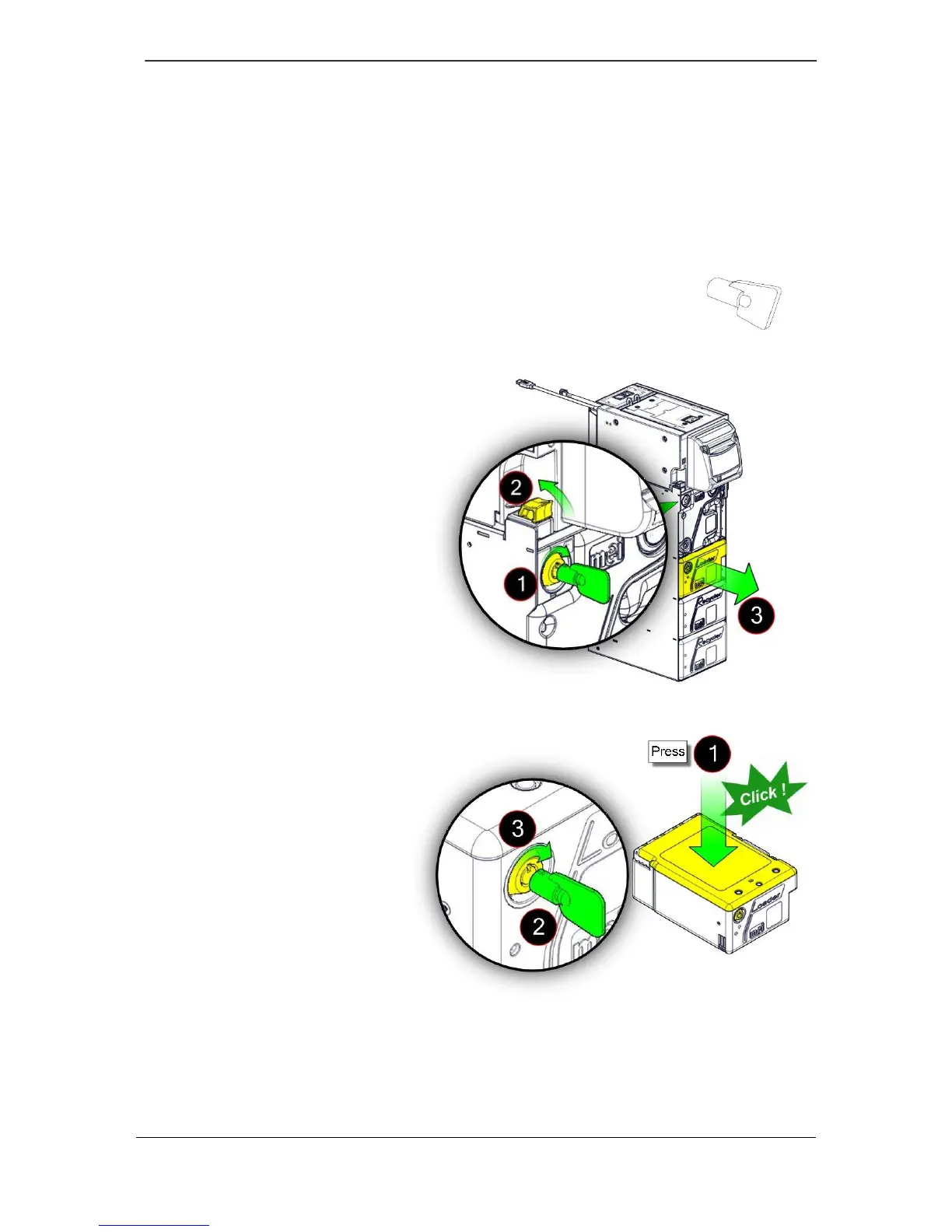

1. Release the Interlock
System with lock (1) and
lever (2) using the key.
2. Remove the Loader
Cassette (3).
3. To open the Loader
Cassette, press slightly on
the box (1), insert the key
(2) and fully turn the
locking latch clockwise (3).
