4. EASY JAM CLEARING
It may happen that a banknote is jammed in the BNR/BNA6.
The following cases of jammed banknotes are easy to clear.
For more difficult cases of jammed banknotes, refer to “ADVANCED JAM
CLEARING” in the BNR&BNA6 Service Manual 67902-5-044.

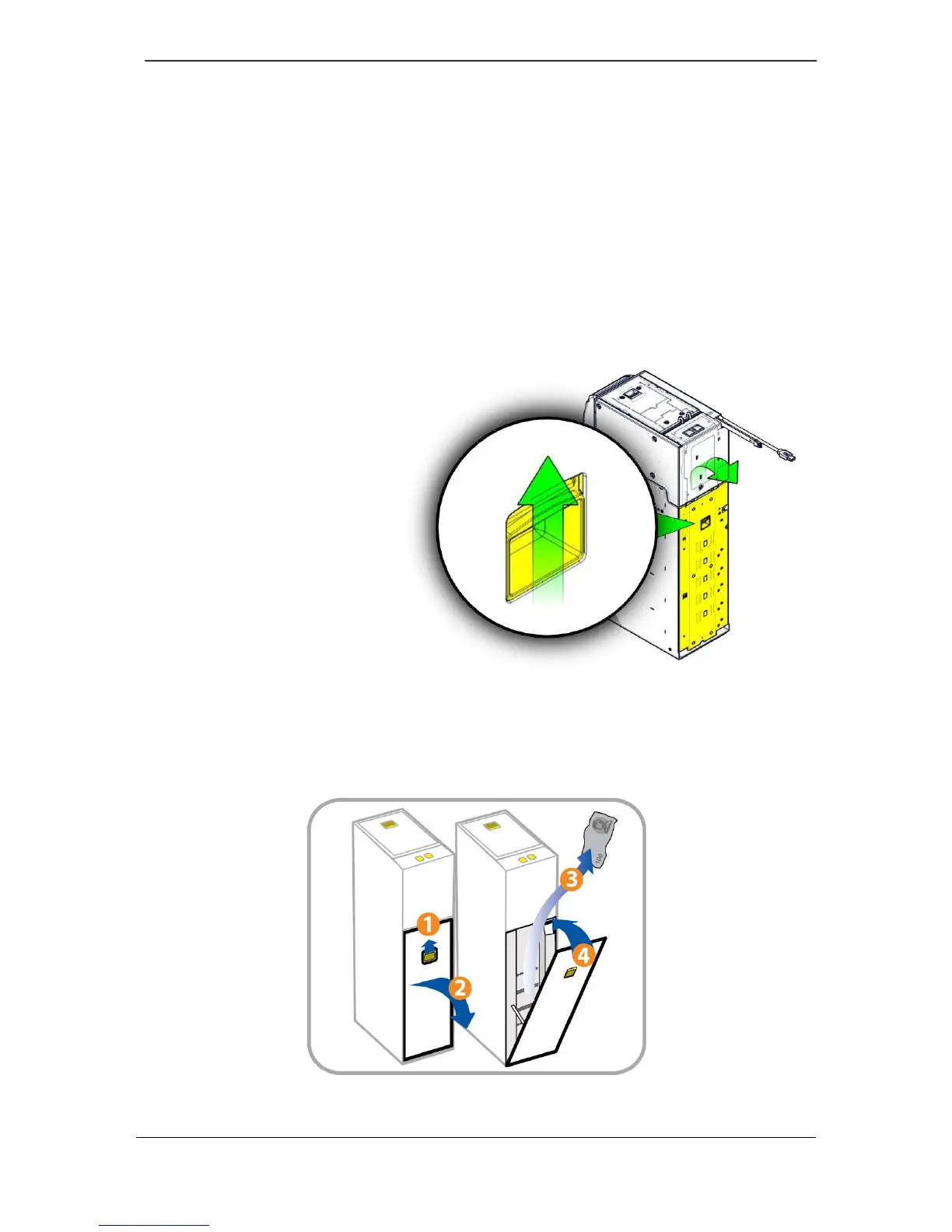

4.1. IN THE SPINE
1. Open the Spine door: lift
and hold up the yellow
button and pull the door.
2. Carefully withdraw the banknote, take care that the banknote does not fall
behind the BNR/BNA6.
3. Close the Spine door
