Removing and installing the door lock15.4
Undo screws (6).1.
Remove the lock cover (5). 2.
3. Screw off the door panel (2) and lift up.
Pull off the door-handle lid (1).4.
Pull off the circlip (2) sideways and remove the door-handle 5.
(3).
Undo the guide screw (4) and remove the circlips (10) 6.
and coil springs (12).
Pull out the axles (11) sideways and 7.
push the locking pins (7) outwards.
Remove the door lock mechanism (6, 8, 9).8.
1
2
3
4
5
6

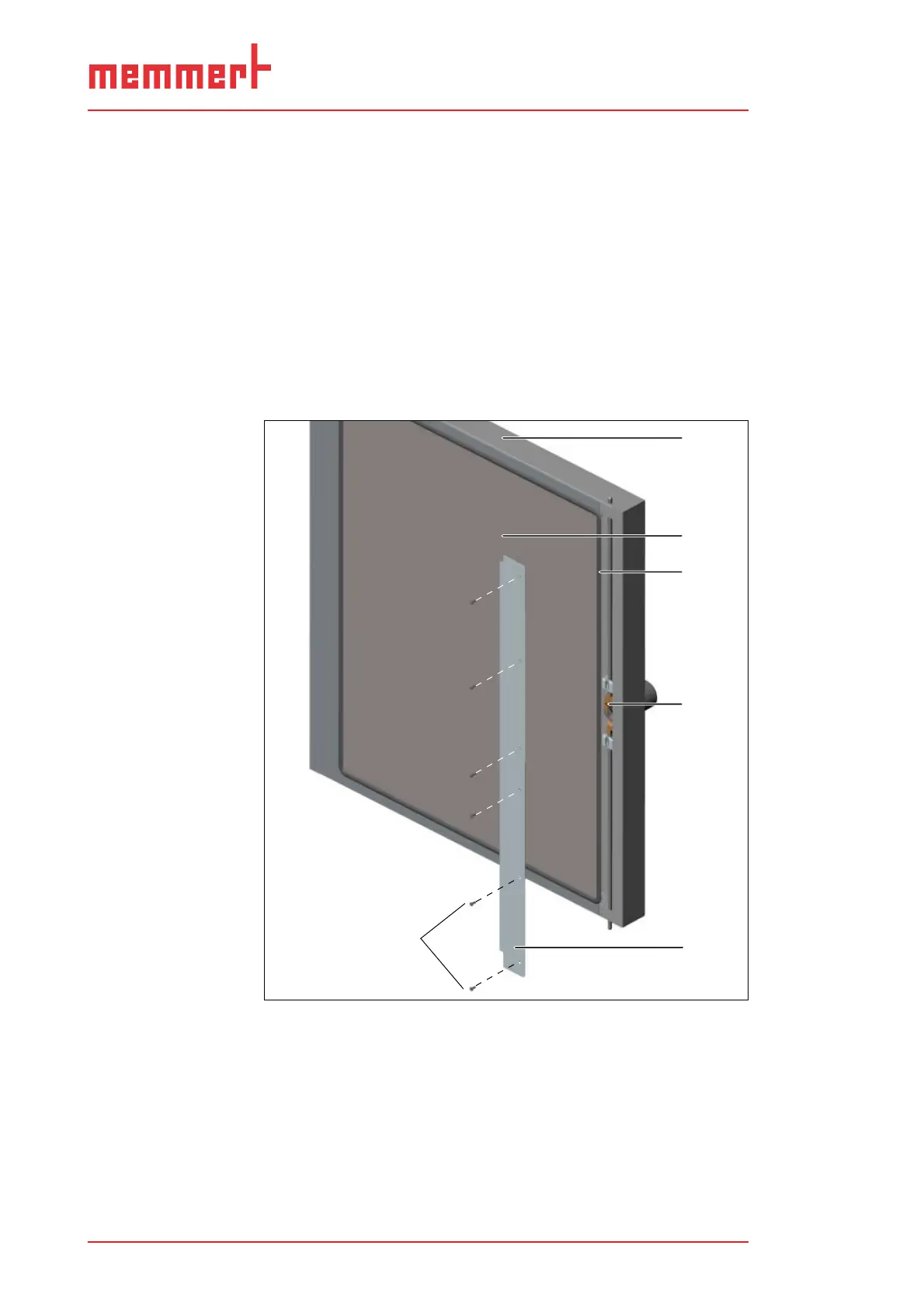

Removing the door lockFig. 19:
Door1
Door panel2
Door seal3
Locking mechanism4
Lock cover 5
Screws6
