Replace steam generator18.1.1
Disconnect the mains plug.1.
Remove the rear panel (see page 12). To do this the top panel 2.
must be removed first (see page 11).
Undo tube connections at the top and the right (2) on the 3.
steam generator (1).
Undo the plug connector of the steam generator in the con-4.
trol unit on the top of the appliance.
Unscrew the steam generator (3).5.
Remove the steam generator.6.
Put on a new steam generator and screw it tight.7.
Connect the plug connector of the steam generator in the 8.
control unit on the top of the appliance.
Connect the water tubes on the right and at the top on the 9.
steam generator.
Put back the rear panel and re-attach the cover grids of the 10.
steam generator and Peltier modules. Re-attach the top
panel.
Reconnect the mains plug.11.
Check that the humidification is now working properly. If this 12.
is not the case, contact the manufacturer.
1
1
3
2

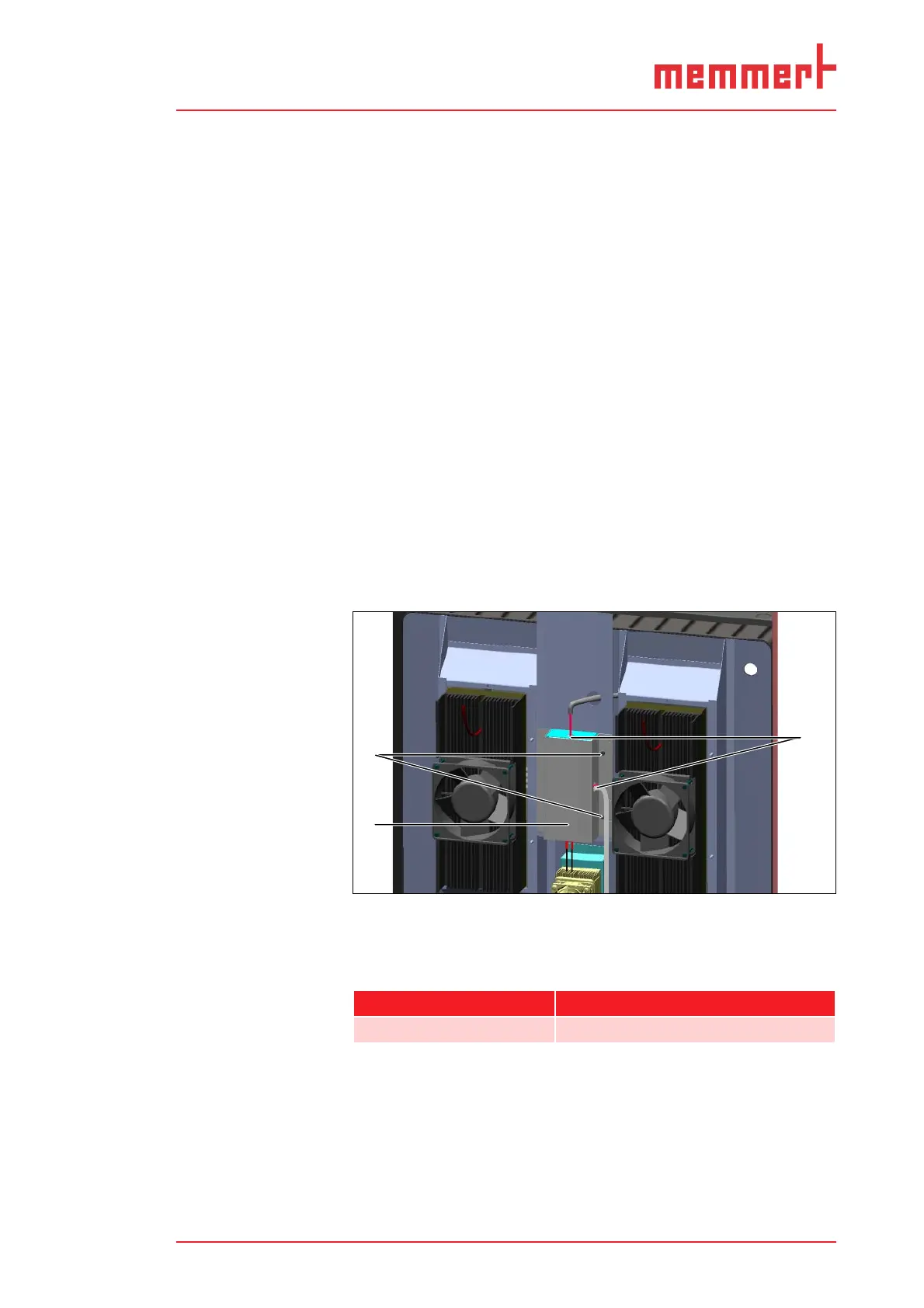

Replace steam generatorFig. 26:
Steam generator1
Tube connections2
Screw connections (four screws)3
Spare part Spare part number
Steam generator B04436
