Replacing seals16.
Replacing door seal16.1
Remove locking cover (2) (see page 28).1.
Lift up door panel (4) and remove old seal (3).2.
Cut out the new door seal at the ends using the old one as a 3.
template and push onto the door panel.
Insert the door panel and press on.4.
Re-attach the lock cover.5.
1 2 3 34

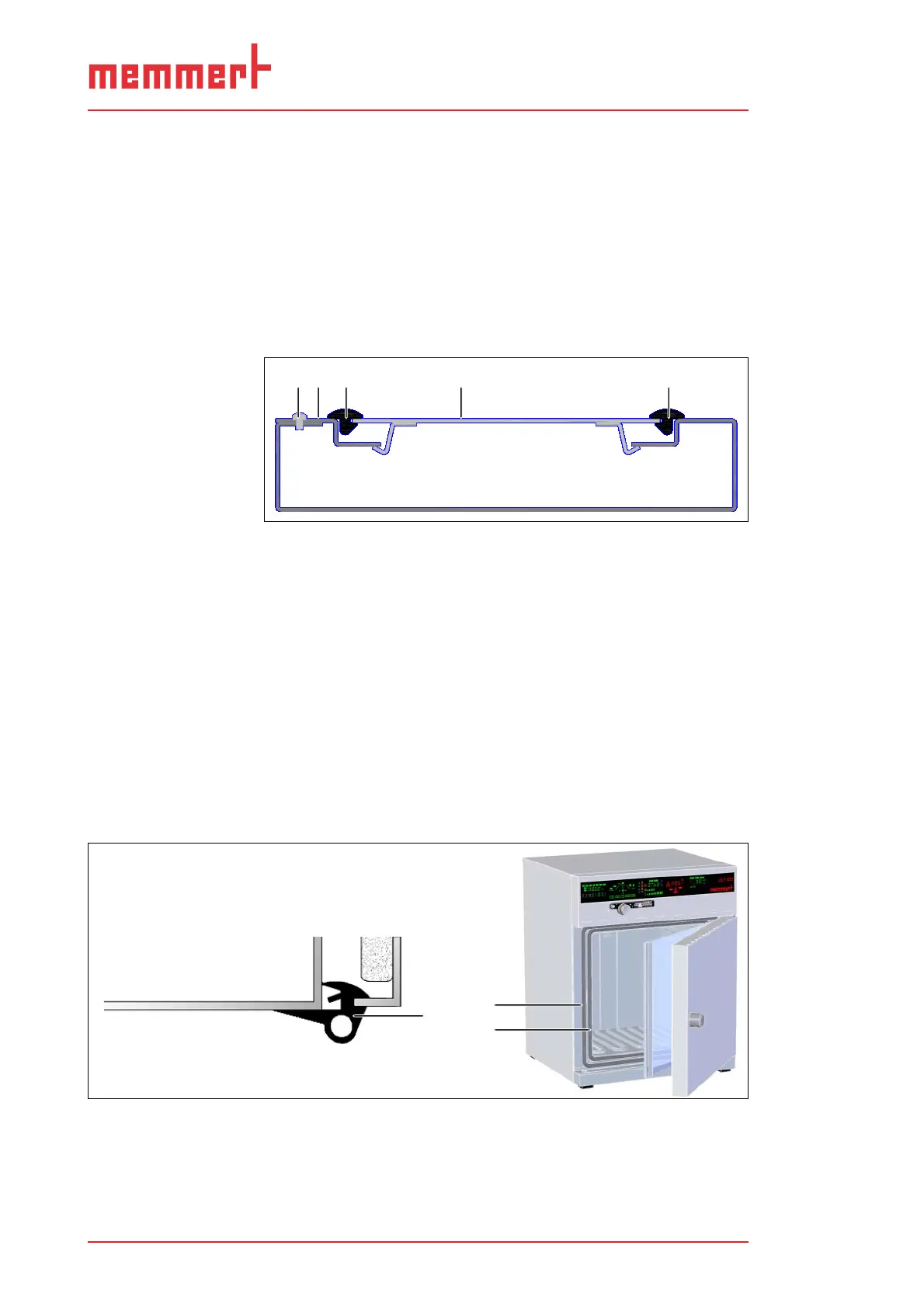

Replacing the door seal (cross-section)Fig. 21:
Screw1
Lock cover 2
Door seal3
Door panel4
Replacing the chamber seal and 16.2 the cage seal
The appliance has two seals:
Chamber seal ►
Cage seal ►
The seal can be pulled out after the door is opened and the new
seal be pushed into place.
Push in the pre-cut length of seal into the space, without stretch-
ing it, and cut off the end if necessary.
1
2
3
Replacing the chamber and cage sealsFig. 22:
Chamber seal1
Cage seal2
Seal cross-section3
