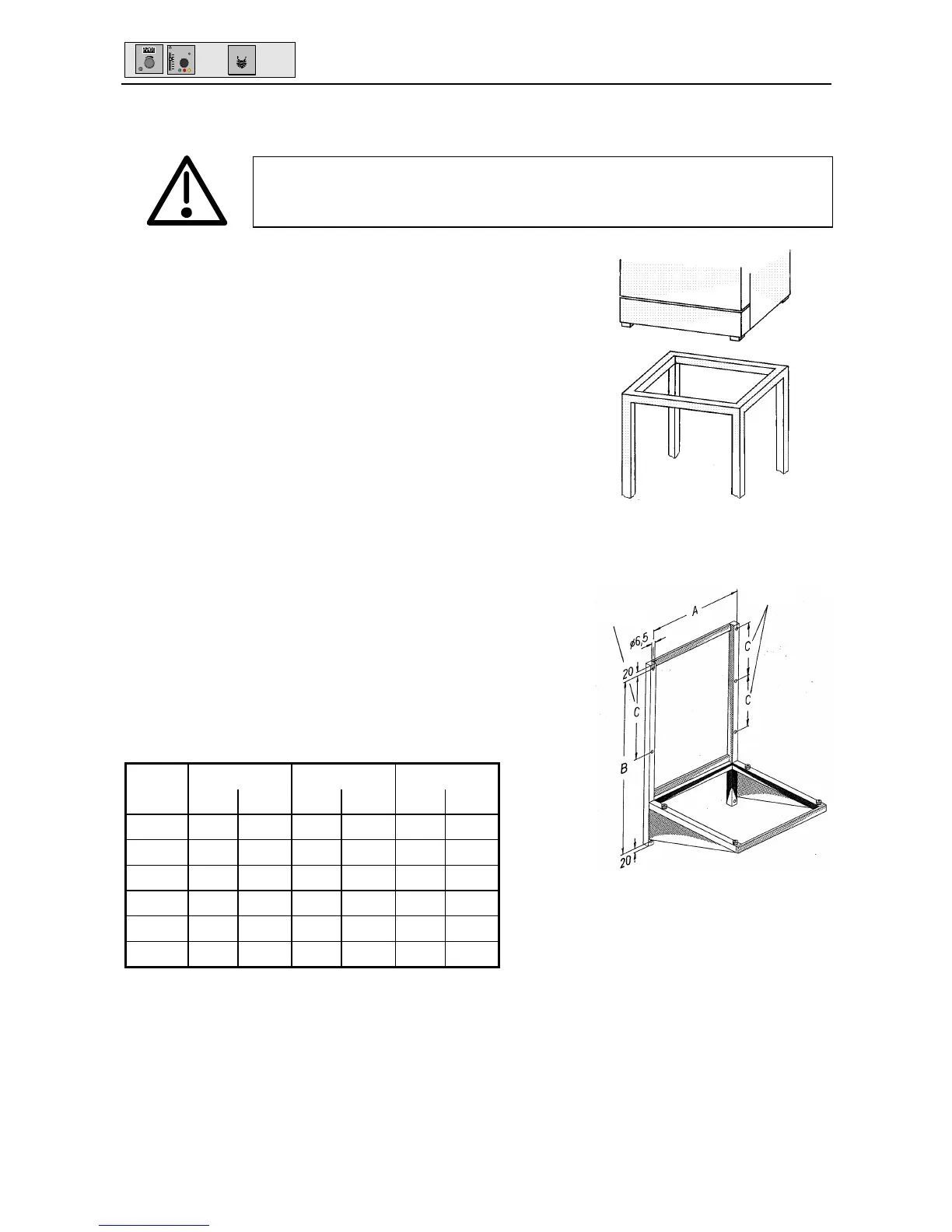

2.2 Installation options (special equipment)
The cabinet can be set up on the floor or on a table
(bench), model 500 - 700 on a subframe. Ensure at least
150 mm clearance between back of oven and wall. The
distance between ceiling and oven should not be less than
200 mm and the minimum wall spacing to the sides is 80
mm.
Generally, a sufficient circulation of air around the unit is
required.
After the cabinet has been set up horizontally the door can
be adjusted if required (see chapter - MAINTENANCE).
The model 800 is movable. The front castors are lockable by means of a fixation. In order
to assure stability, the front castors must always be adjusted to the front side of the
oven for locking.
2.3 Wall mounting (special equipment)
Up to model 700 for all ovens metal mounting brackets
(see Fig. a) are available. A mounting bracket is delivered
with an incombustible plate. The dimensions of the fixing
screws are to be choosen depending on the total weight
(equipment and loading) of the charge and the quality of
the wall.
Pitches of holes for wall fixation (wall bracket)
A B C
model mm inch mm inch mm inch
200 489 19,25 770 30,32
300 569 22,40 770 30,32
400 489 19,25 850 33.47 - -
500 649 25,55 930 36,61 - -
600 889 35,00 1090 42,91 540 21,26
700 1129 44,45 1250 49,21 410 16,14
model 600
model 700
Do not place the steriliser on a readily inflammable support!
