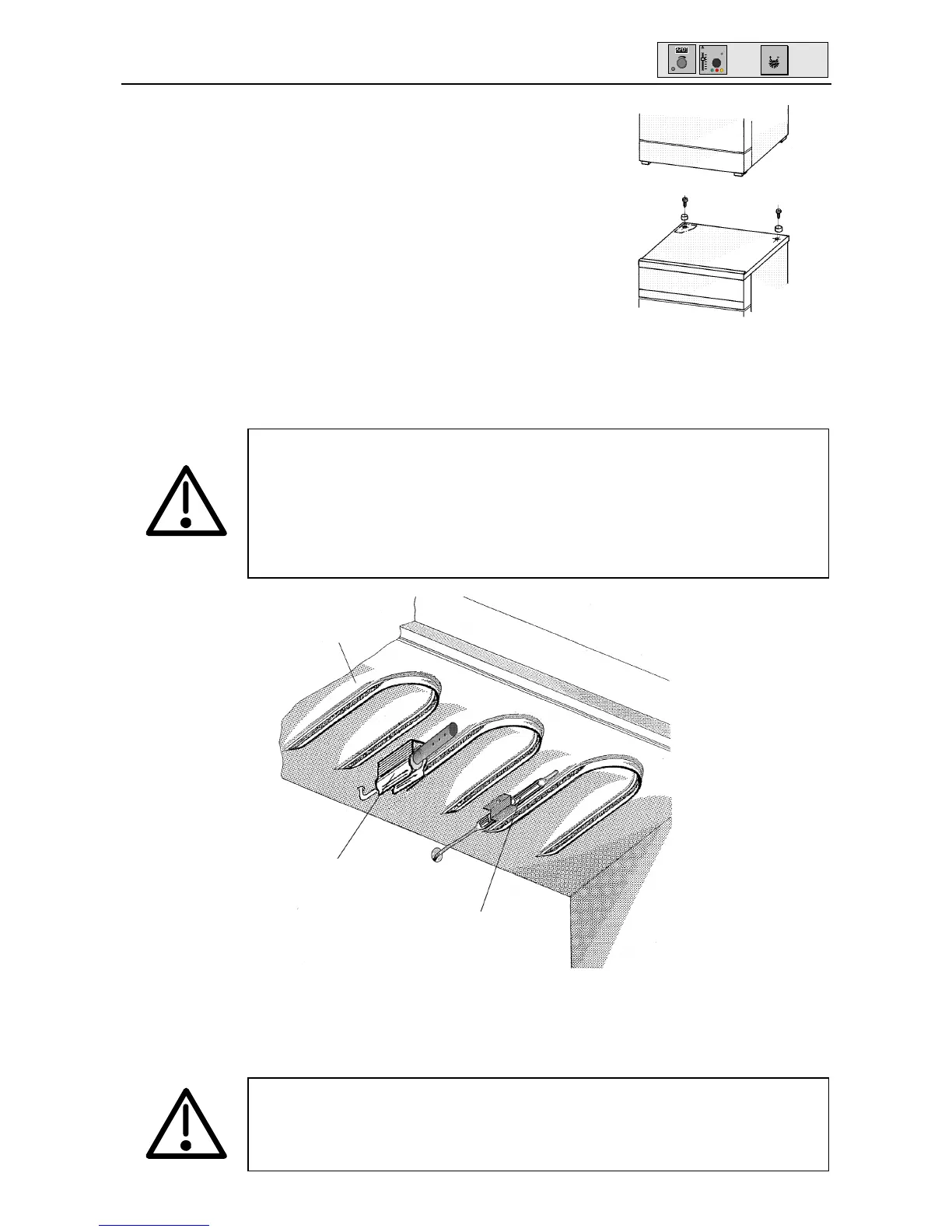

2.4 Stacking device (special equipment)
Where the requirement is for two ovens of the same size to
be placed one on top of the other, the oven with the lower
working temperature should be placed on the bottom .
Mounting:
Remove the top of the bottom oven and turning it upside
down place the drilling jig into the back corner. Mark out
the hole position and drill a 4,2 mm diameter hole.
With the screws provided fix the centering cylinders into position. Re-fix top cover.
Model 700 can only be stacked with an intermediate frame.
3 Putting into operation
Attention !
Extremely strong shocks during transport can cause a displacement of
the temperature sensors in the holding clips inside the working space.
Take care before the first putting into operation that the temperature
sensors are checked on their correct position and if necessary are slided
cautiously backwards or forwards in the holding clip (see fig.).
Handling of the door
The door is opened by pulling the door knob, and is closed by pushing in the door knob.
Attention!
When the oven is started up for the first time it should be run under
supervision until steady conditions are reached.
ceiling of working
space
temperature sensor glass
temperature sensor metal
back panel of working space
