85-03-00955 Page| 58
5”
Note: Place Logs 1, 2 and 3 directly on the floor plate only. Do not attempt to place Logs 1, 2 or 3 on top of any
base media. The logs are designed to sit directly on top of a flat surface.

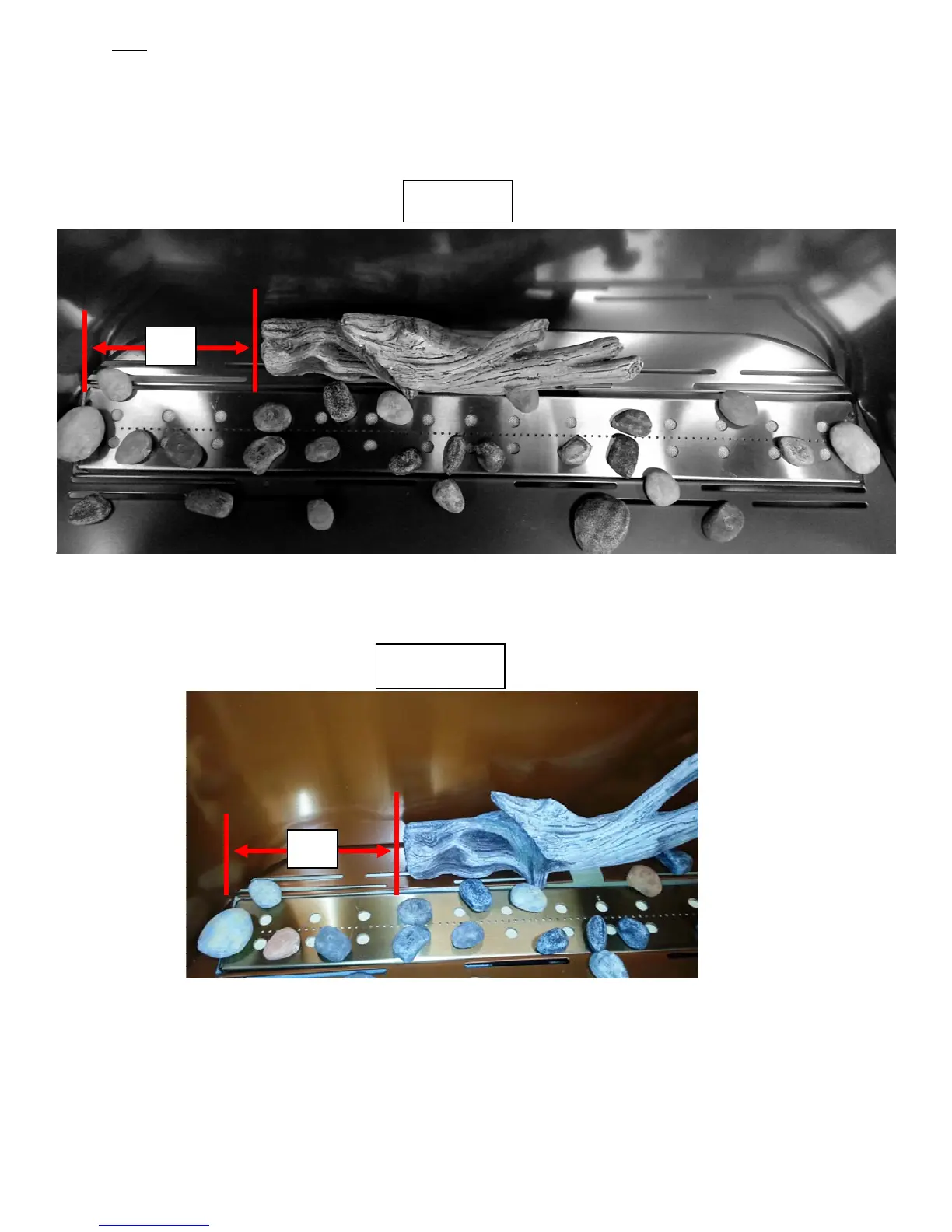

4. Place Log #2 in location shown, below. Left rear edge of Log #2 shall touch rear wall of the Panoramic Curved
Liner and front right tip shall be about ½” in front of rear edge of the burner. Left edge shall be approximately 8”
from the left edge of the burner on the ML-47. On the ML-39 the left edge shall be approximately 5” from the left
edge of the burner as shown below.
8”
ML-47
ML-39
To Next Page
