85-03-00955 Page| 59
5. Place Log #1 with its left rear edge touching rear wall of panoramic panel and left edge touching the curved cor-
ner of the panoramic panel liner. Front right tip of Log #1 should sit in front of the front edge of the burner and in
front of the combustion air slot.

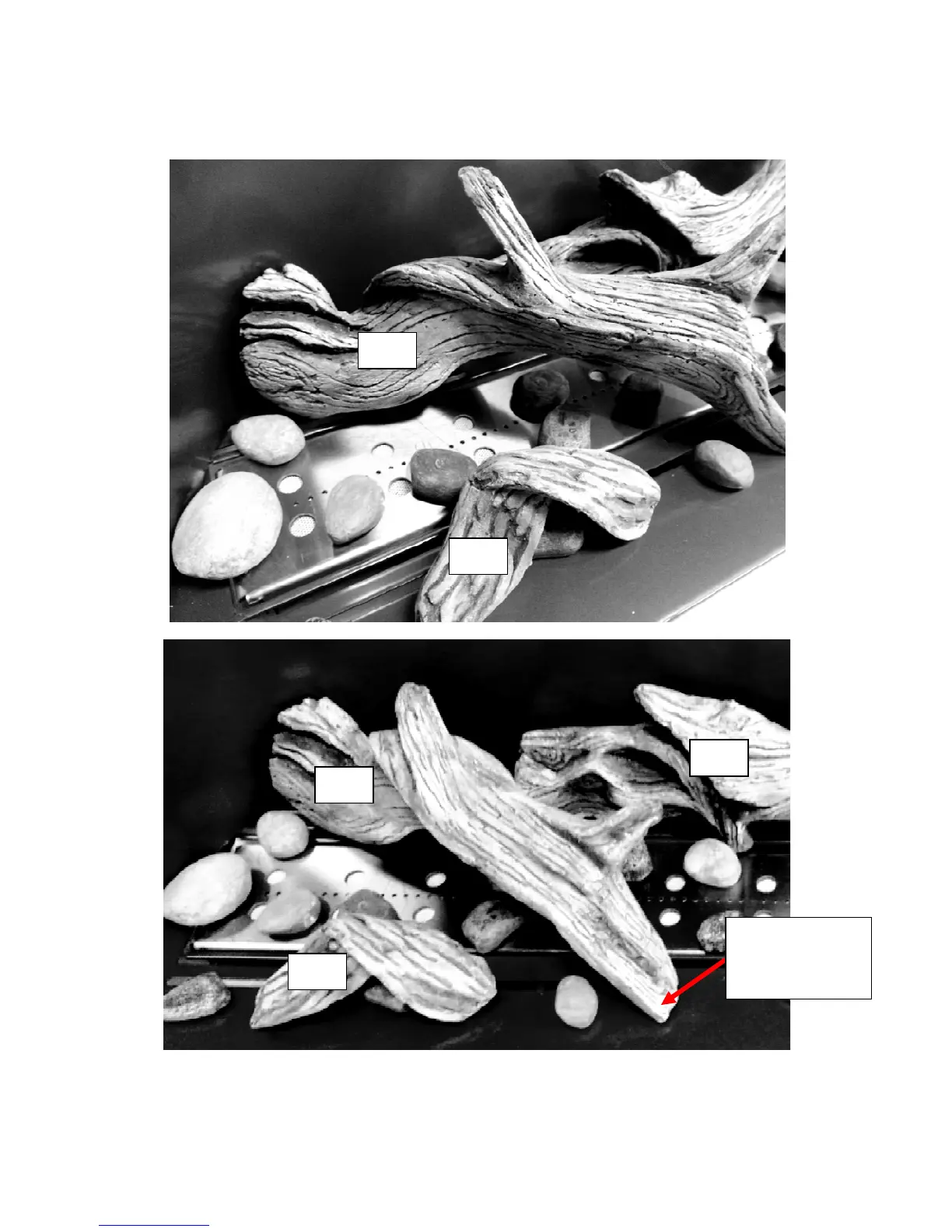

6. Place Log #5 in front of the burner as shown, below. Log #5 may sit on top of Base Media as you desire and its
left to right location is not critical. However, avoid placing Log #5 on top of burner ports.
#1
#5
#5
#1
#2
Front Tip of Log
#1 sits in front of
air slot.
To Next Page
