Mendota ML60 - Page 19

85-03-01147 ML60 Page 19

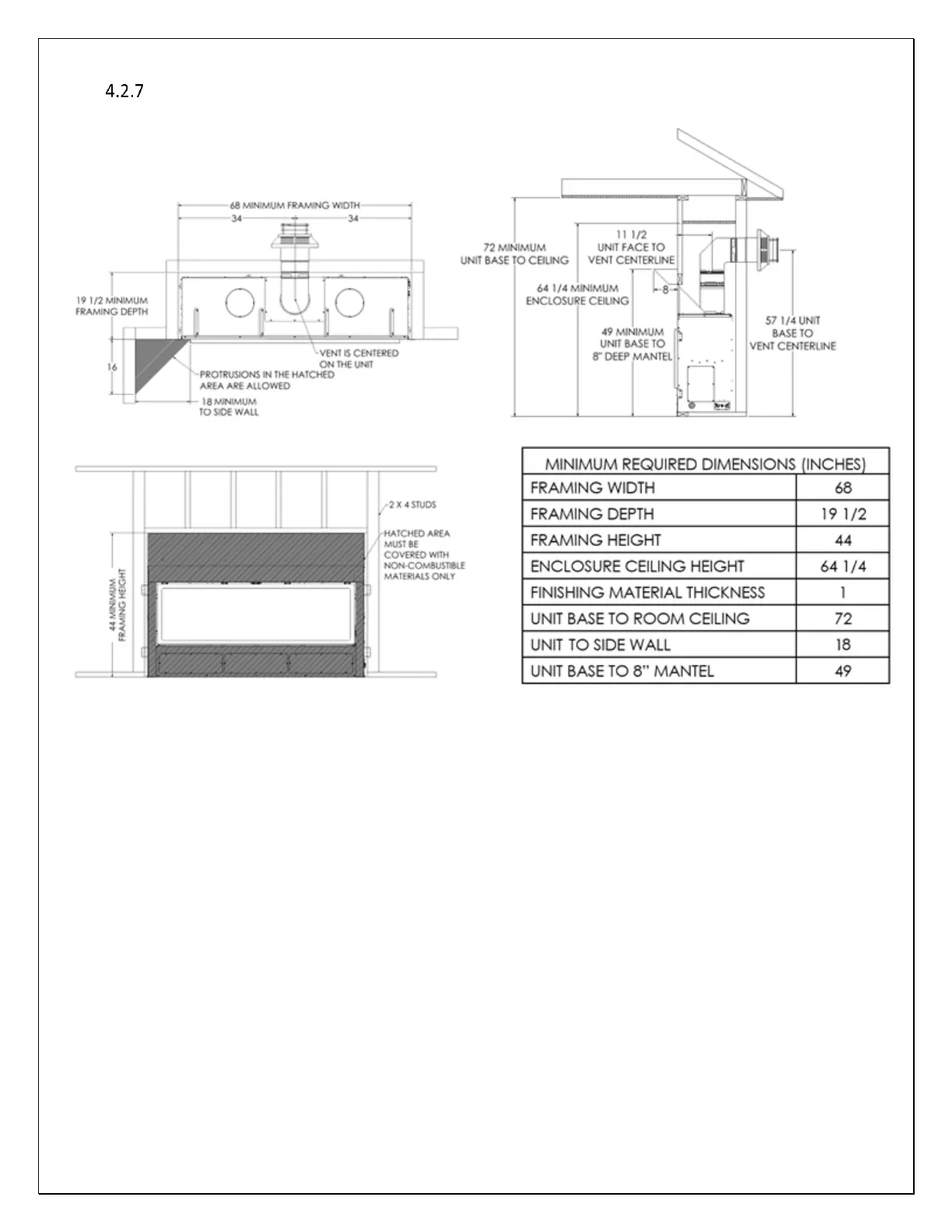

Fireplace Dimensions and Clearances
Figure 4-13 Overall Fireplace Dimensions
Caution: The distance from floor level to the centerline of the vent cap is based on Simpson DuraVent GS
components. If using vent components of another brand, do not assume that the measurement given here is
applicable. Verify the distance to the centerline of vent cap by measuring the components you are using.
