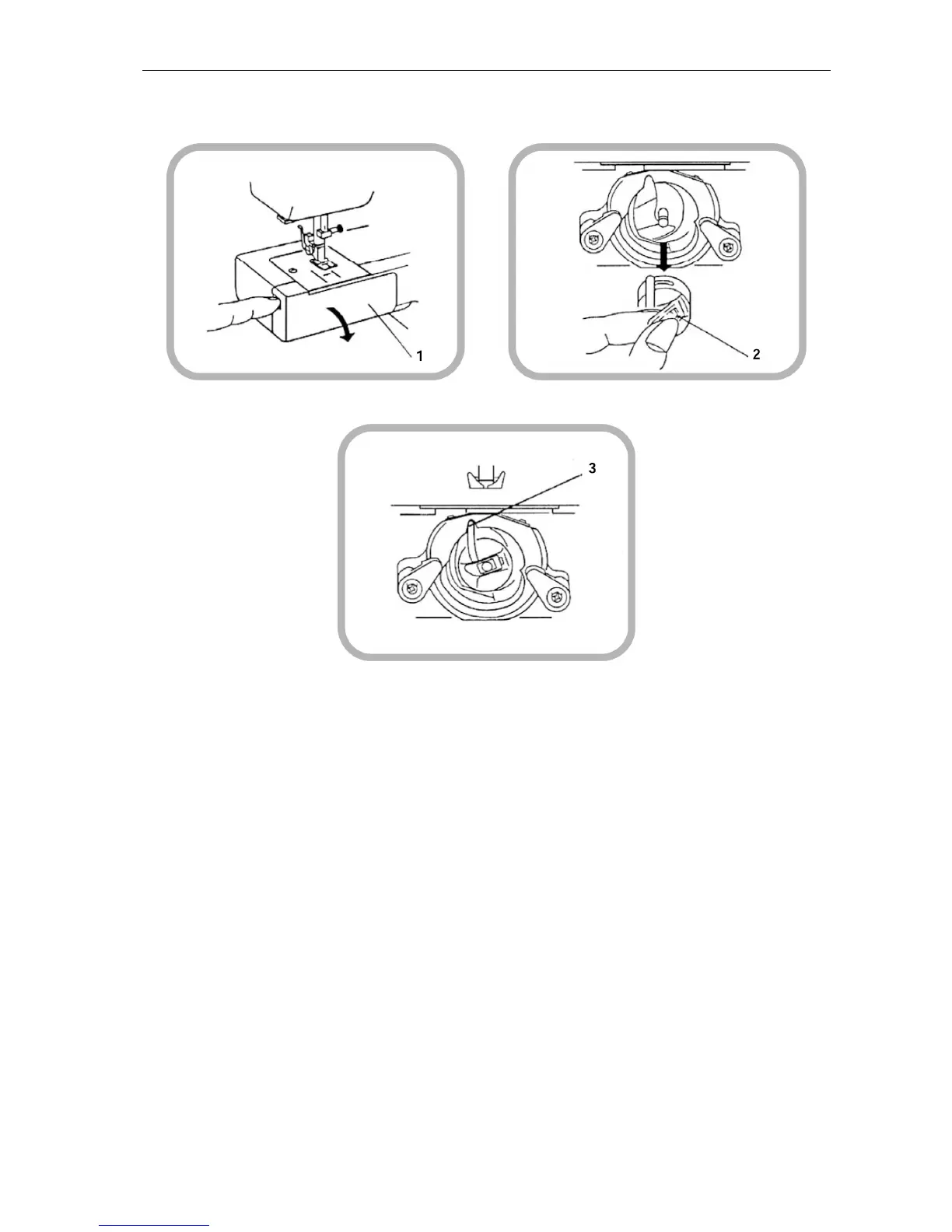

Remove the bobbin case and insert the bobbin
1. Open the gripper flap (1).
2. Turn the handwheel towards you until the needle is in the highest position. Hold the bobbin case in
the clip (2) and pull it straight out.
3. When the bobbin case is replaced, the pin (3) will snap into place at the top of the bobbin housing.
