i
Do not rest on the headlamp when it has
been swung out.

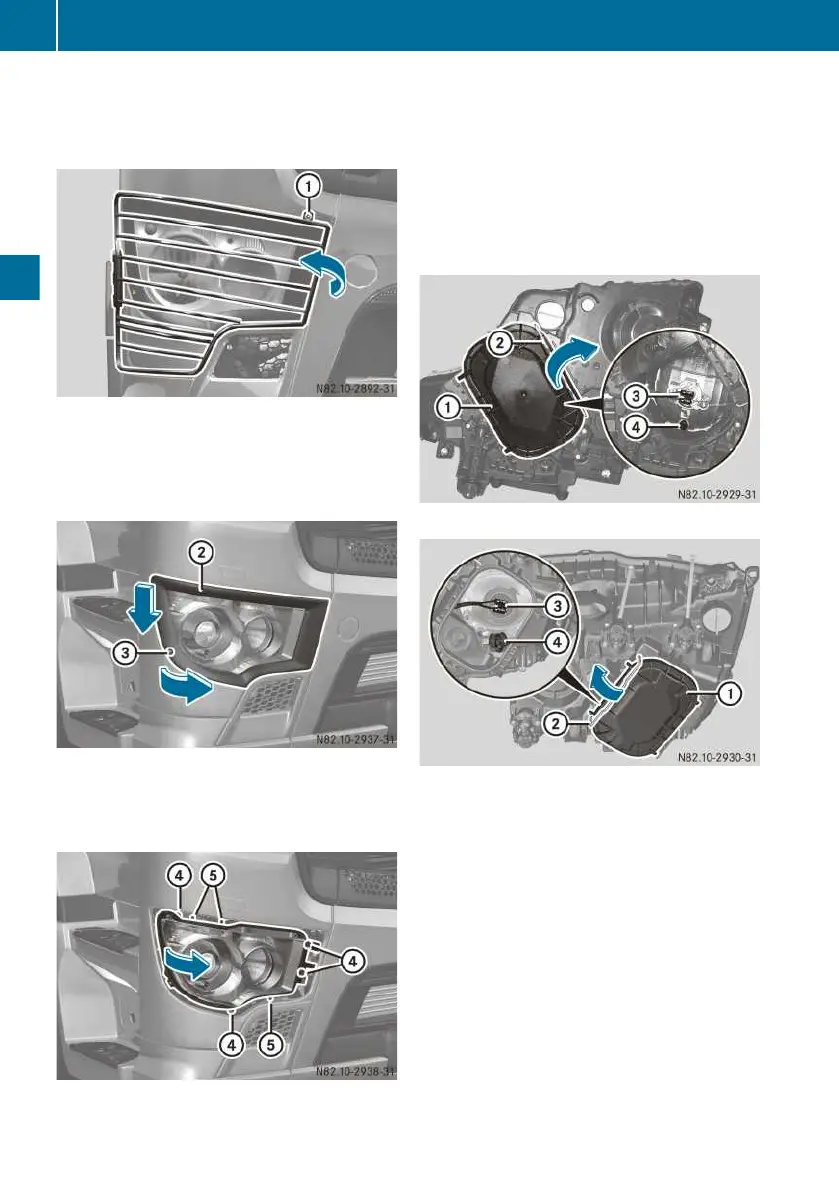

Swinging out the headlamps: variant 2
Protective grille (example: right-hand headlamp)
X
If your vehicle is equipped with protective
grids in front of the headlamps, loosen
screw : and swing the protective grid out-
wards in the direction of the arrow.
X
Remove screw =.
X
Slide cover frame ; outwards and down-
wards, then swing it forwards in the direction
of the arrow and remove it.
X
Unscrew screws with grey washers ?.
Do not turn headlamp adjustment screws A.
The headlamp must otherwise be readjusted.
X
Swing the headlamp out in the direction of the
arrow.
i
Do not rest on the headlamp when it has
been swung out.
Dipped-beam headlamps and navigation
lights (halogen headlamps)
Halogen headlamps: variant 1
Halogen headlamps: variant 2
Observe the notes on replacing bulbs
(Y page 91).
X
Swing out the headlamps – variant 1
(Y page 93), variant 2 (Y page 94).
X
Press clip ; in the direction of the arrow.
X
Open and remove cover :.
X
Dipped-beam headlamp: remove the con-
nector from dipped-beam headlamp bulb =.
X
Unclip the retaining spring.
X
Remove bulb =.
X
Insert the new bulb in such a way that its base
fits into the recess of the bulb holder.
X
Navigation light: press socket ? to the side
and pull it out.
X
Pull the bulb out of the holder.
94
Lighting system
Driver's workstation
