3. Attach the cowl seal.
4. Position the top cowl and secure it with the cowl latch.
SHIFT CABLE INSTALLATION
Install the cables into the remote control following the instructions provided with
the remote control.
NOTE: The shift cable is the first cable to move when moving the control box
out of neutral.

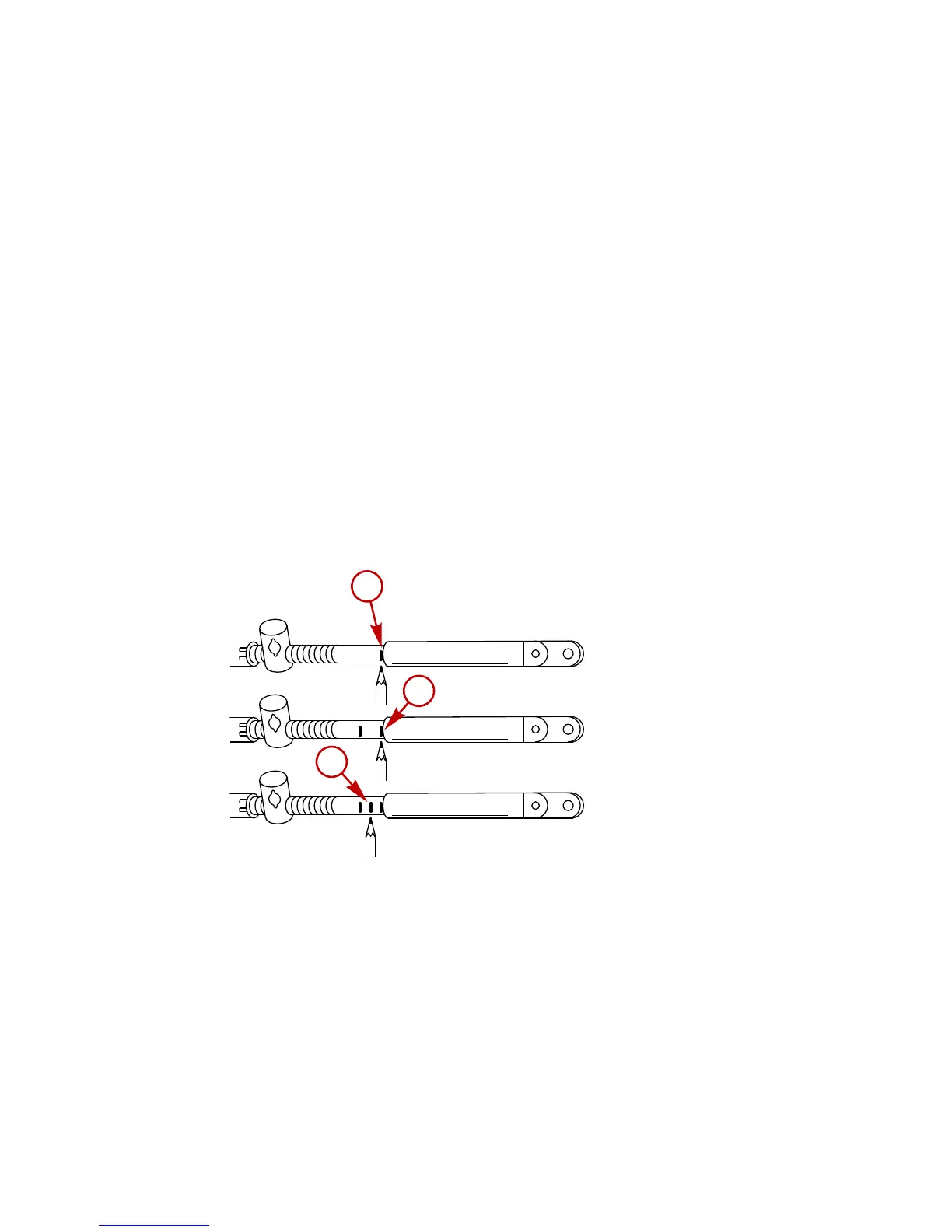

1. Locate the center point of the slack or lost motion that exists in the shift
cable as follows:
a. Move the remote control handle from neutral into forward and advance
the handle to full speed position. Slowly return the handle back to
neutral. Place a mark (a) on the cable next to the end guide.
b. Move the remote control handle from neutral into reverse and advance
the handle to full speed position. Slowly return the handle back to
neutral. Place a mark (b) on the cable next to the end guide.
c. Make a center mark (c), midway between marks (a and b). Align the
end guide with this center mark when installing the cable to the
engine.
2. Position the remote control handle into neutral.
3. Attach the shift cable to the shift lever with a washer and bow‑tie retainer.
ENGINE INSTALLATION
116 eng
To Next Page
