10. Push on the lower cable threaded end while observing the throttle drum.
When the throttle drum moves, the cable is too tight. Apply less tension
and thread the lower cable nut that is on the right side up to the bracket.
Thread the nut on the left side up to the bracket finger‑tight.

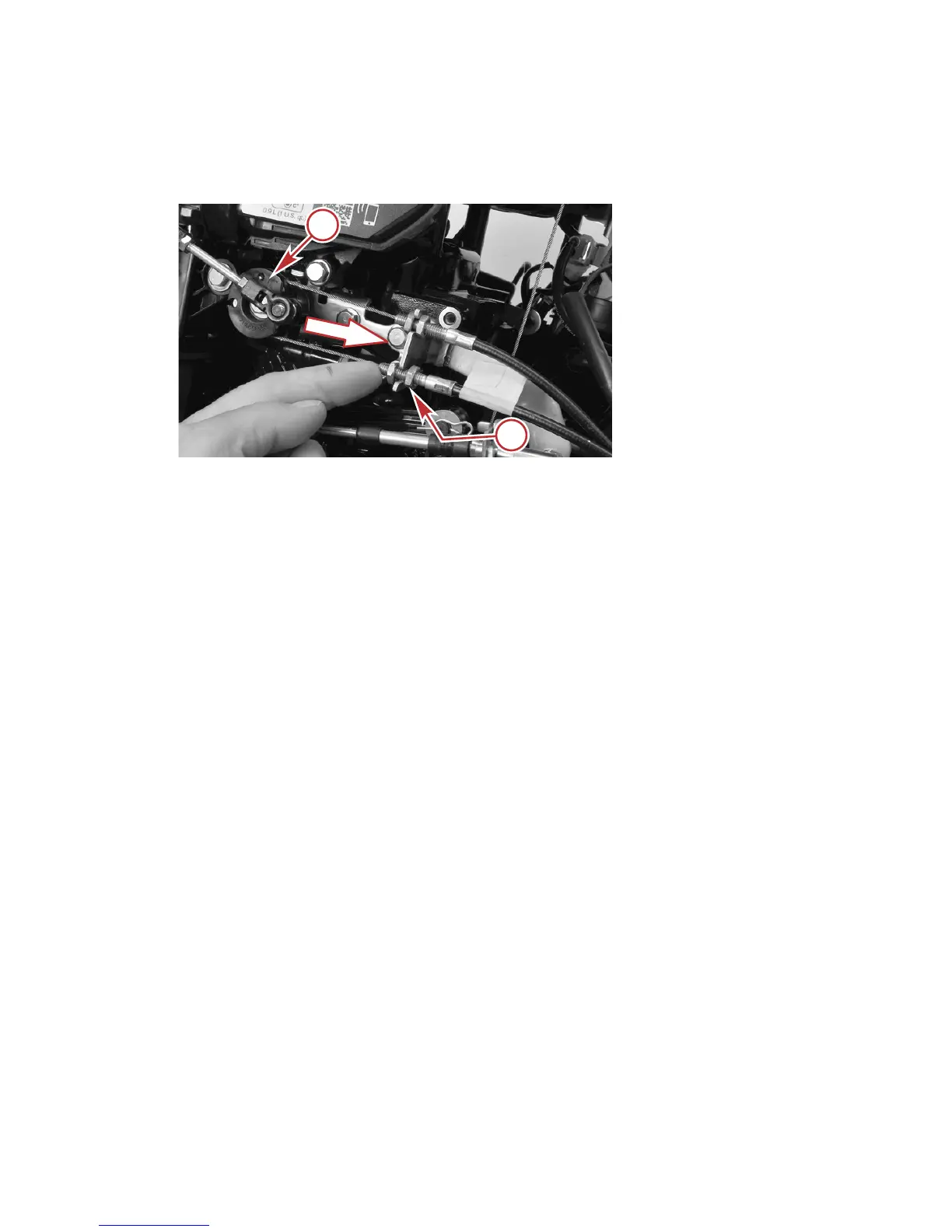

Push on lower cable threaded end
a - Throttle drum
b - Thread nut up to the bracket
11. Rotate the throttle grip to wide‑open throttle (WOT) and release the grip.
The marks should be aligned. If they are not aligned, rotate the grip to
align the marks. There should be no resistance when turning the grip to
align the marks.
12. Tighten the top cable nuts. Ensure the position of the cable does not
change on the bracket.
