13. Verify the throttle drum idle stop is contacting the idle stop on the bracket
when the idle marks on the tiller handle and grip are aligned.

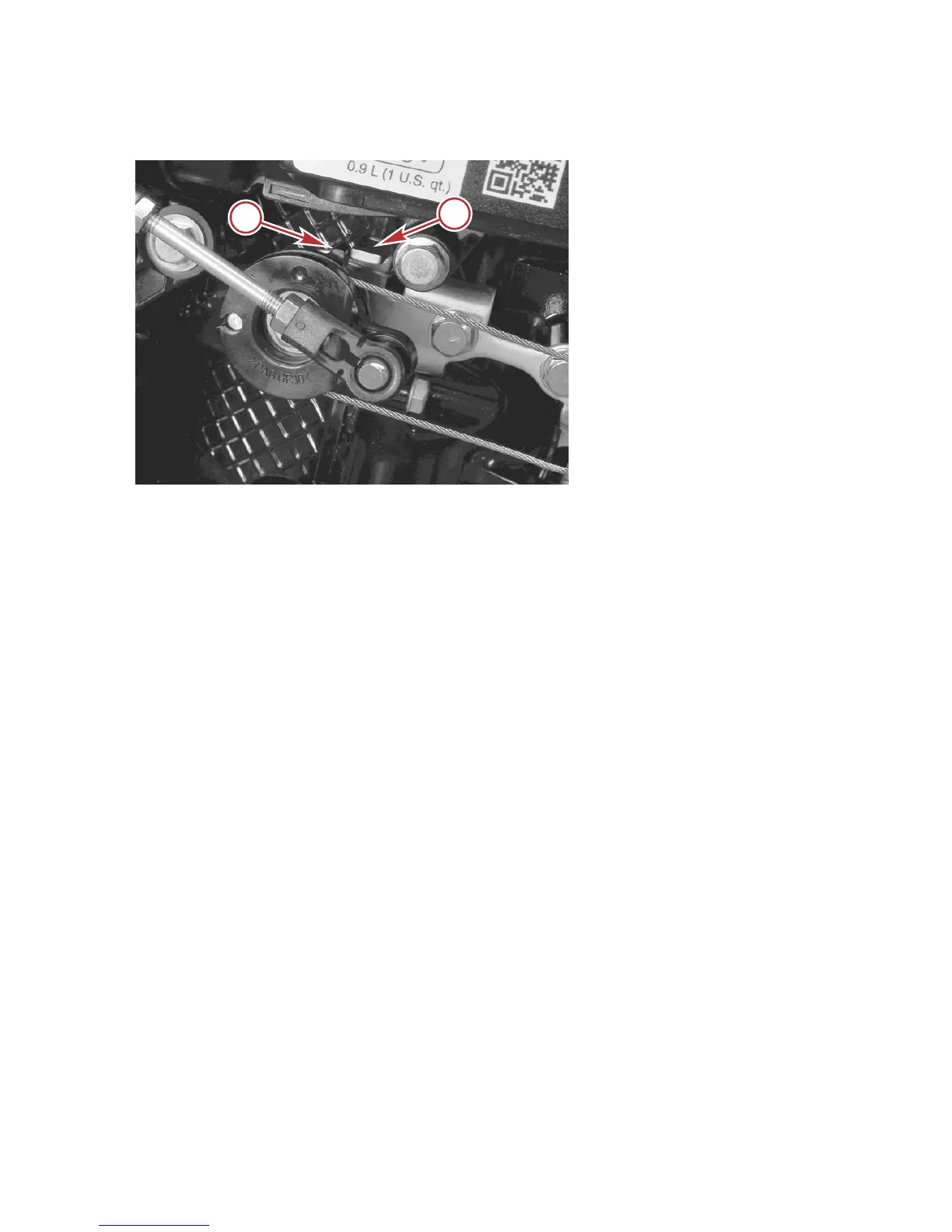

a - Throttle drum idle stop
b - Idle stop on bracket
14. Rotate the throttle grip to WOT and back to idle several times. The idle
marks must be aligned and the throttle drum idle stop must be contacting
the idle stop on the bracket.
15. Rotate the throttle grip to the WOT position and observe the throttle drum.
The throttle drum WOT stop should contact the stop on the bracket. If
necessary, thread the nut on the right side of the lower cable more
towards the bracket. Tighten the nuts on the lower cable.
