Tiller handle adjustment knob ‑ Turn the adjustment knob to raise or lower
the tiller handle in its operating position.

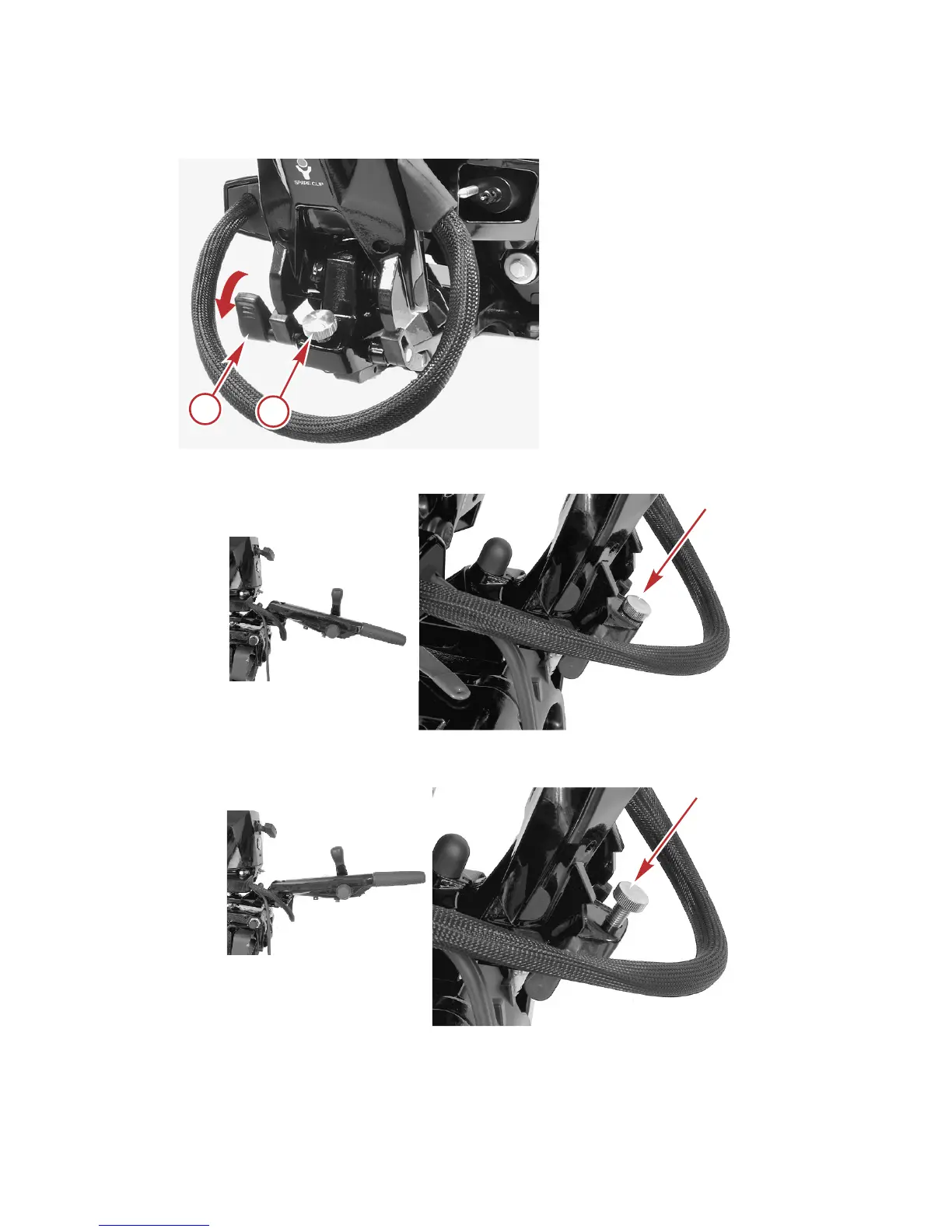

a - Tiller lock release lever
b - Tiller handle adjustment
knob
a. Adjustment knob at the lowest setting.
63908
b. Adjustment knob at the highest setting.
63909
Tiller handle yaw ‑ The tiller handle yaw allows the operator to change the
angle of the handle up to 18° left or right of center. Each increment
demarcation is 6°.
a. Remove the rubber boot covering the clamp screw nut.
a
b
63082
FEATURES AND CONTROLS
eng 33
