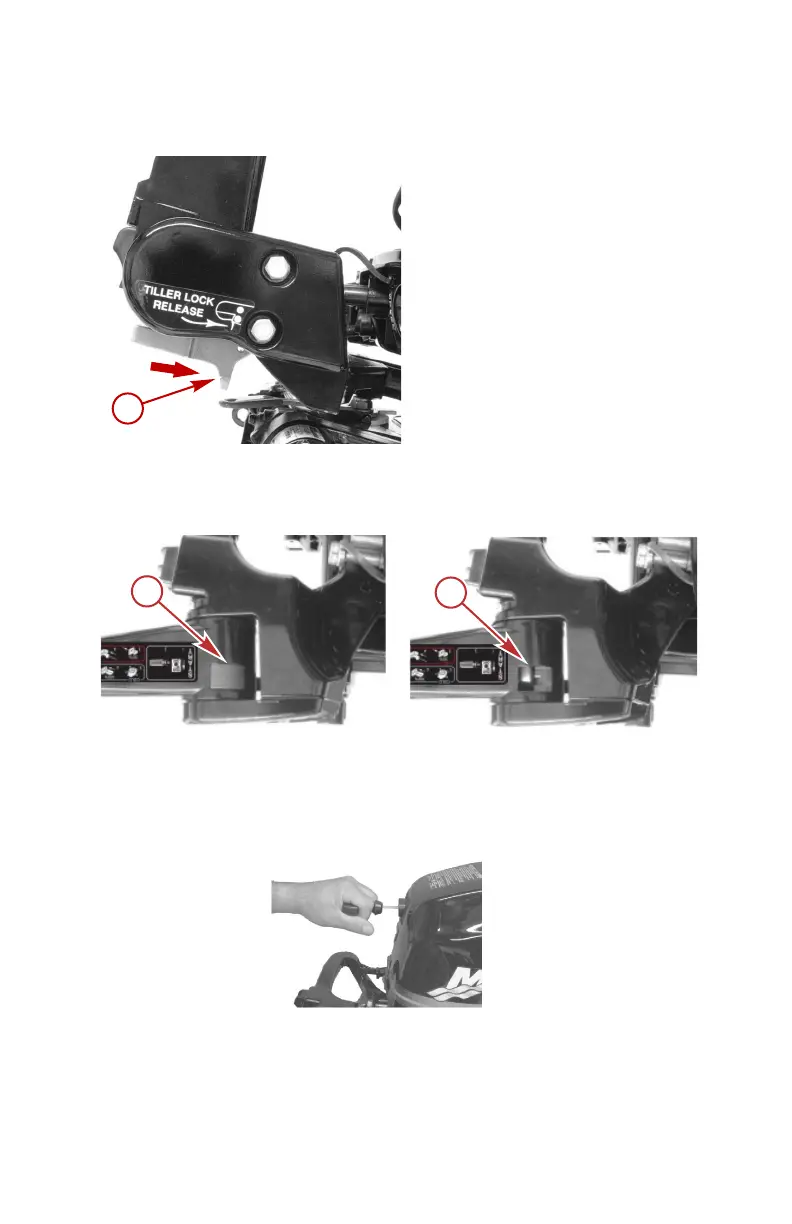

• Tiller lock release lever ‑ Push the lever to move tiller handle from one
position to another.
a - Tiller lock release lever
• Tiller handle lock cap ‑ Remove the lock cap on top of the tiller handle to
lock in the up position. Push the tiller lock release lever to release the
handle from the locked up position.
a - Lock cap
b - Locking mechanism
• Starter rope ‑ Pulling the starter rope cranks the engine over for starting.
28536
a
3274
b
a
57672
FEATURES AND CONTROLS
eng 47
