FEATURES AND CONTROLS
25
Remote Control Features
Your boat may be equipped with one of the Mercury Precision or Quicksilver remote controls shown. If not, consult
your dealer for a description of the functions and operations of the remote control.
ee
aa
dd
dd
ee
ff
gg
aa
bb
ff
cc
gg
hh
bb
cc
aa
ff
ii
cc
ii
ob00329

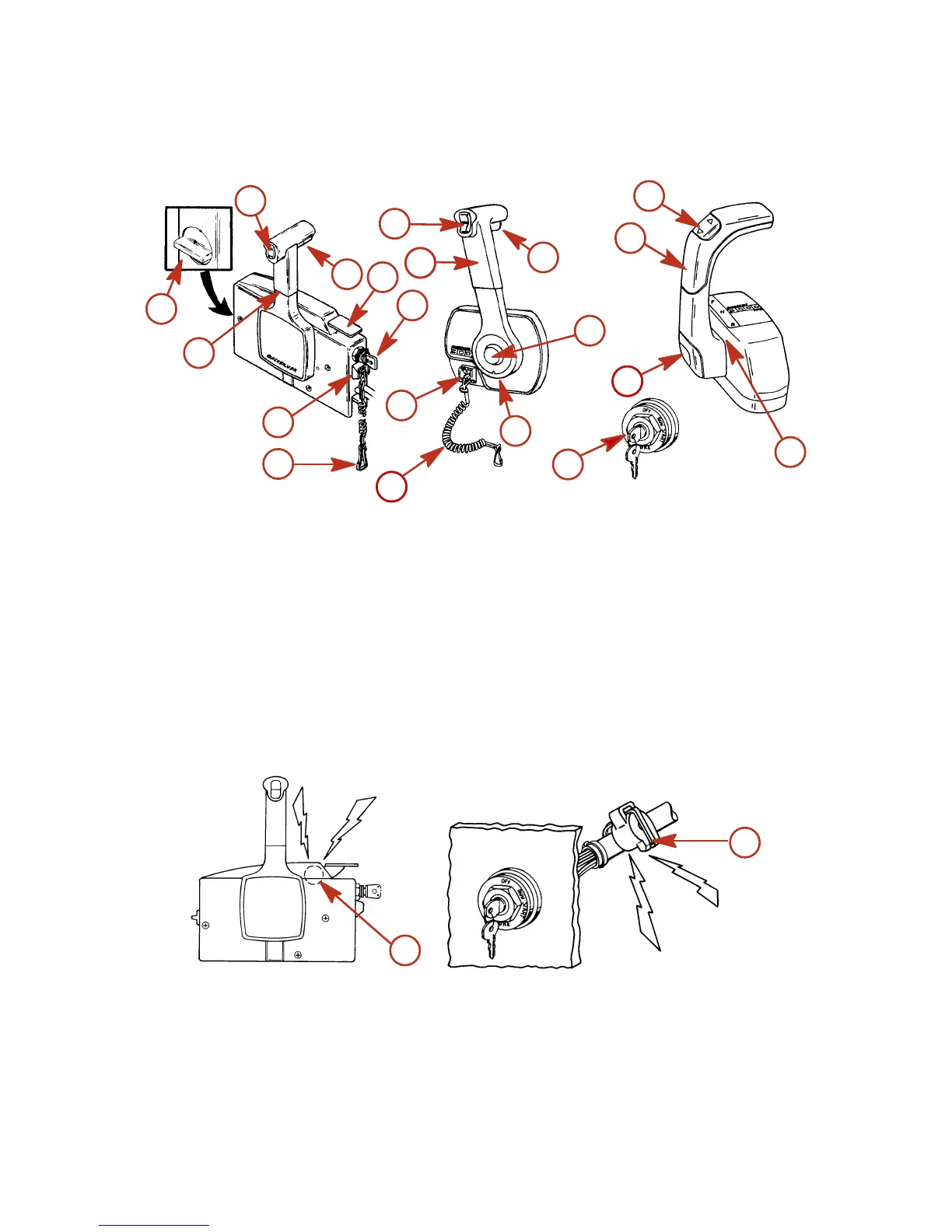

a - Control handle ‑ forward, neutral, reverse.
b - Neutral release lever
c - Trim/tilt switch (if equipped). ‑ Refer to
Features & Controls ‑ Power Trim and Tilt.
d - Lanyard stop switch ‑ Refer to General
Information ‑ Lanyard Stop Switch.
e - Lanyard ‑ Refer to General Information ‑
Lanyard Stop Switch.
f - Throttle friction adjustment Console controls
require cover removal for adjustment.
g - Ignition key switch ‑ "OFF," "ON," START."
h - Fast idle lever ‑ Refer to Operation ‑ Starting
the Engine.
i - Throttle only button ‑ Refer to Operation ‑
Starting the Engine.
Warning System
The outboard warning system incorporates a warning horn inside the boat. The warning horn may be located inside
the remote control or connected to the ignition key switch.
a
b
ob00662
a - Horn inside remote control b - Horn connected to ignition key switch
WARNING HORN SIGNALS
When the key switch is turned to the "ON" position, the horn will turn on for a moment as a test to show the horn
is working.
