Mercury 4-STROKE User Manual

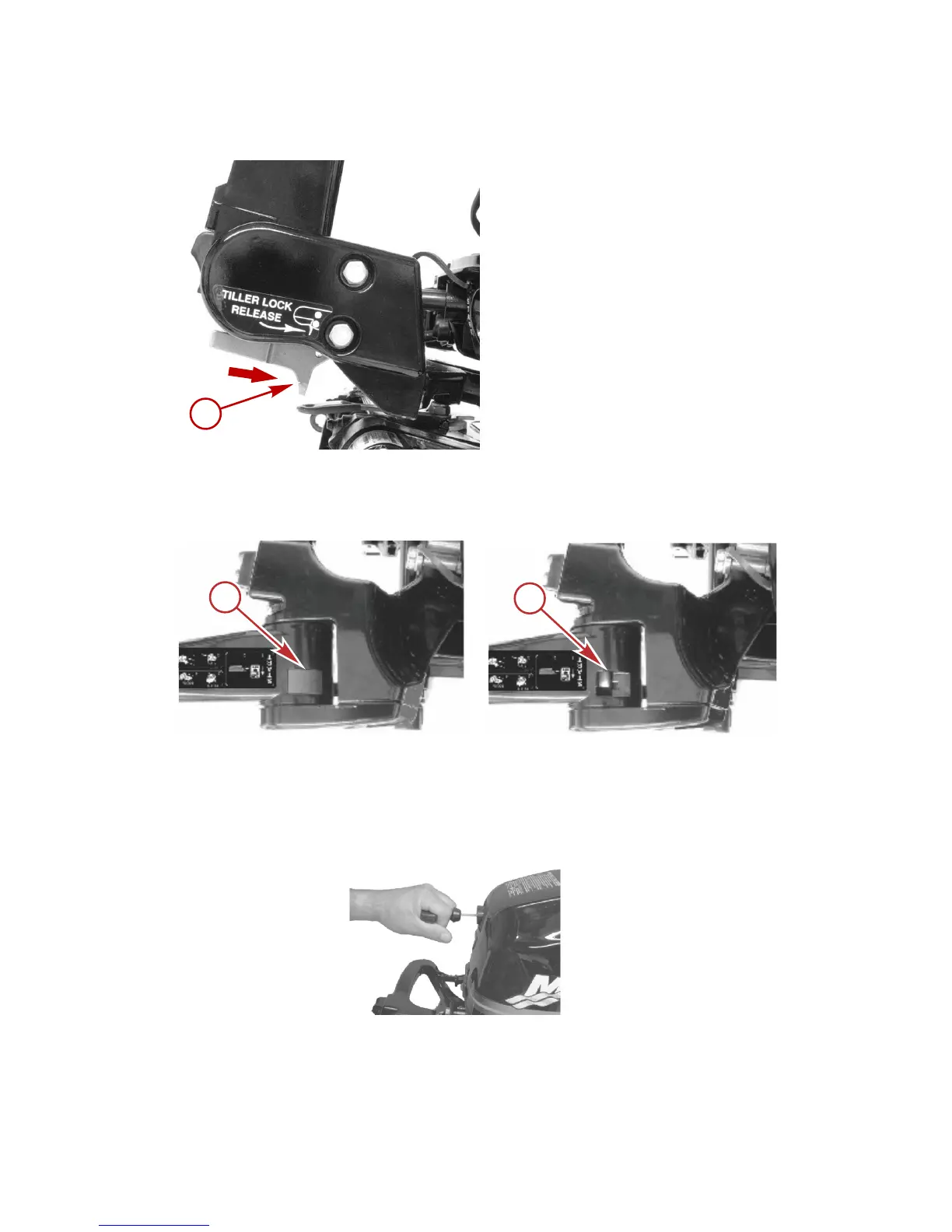

• Tiller lock release lever ‑ Push the lever to move tiller handle from one
position to another.
a - Tiller lock release lever
• Tiller handle lock cap ‑ Remove the lock cap on top of the tiller handle to
lock in the up position. Push the tiller lock release lever to release the
handle from the locked up position.
a - Lock cap
b - Locking mechanism
• Starter rope ‑ Pulling the starter rope cranks the engine over for starting.
28536
a
3274
b
a
57672
FEATURES AND CONTROLS
eng 51

Mercury 4-STROKE Specifications

General

Engine Type	4-Stroke
Fuel Type	Gasoline
Cooling System	Water-cooled
Ignition System	CDI (Capacitor Discharge Ignition)
Starting	Manual / Electric
Shaft Length	15", 20", 25"
Max Power	Varies by model
Full Throttle RPM Range	Varies by model
Fuel Induction System	EFI / Carbureted
Steering	Remote / Tiller
Weight	Varies by model
Fuel Tank Capacity	Varies by model, some models include external tank
Oil Capacity	Varies by model
