Mercury 4-STROKE User Manual

•

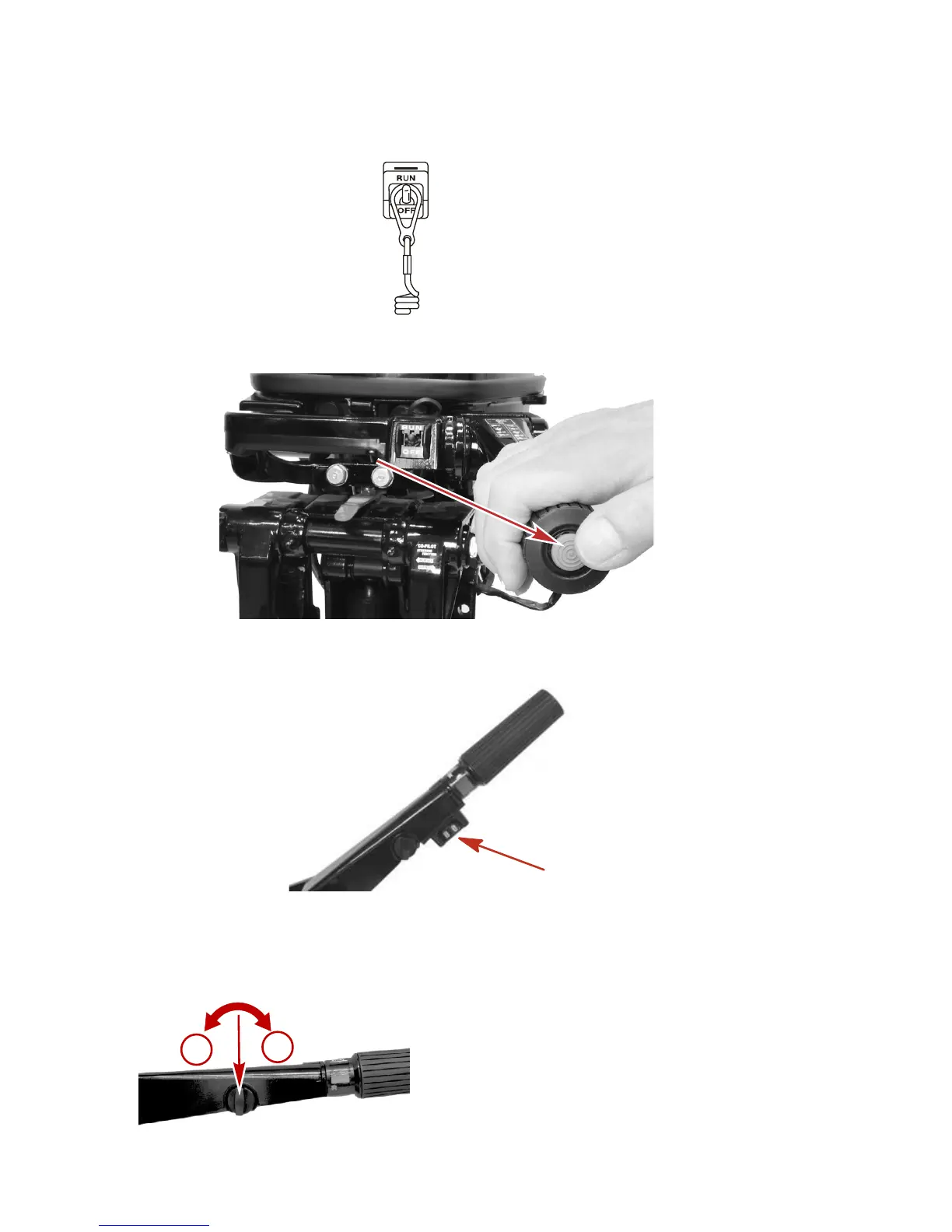

Lanyard stop switch ‑ Refer to General Information ‑ Lanyard Stop
Switch.
19791
• Engine stop switch ‑ Push in to stop the engine.
57673
• Power tilt switch ‑ Push to tilt engine up/down.
4639
• Throttle grip friction knob ‑ Turn the friction knob to set and maintain the
throttle at desired speed. Turn the knob clockwise to tighten friction or turn
the knob counterclockwise to loosen friction.
a - Loosen friction (counterclockwise)
b - Tighten friction (clockwise)
a
b
28542
FEATURES AND CONTROLS
52 eng

Mercury 4-STROKE Specifications

General

Engine Type	4-Stroke
Fuel Type	Gasoline
Cooling System	Water-cooled
Ignition System	CDI (Capacitor Discharge Ignition)
Starting	Manual / Electric
Shaft Length	15", 20", 25"
Max Power	Varies by model
Full Throttle RPM Range	Varies by model
Fuel Induction System	EFI / Carbureted
Steering	Remote / Tiller
Weight	Varies by model
Fuel Tank Capacity	Varies by model, some models include external tank
Oil Capacity	Varies by model
