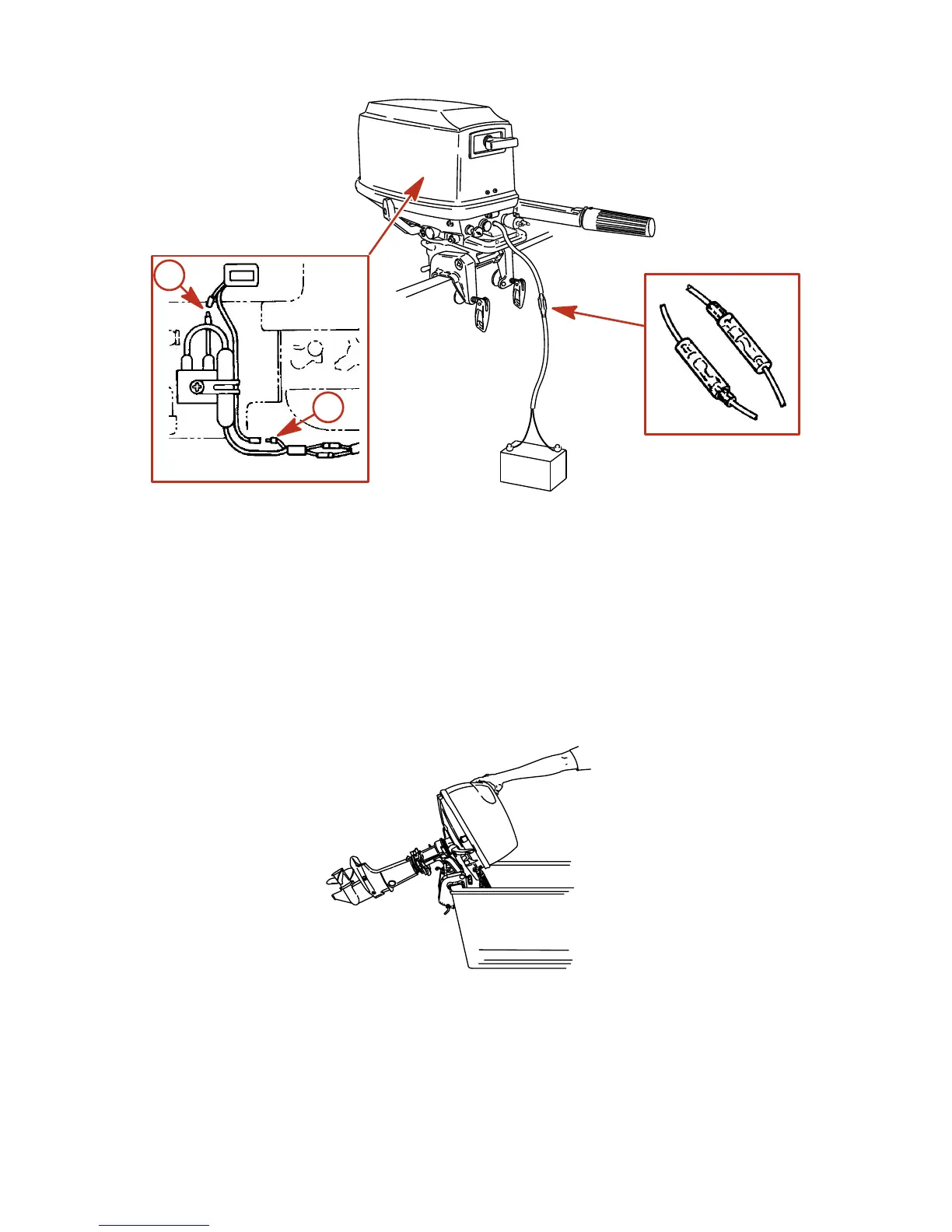

a - Yellow/red alternator leads
IMPORTANT: If the battery charging alternator feature is not being used, disconnect the two yellow/red alternator
leads located on the side of the engine.
Any accessories such as lights, horns, etc., should be properly fused and installed with connections attached
directly to the battery terminals.
Tilting Outboard
TILTING TO FULL UP POSITION
1. Stop the engine. Shift the outboard into forward gear.
2. Take hold of the top cowl grip and raise outboard to the full up position.
3. The spring loaded tilt lock lever will engage automatically and lock the outboard in full up position.
LOWERING TO RUN POSITION
1. Raise the outboard and pull up on the tilt release lever. Gently lower outboard down.
