Mercury 4 - Lubrication Points

MAINTENANCE
38
ob01289

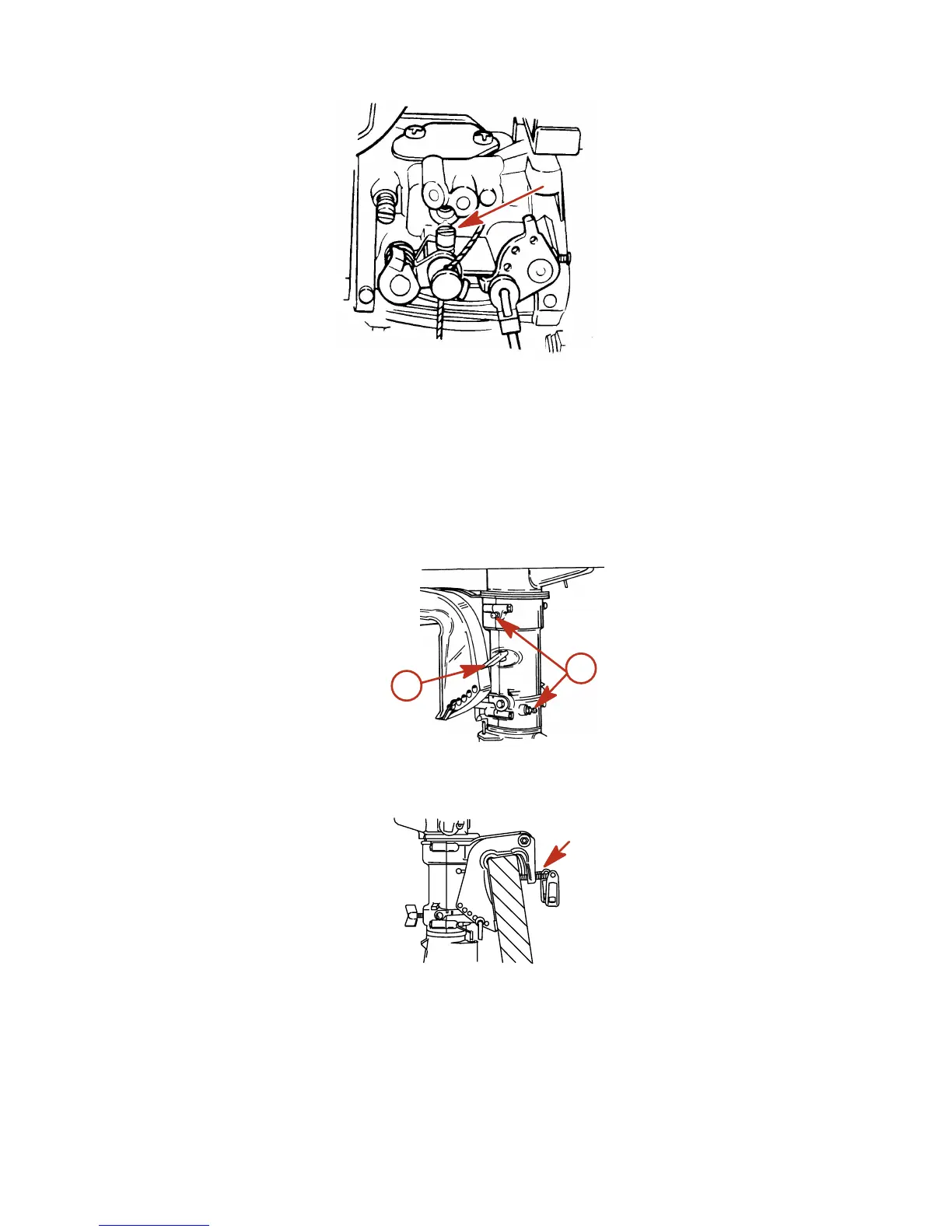

HIGH SPEED MIXTURE ADJUSTMENT
The carburetor is equipped with a standard size high speed fixed jet that is replaceable for operation at higher
elevations.
Lubrication Points
1. Lubricate the following with Quicksilver or Mercury Precision Lubricants 2-4-C with Teflon or Special Lubricant
101.
• Co-Pilot - Lubricate threads.
• Swivel Bracket - Lubricate through fittings.
a
b
ob01290
a - Co-pilot b - Swivel bracket
• Transom Clamp Screws - Lubricate threads.
ob00492
NOTE: Lubricating the tiller handle bushing and shift handle detent requires disassembly of the product. These
points should be lubricated at least once a year by an authorized dealer.
• Tiller Handle Rubber Bushing - Lubricate internal diameter.
