OUTBOARD INSTALLATION

106

NOTE: The inside holes on the transom reinforcement plate are

for the lower transom bolts and the outside holes are for the upper

transom bolts.

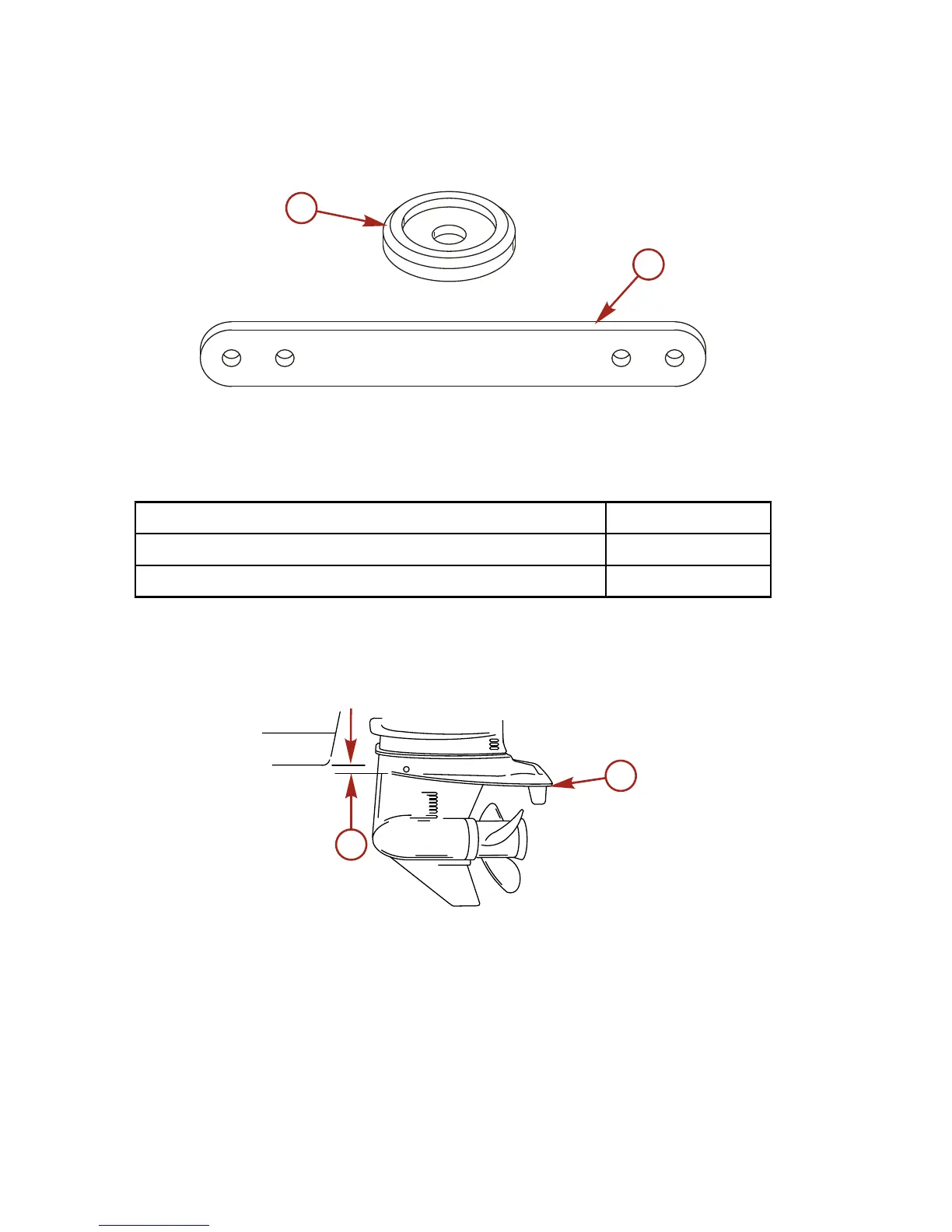

20860

a - Large transom washer

b - Transom reinforcement plate

Description Part Number

Large transom washer 67‑896392

Transom reinforcement plate 67‑896305

Fastening the Outboard to the Transom

1. Install the outboard so that the anti‑ventilation plate is in‑line

or within 25 mm (1 in.) below the bottom of the boat.

8045

a - Anti‑ventilation plate

b - 25 mm (1 in.)

2. Apply marine sealer to the shanks of bolts, not the threads.

3. Fasten the outboard with the provided mounting hardware.

Tighten the locknuts to the specified torque.
