Mercury 50 4-Stroke - Page 125

OUTBOARD INSTALLATION
117

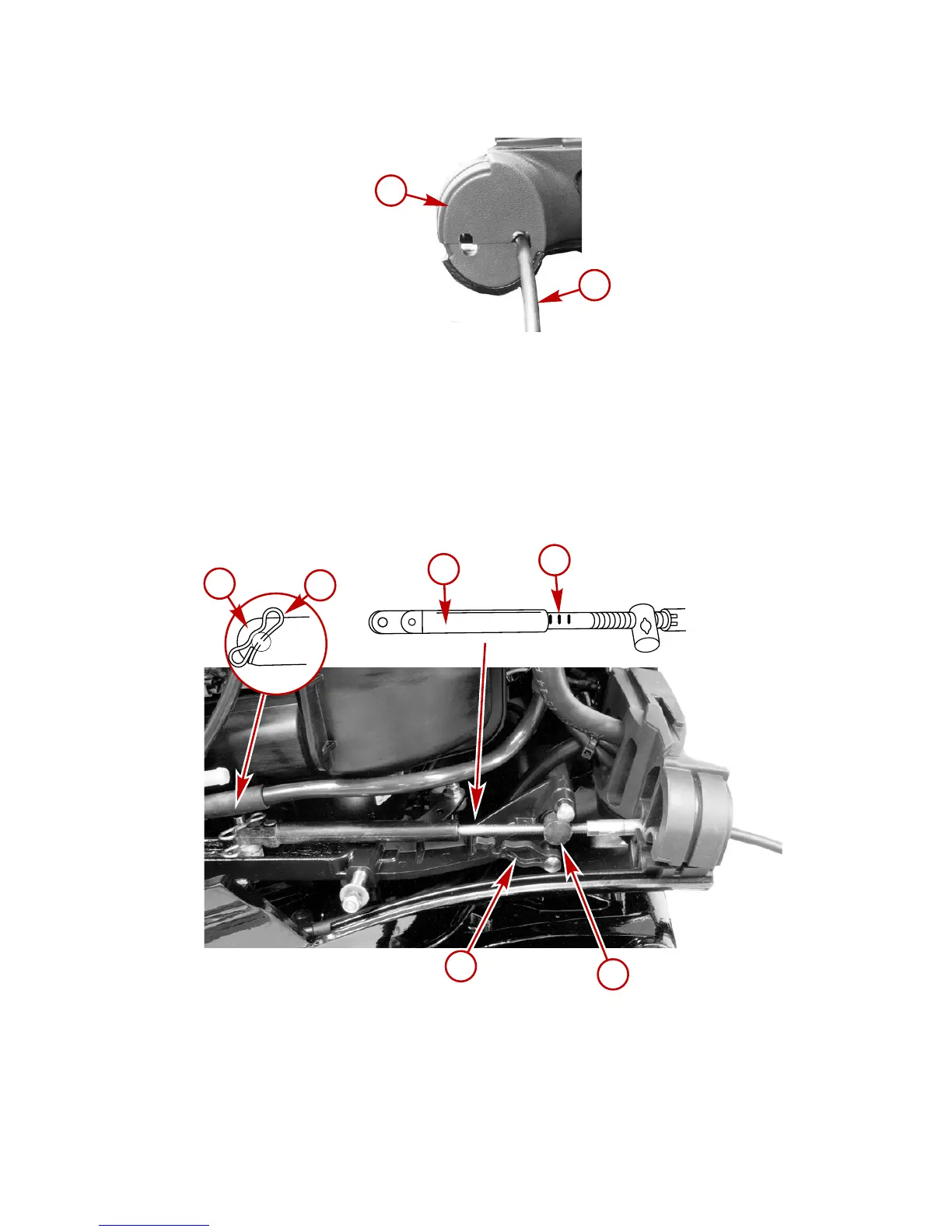

4. Fit the throttle cable through the rubber grommet.
a
b
28489
a - Rubber grommet
b - Shift cable
5. Attach the shift cable to the shift lever with a cotter pin retainer.
6. Adjust the cable barrel so the center mark on the cable is
aligned with the end guide when the cable barrel is placed in
the barrel receptacle.
b
a
d
e
a
c
28487
a - Cable end guide
b - Cotter pin retainer
c - Center mark
d - Cable barrel
e - Barrel latch
7. Place the cable barrel into the barrel receptacle.
