OUTBOARD INSTALLATION
118

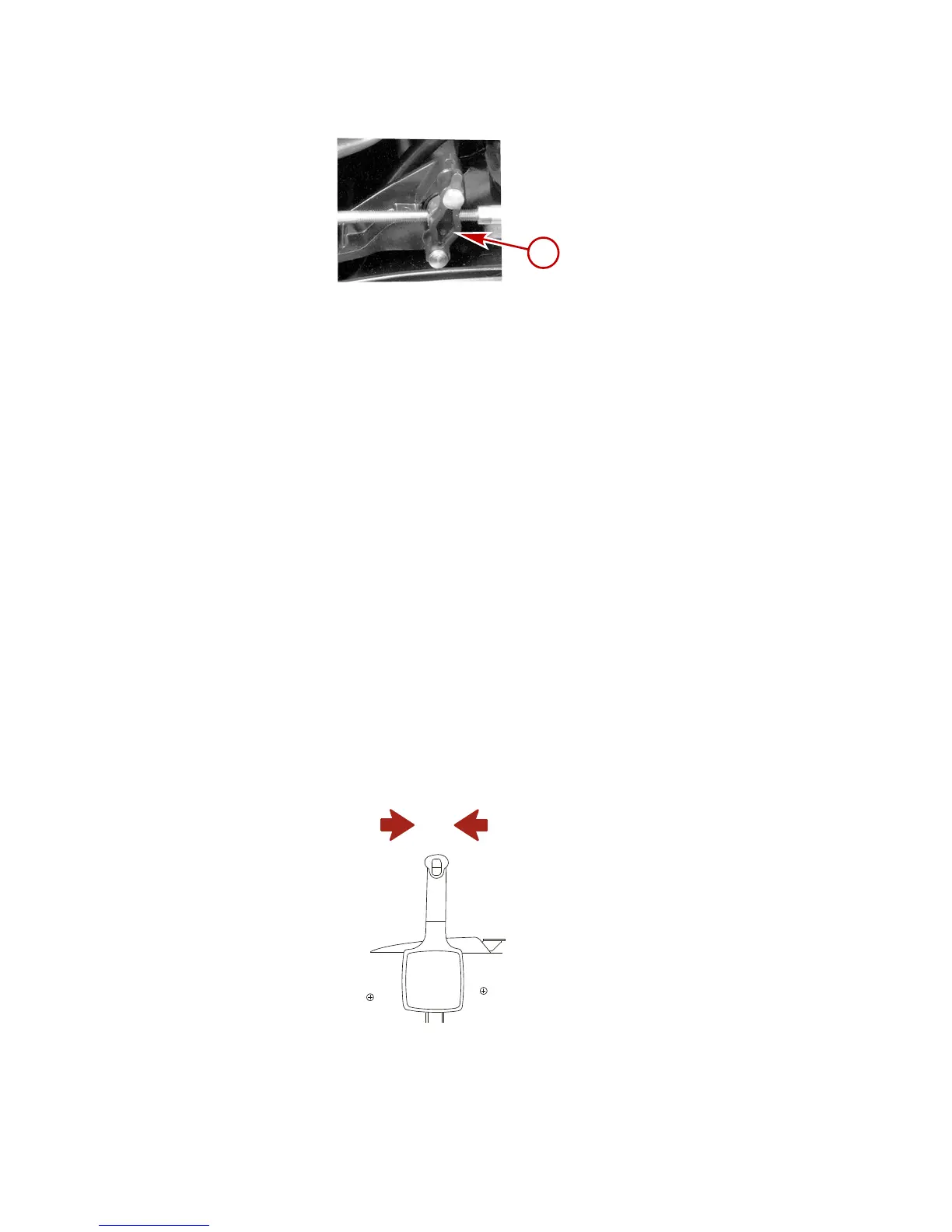

8. Lock in barrel in place with the barrel latch.
a
28488
a - Barrel latch
9. Check shift cable adjustments as follows:
a. Shift remote control into forward. The propeller shaft should
be locked in gear. If not, adjust the barrel closer to the cable
end guide.
b. Shift remote control into reverse while turning propeller.
The propeller shaft should be locked in gear. If not, adjust
the barrel away from the cable end guide. Repeat steps a
through c.
c. Shift remote control back to neutral. The propeller shaft
should turn freely without drag. If not, adjust the barrel
closer to the cable end guide. Repeat steps a through c.
THROTTLE CABLE INSTALLATION
Install the cables into the remote control following the instructions
provided with the remote control.
1. Position the remote control into neutral.
N
26838

Mercury 50 4-Stroke Specifications

General

Engine Type	4-Stroke
Horsepower	50 hp
Cylinders	3
Starting System	Electric
Steering	Remote
Displacement	747 cc
Fuel Induction System	EFI
Alternator Amp	18 amp
Shaft Length	20 in
Full Throttle RPM Range	5000-6000 RPM
WOT Range	5000-6000 RPM
Fuel Tank Capacity	External Tank Required
