Mercury Four Stroke - Throttle Cable Installation

MAINTENANCE
Page 1D-14 90-888465 JUNE 2002
Throttle Cable Installation
Install cables into the remote control following the instructions provided with the remote con-
trol.
1. Position remote control into neutral.
N
2. Install throttle cable to the throttle arm with hairpin cotter.
3. Adjust the cable barrel until the alignment mark on the cam lines up with center of the
roller.
4. Place cable barrel into retainer.
5. Lock the cable barrels in place with the cable latch.
a
b
c
d
e
f

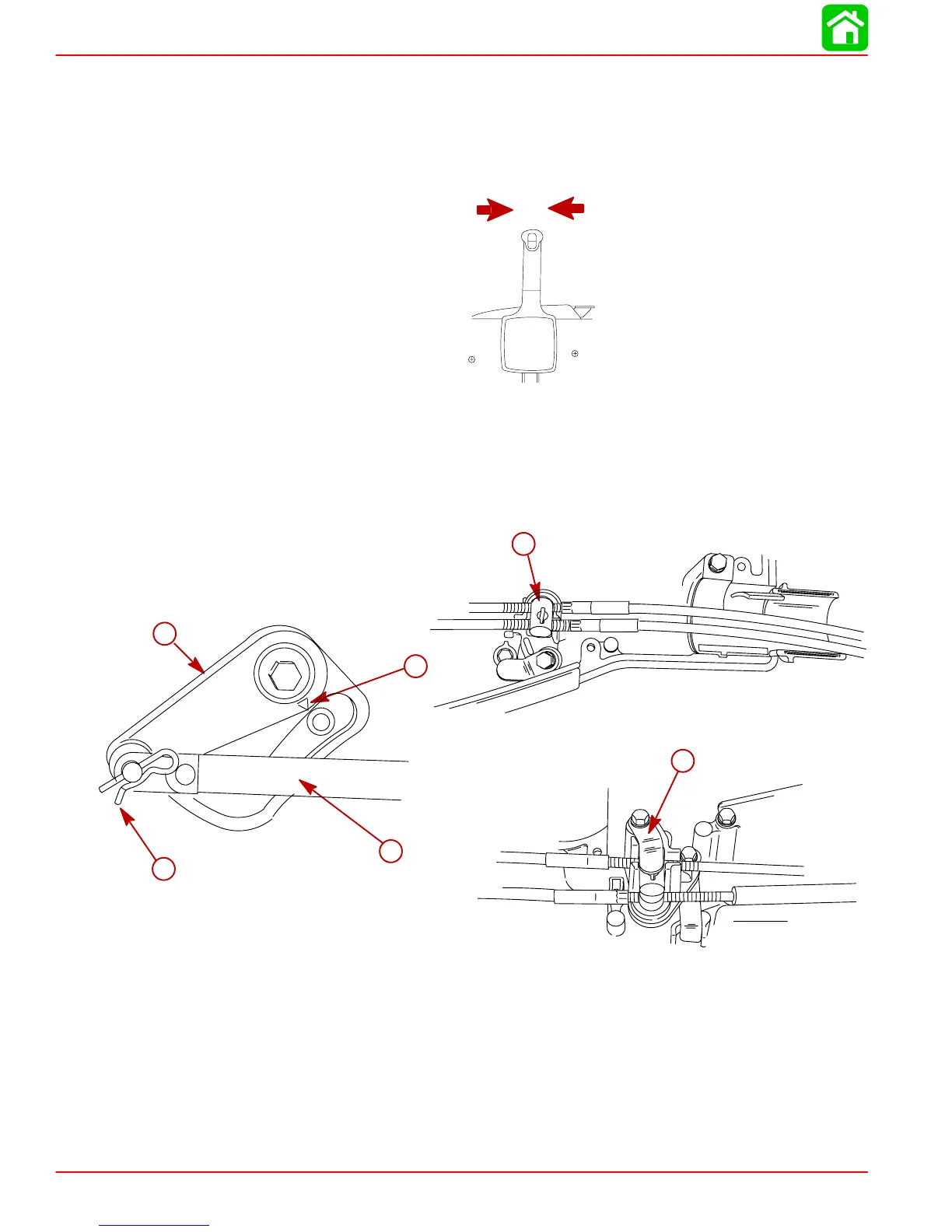

a-Throttle Cable
b-Hairpin Cotter
c-Cable Barrel
d-Throttle Cam
e-Alignment Mark
f-Cable Latch
