OUTBOARD MOTOR INSTALLATION
90-888465 JUNE 2002 Page 1D-9
Battery Cable Connections to the Engine
Route battery cables through the front cable clamp. Connect the battery cables to the termi-
nals on the engine as shown.
NOTE: Bolts for fastening the battery cables terminals are located in the same packaging
kit that contains the front cable clamp.
(+)
(–)
a
(+) (–)
c
b
d

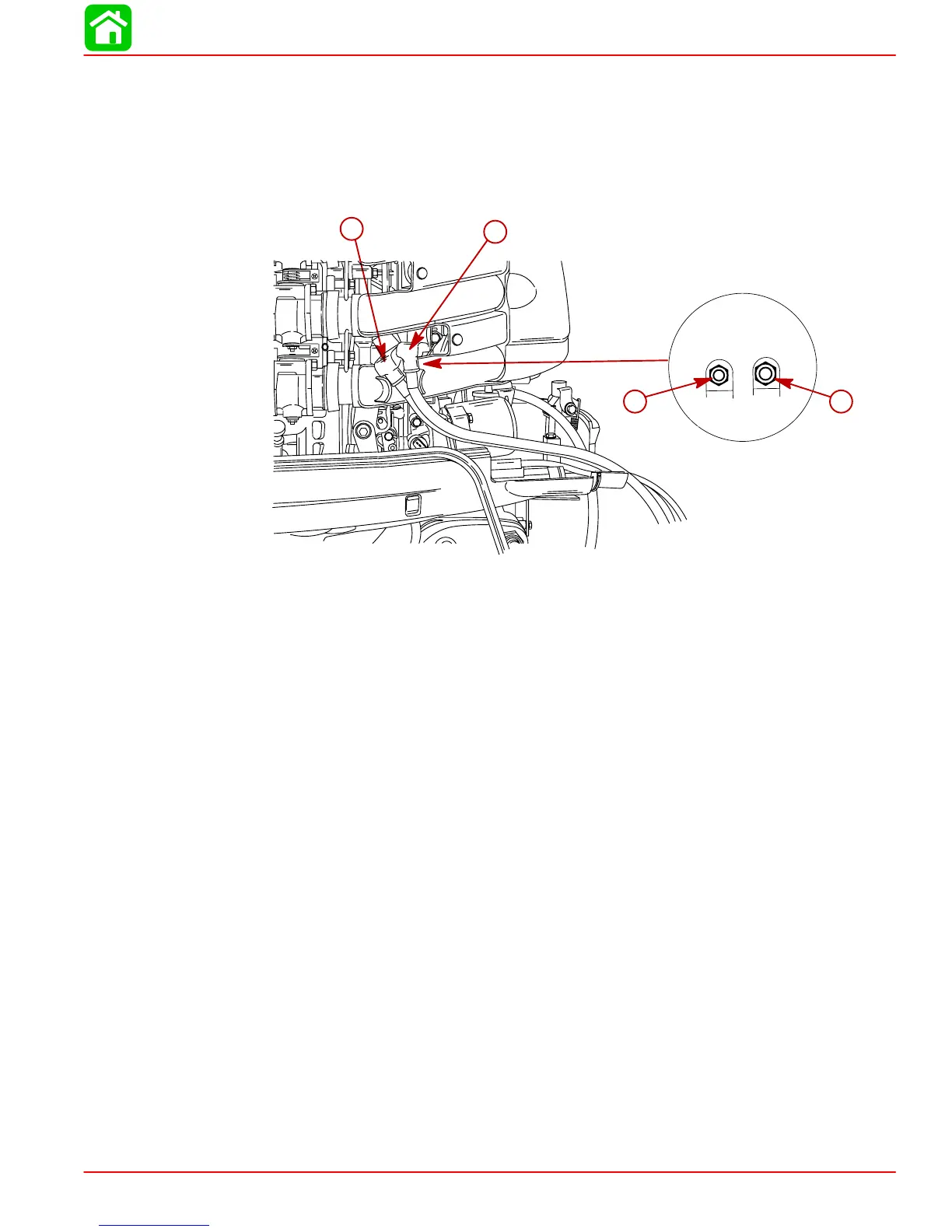

a-Battery Cable – Red Sleeve (Positive)
b-Battery Cable – Black Sleeve (Negative)
c-Screw M6 x 13 (10–821300 12) – Torque to 8 Nm (71 lb in.)
d-Screw M8 x 20 (10–818934 20) – Torque to 18 Nm (159 lb in.)
