MAINTENANCE
Page 1D-6 90-888465 JUNE 2002

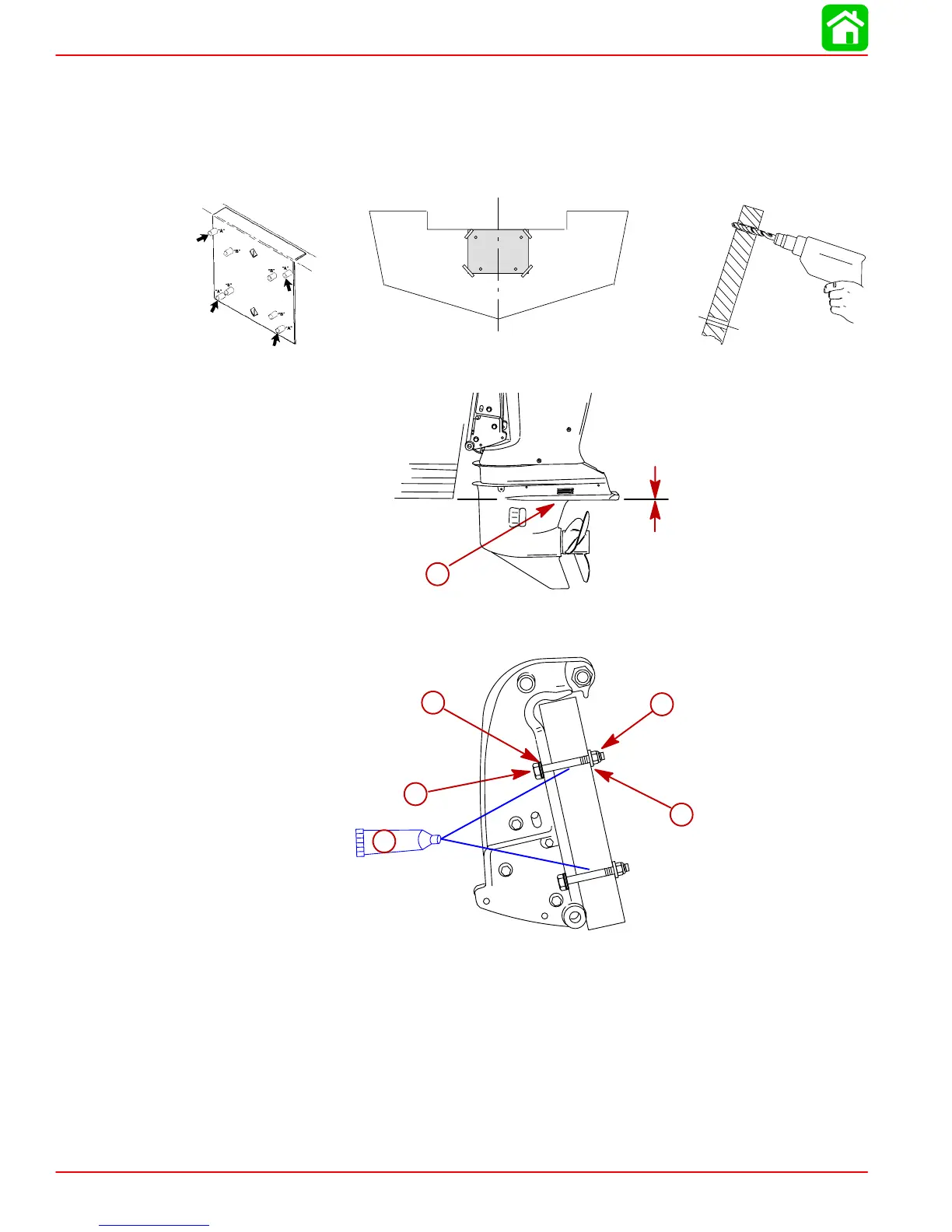

Installing Outboard
1. Use transom drilling fixture (91-98234A2) or attach (tape) engine mounting template (lo-
cated in the installation manual) to boat transom.
2. Mark and drill four 17/32 in. (13.5mm) mounting holes.
3. Install the outboard so that the anti-ventilation plate is in-line with the bottom of the boat.
a
a-Anti-Ventilation Plate
4. Fasten outboard with provided mounting hardware shown.
c
a
b
d
e
a-1/2 in. Diameter Bolts (4)
b-Flat Washers(4)
c-Locknuts (4)
d-Flat Washers(4)
e-Marine Sealer - Apply to Shanks of Bolts, Not Threads
