OUTBOARD MOTOR INSTALLATION
90-888465 JUNE 2002 Page 1D-7
Front Cable Clamp Assembly
IMPORTANT: Sufficient slack must exist in engine wiring harness, battery cables,
and fuel hose routed between cable clamp and engine attachment point, to relieve
stress.
1. Bundle the fuel line, battery cables and wiring together and wrap with the piece of foam
(provided) as shown. Secure the wiring, battery cables, fuel line and foam together with
sta-straps.
2. Push the flap down over the top of the shift and throttle cable.
3. Lay the wrapped foam over the top of flap.

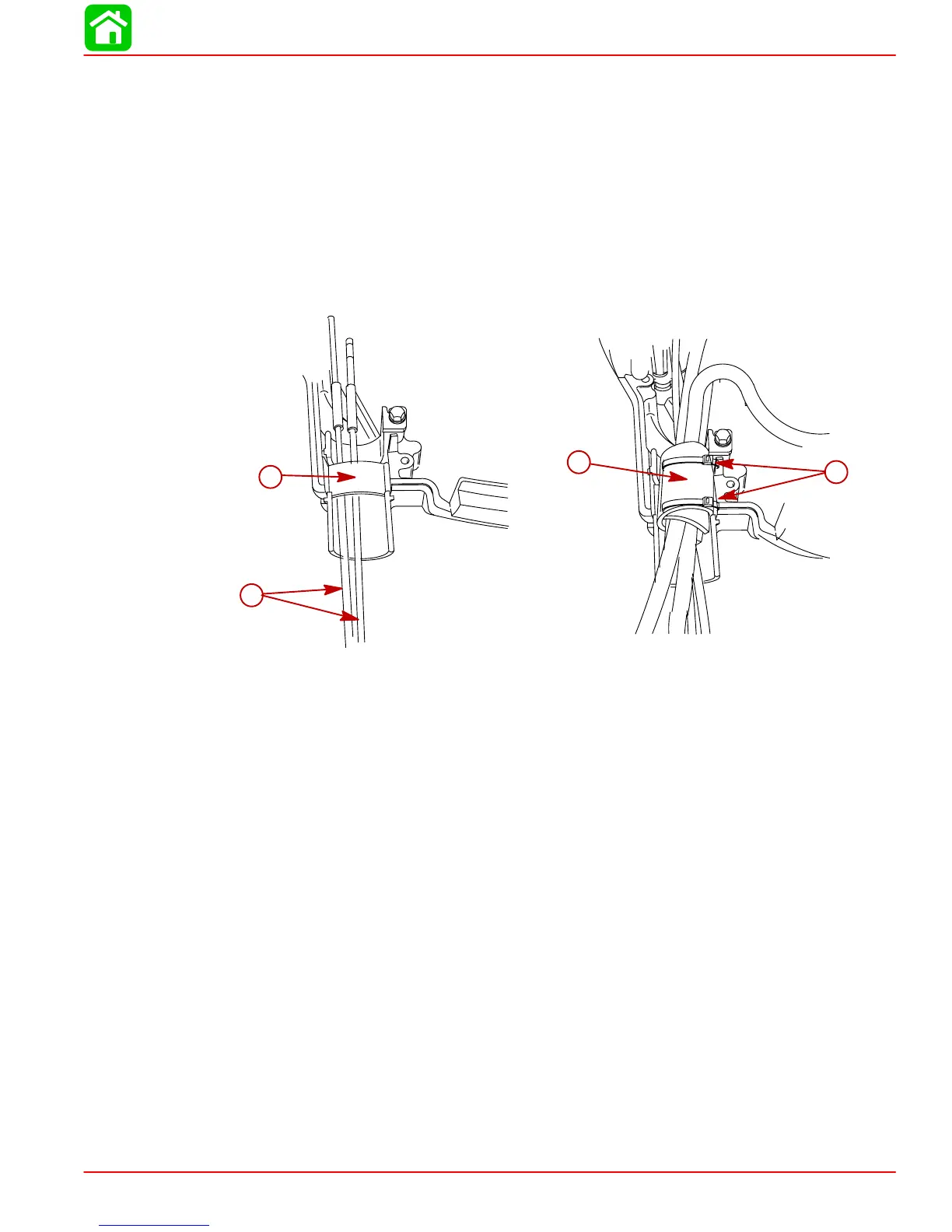

a
b
c
d
a-Shift and throttle cables
b-Flap - Position over the shift and throttle cables
c-Foam
d-Sta-Straps
