3. Align rear engine mounts with inner transom plate mounts. Set engine onto front mounts
and inner transom plate mounts, while simultaneously aligning exhaust elbow with ex-
haust tube. (Do not relieve hoist tension.)nd
IMPORTANT: Engine attaching hardware must be installed in sequence shown.
4. Install both rear engine mounting bolts and hardware as shown. Torque to 35-40 lb-ft
(47-54 Nm).
22032
a
c
b
d
g
f
e

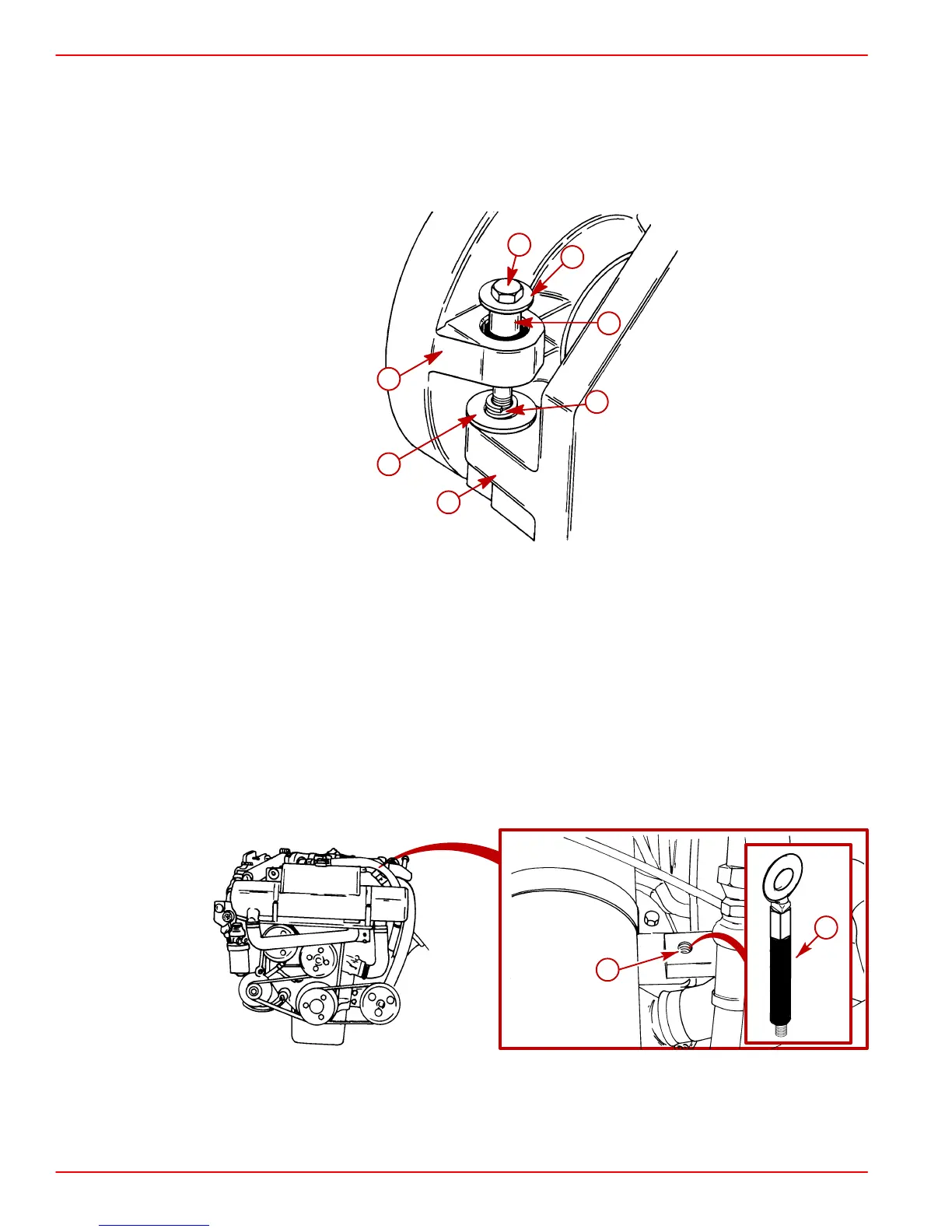

a-Rear Engine Mount
b-Inner Transom Plate Mount
c-Bolt
d-Washer
e-Spacer
f-Fiber Washer
g-Double-Wound Lockwasher
5. Relieve hoist tension and disconnect sling from engine lifting eyes.
NOTE: Installing Engine Lifting Eye Tool shown will help equalize load on hoist during align-
ment procedure.
6. Install lifting eye tool into metal bar with threaded hole near port end of engine oil cooler.
75956
76021
71961
b
a
a-Lifting Eye Tool
b-Threaded Hole
