D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 43 of 90

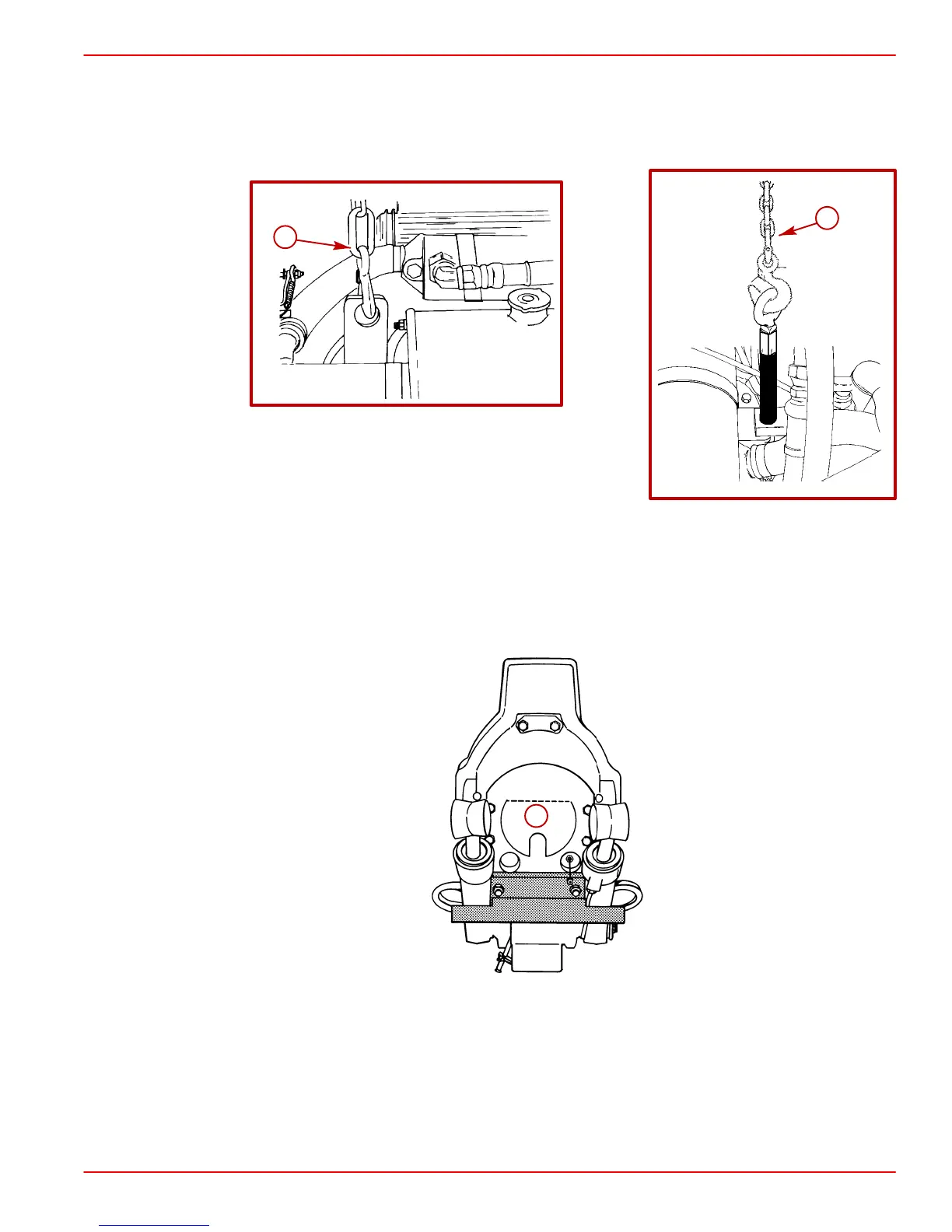

7. Attach chain and hooks from suitable engine sling to starboard front lifting eye and port
mounted Engine Lifting Eye Tool. Attach a suitable hoist to this sling.
NOTE: Installing sling between specified lifting eyes will help equalize load on hoist during
alignment procedure.
76012
a
b
71961
a-Engine Sling In Starboard Lifting Eye
b-Engine Sling In Port Mounted Engine Lifting Eye Tool
8. Align engine as follows:
a. Fold out perforated area in bell housing dust cover.
22027
a
a-Dust Cover
