IMPORTANT: The position of the Trim-In Limit Pin on the Bravo Three sterndrive unit
should only be changed after the boat has been properly tested. Refer to statement
at the front of this manual entitled; “Bravo Three Notice: Trim-In Limit Pin”.
IMPORTANT: To aid in installing rubber bushings, use a water and soap solution. DO
NOT use oil or grease.

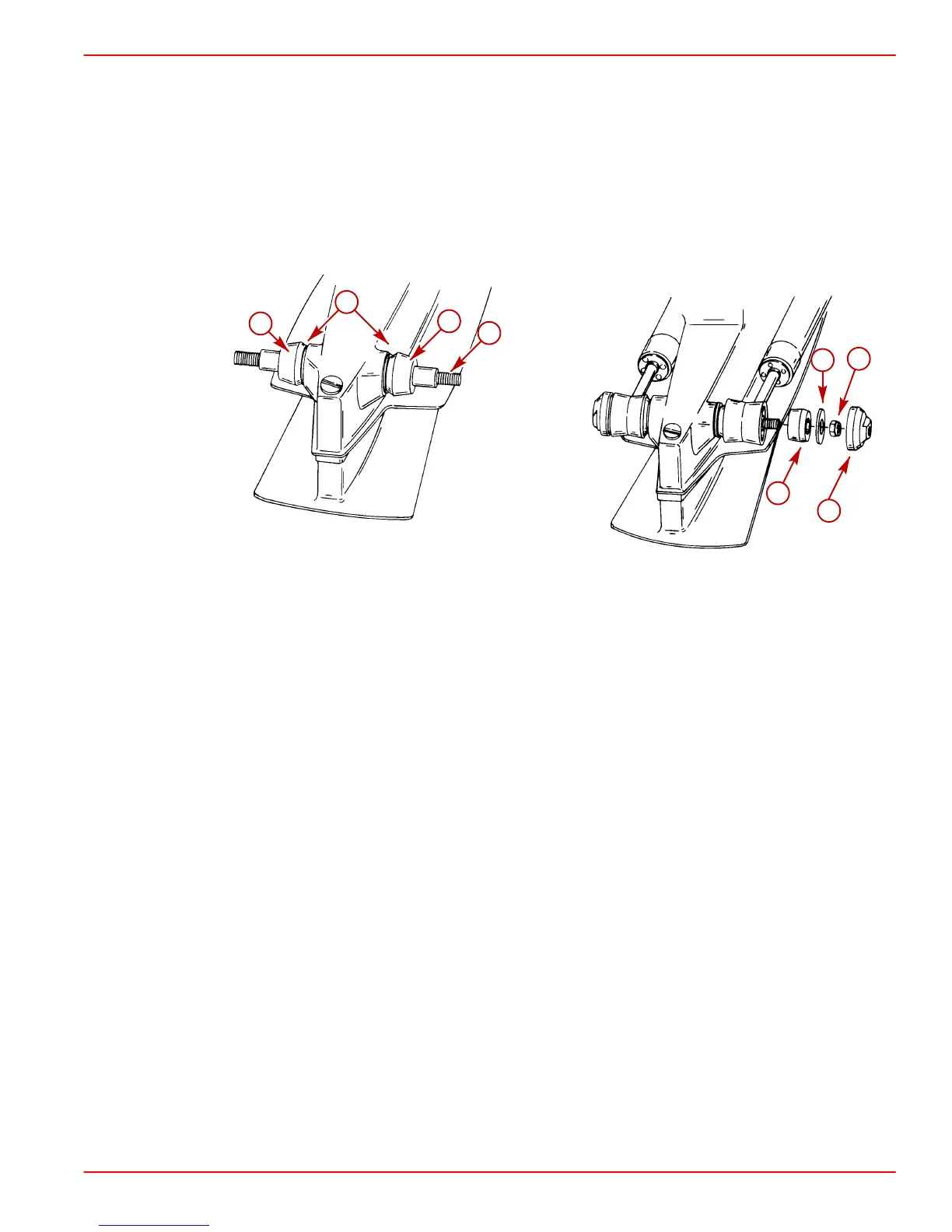

16. Install trim cylinders on aft end of drive unit with hardware as shown. Coat anchor pin
threads with 2-4-C Marine Lubricant and tighten nuts until they bottom. Install
plastic caps and tighten hand tight only.
71668
71669
a
b
c
c
c
d
e
f
a-Aft Anchor Pin
b-Large l.D. Flat Washers (2)
c-Rubber Bushings (4)
d-Small l.D. Flat Washers (2)
e-Locknuts (2)
f-Plastic Caps (2)
17. Place drive unit serial number decal as described in “General Information”.
