Mercury MerCruiser 5.0 TKS

Section 6 - Storage
90-899883179 OCTOBER 2007 Page 89

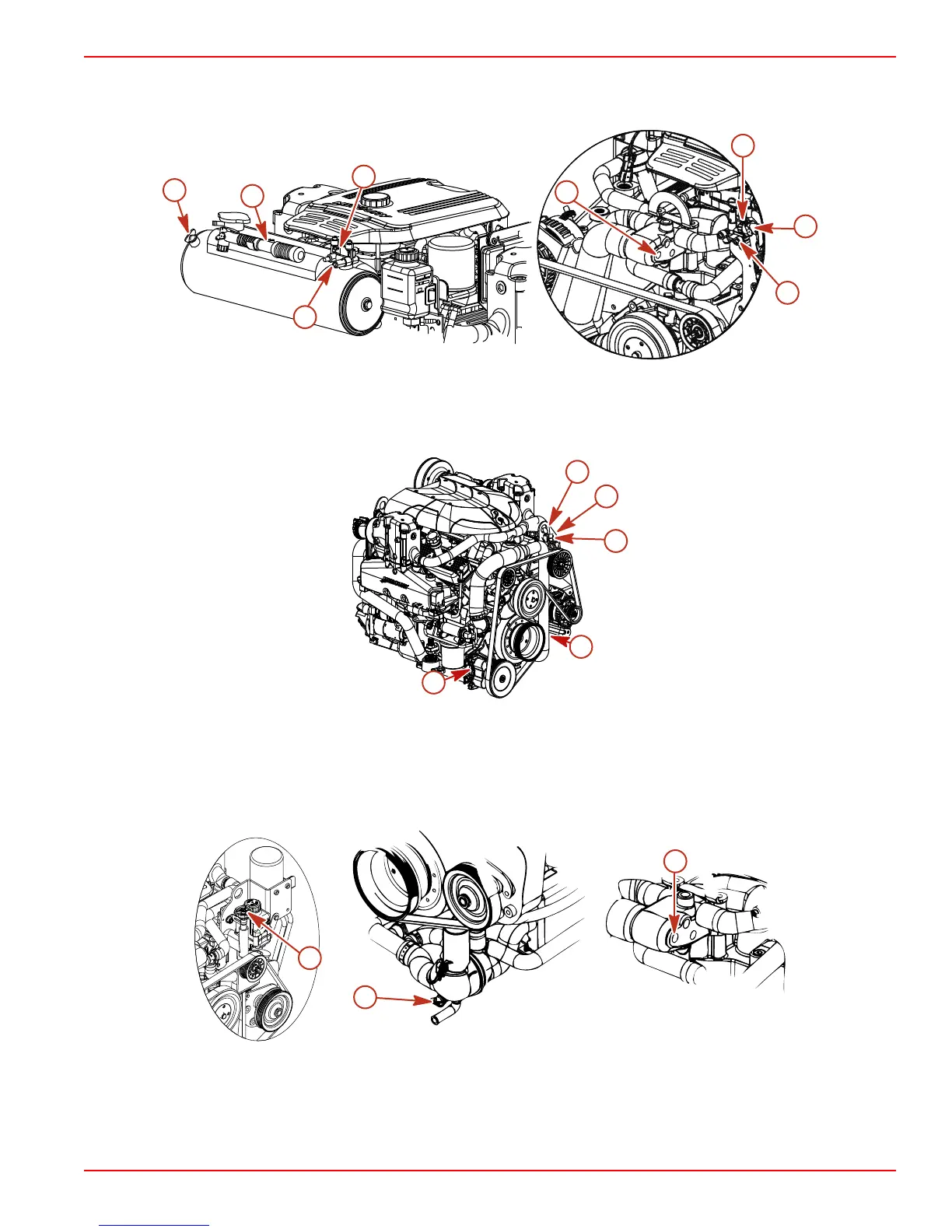

Drain System Identification
AIR ACTUATED SINGLE POINT DRAIN SYSTEM
6124
a
b
c
d
6125
a
b
c
d
Closed Cooled Models Seawater Cooled Models
a - Blue drain plug location
b - Blue air pump
c - Air manifold
d - Green indicators
21125
a
b
c
d
d
Scorpion Models
a - Blue air pump
b - Air manifold
c - Green indicators
d - Blue drain plug locations
MANUAL SINGLE POINT DRAIN SYSTEM
b
a
b
6128
a - Blue handle
b - Blue drain plug location
