Mercury XR2 User Manual

21
TRANSPORTING
odc1

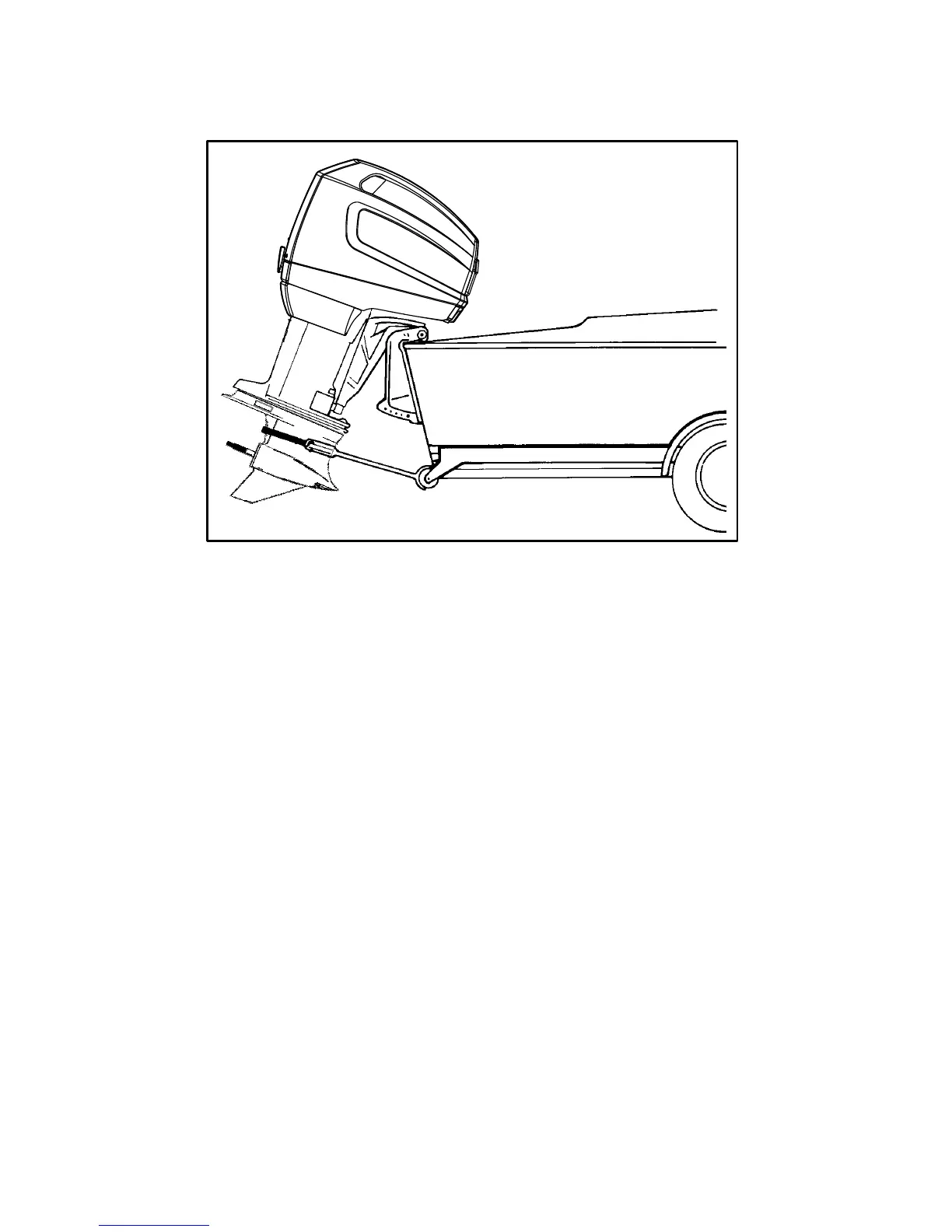

Trailering Boat/Outboard
Trailer your boat with the outboard tilted down (vertical operating po-
sition).
If additional ground clearance is required, the outboard should be
tilted up using an outboard support bar. Additional clearance may be
required for railroad crossings, driveways and trailer bouncing.
IMPORTANT: Do not rely on the power trim/tilt system or tilt
support lever to maintain proper ground clearance for trailer-
ing. The outboard tilt support lever is not intended to support
the outboard for trailering.
Shift the outboard to forward gear. This prevents the propeller from
spinning freely.

Mercury XR2 Specifications

General

MODEL	XR2
Horsepower	180 (134kw)
Propshaft Kilowatts1	194
Full Throttle RPM Range	6000-7000
Idle RPM in Forward Gear	650-750
Maximum Timing	25° BTDC
Idle Speed Pickup Timing	2° ATDC
Gear Ratio	1.87:1
Piston Displacement	122 cu. in. (2.0L/1998cc)
Bore	3.125 in. (79.5 mm)
Stroke	2.65 in. (67 mm)
Firing Order	1-2-3-4-5-6
Recommended Spark Plug	NGK-BUHW (P/N 33-97180)
Fuel Pressure	5 - 6 psi
Recommended Gasoline	Refer to Fuel Section
Recommended Oil	Refer to Fuel Section
Recommended Gear Case Oil	Quicksilver Hi-Performance Gear Lube (92-816026A4)
Gear Case Lubricant Ca- pacity	22.5 fl. oz. (666 ml)
Charging System Output	16 amps @ 7000 RPM
Battery Rating	Minimum reserve capacity rating of 100 minutes and CCA of 350
Water Pres. @ WOT	15 PSI (103.4 kPa)

Weight and Dimensions

Weight	350 lbs. (159 kg)
Transom Height	Short Shaft = 15” (381mm) Long Shaft = 20” (508mm)
