MAINTENANCE
2
1
4
3
Gear Case Lubrication
When adding or changing gear case lubricant, visually check for the
presence of water in the lubricant. If water is present, it may have
settled to the bottom and will drain out prior to the lubricant, or it may
be mixed with the lubricant, giving it a milky colored appearance. If
water is noticed, have the gear case checked by your dealer. Water
in the lubricant may result in premature bearing failure or, in freezing
temperatures, will turn to ice and damage the gear case.
Whenever you remove the fill/drain plug, examine the magnetic end
for metal particles. A small amount of metal filings or fine metal par-
ticles indicates normal gear wear. An excessive amount of metal fil-
ings or larger particles (chips) may indicate abnormal gear wear and
should be checked by an authorized dealer.

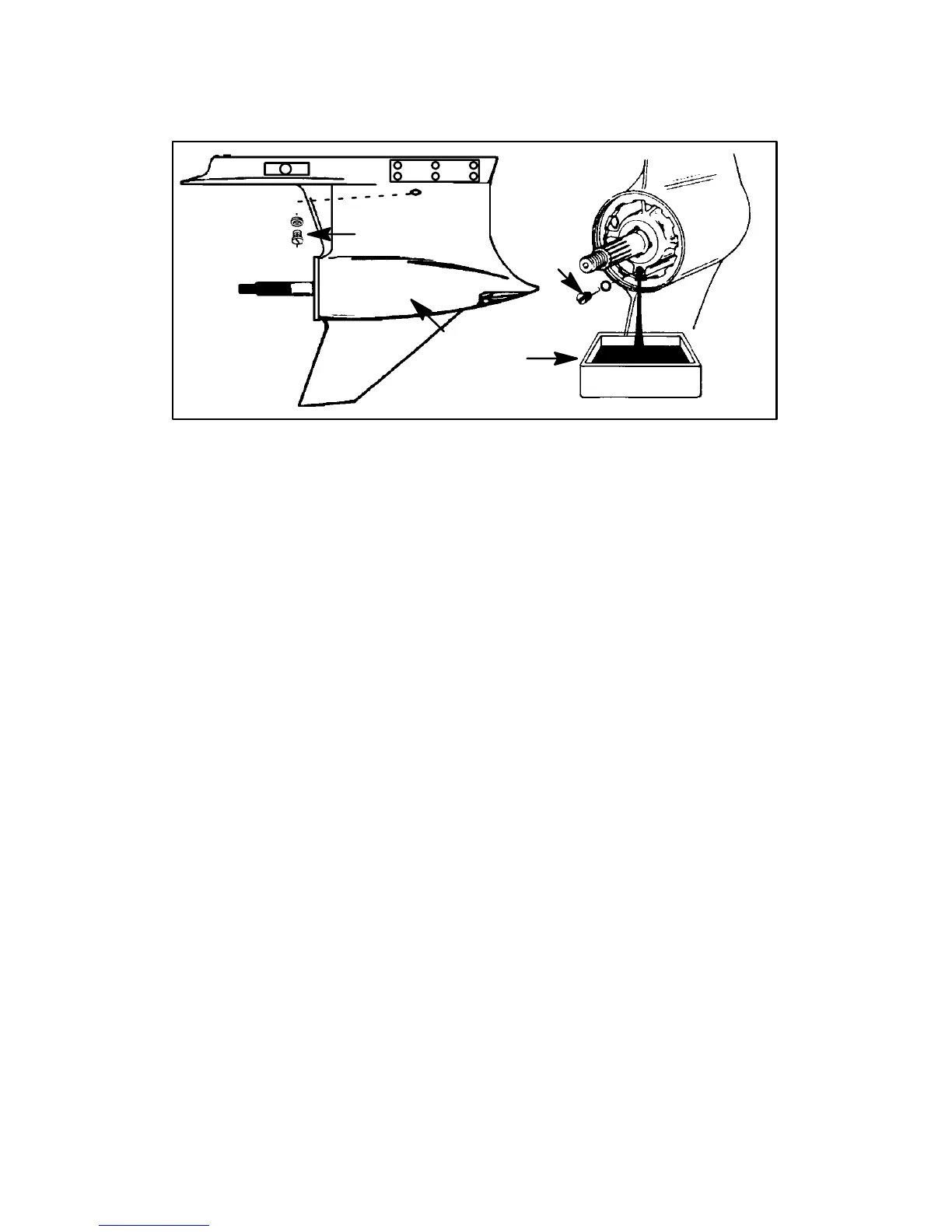

DRAINING GEAR CASE
1 Place outboard in a vertical operating position.
2 Place drain pan below outboard.
3 Remove vent plug.
4 Remove fill/drain plug and drain lubricant.
ohv8
GEAR CASE LUBRICANT CAPACITY
Gear case lubricant capacity is approximately 22.5 fl. oz. (666 ml).

Mercury XR2 Specifications

General

MODEL	XR2
Horsepower	180 (134kw)
Propshaft Kilowatts1	194
Full Throttle RPM Range	6000-7000
Idle RPM in Forward Gear	650-750
Maximum Timing	25° BTDC
Idle Speed Pickup Timing	2° ATDC
Gear Ratio	1.87:1
Piston Displacement	122 cu. in. (2.0L/1998cc)
Bore	3.125 in. (79.5 mm)
Stroke	2.65 in. (67 mm)
Firing Order	1-2-3-4-5-6
Recommended Spark Plug	NGK-BUHW (P/N 33-97180)
Fuel Pressure	5 - 6 psi
Recommended Gasoline	Refer to Fuel Section
Recommended Oil	Refer to Fuel Section
Recommended Gear Case Oil	Quicksilver Hi-Performance Gear Lube (92-816026A4)
Gear Case Lubricant Ca- pacity	22.5 fl. oz. (666 ml)
Charging System Output	16 amps @ 7000 RPM
Battery Rating	Minimum reserve capacity rating of 100 minutes and CCA of 350
Water Pres. @ WOT	15 PSI (103.4 kPa)

Weight and Dimensions

Weight	350 lbs. (159 kg)
Transom Height	Short Shaft = 15” (381mm) Long Shaft = 20” (508mm)
