Mercury XR2 User Manual

37
OPERATION
5
1-4
N
R
F

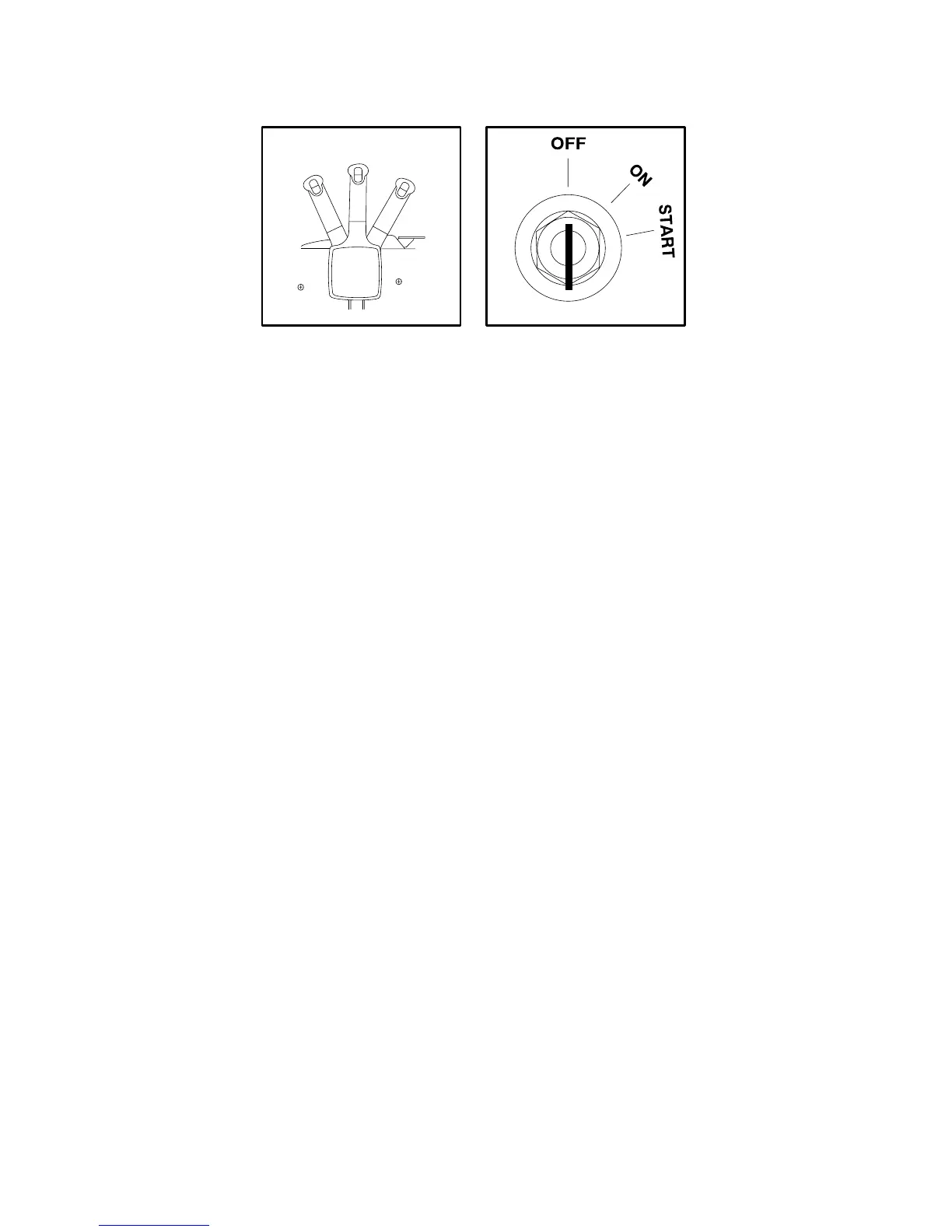

Gear Shifting
IMPORTANT: Observe the following:
• Never shift outboard into gear unless engine speed is at idle.
• Do not shift outboard into Reverse when the engine is not
running.
1 Your outboard has three gear shift positions to provide operation.
Forward (F), Neutral (out of gear) and Reverse (R).
2 When shifting, always stop at neutral position and allow the en-
gine speed to return to idle.
3 Always shift outboard into gear with a quick motion.
4 After shifting outboard into gear, advance the lever further to in-
crease speed.
Stopping The Engine
5
Reduce engine speed and shift outboard to neutral position. Turn
ignition key to OFF position.

Mercury XR2 Specifications

General

MODEL	XR2
Horsepower	180 (134kw)
Propshaft Kilowatts1	194
Full Throttle RPM Range	6000-7000
Idle RPM in Forward Gear	650-750
Maximum Timing	25° BTDC
Idle Speed Pickup Timing	2° ATDC
Gear Ratio	1.87:1
Piston Displacement	122 cu. in. (2.0L/1998cc)
Bore	3.125 in. (79.5 mm)
Stroke	2.65 in. (67 mm)
Firing Order	1-2-3-4-5-6
Recommended Spark Plug	NGK-BUHW (P/N 33-97180)
Fuel Pressure	5 - 6 psi
Recommended Gasoline	Refer to Fuel Section
Recommended Oil	Refer to Fuel Section
Recommended Gear Case Oil	Quicksilver Hi-Performance Gear Lube (92-816026A4)
Gear Case Lubricant Ca- pacity	22.5 fl. oz. (666 ml)
Charging System Output	16 amps @ 7000 RPM
Battery Rating	Minimum reserve capacity rating of 100 minutes and CCA of 350
Water Pres. @ WOT	15 PSI (103.4 kPa)

Weight and Dimensions

Weight	350 lbs. (159 kg)
Transom Height	Short Shaft = 15” (381mm) Long Shaft = 20” (508mm)
